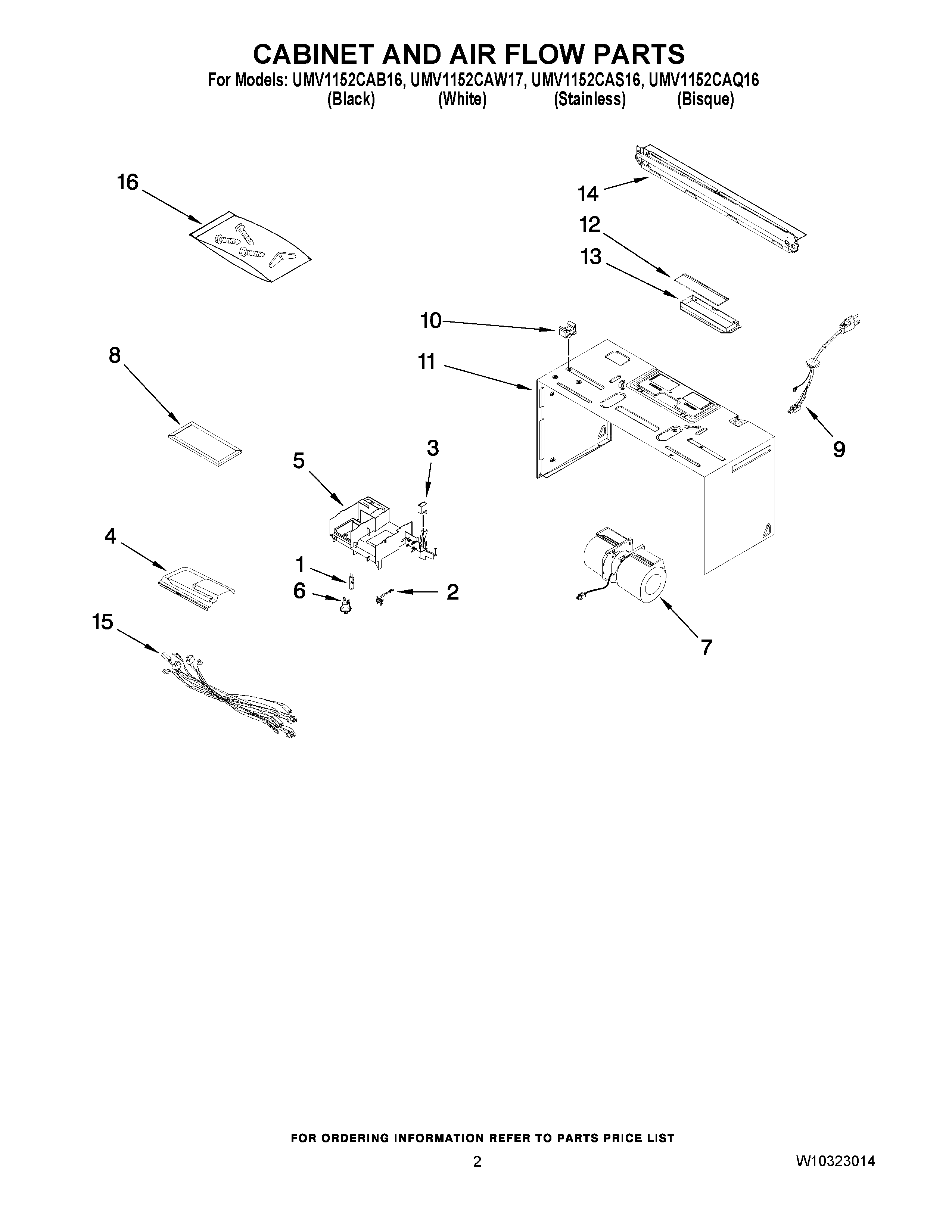

UMV1152CAQ16 02 – CABINET AND AIR FLOW PARTS

Products

Position	Product
NI	TEMPLATE, WALL
NI	TEMPLATE, TOP
1	LAMP
2	HOLDER, LAMP
3	CAPACITOR, MOTOR
4	BRACKET, DUCT (U)
5	ASSY, DUCT UPPER
6	THERMOSTAT
7	MOTOR, FAN ASSY
8	FILTER, CHARCOAL
9	CORD, POWER
10	HOLDER NUT, ASSY
11	CASE, OUTER (BISQUE)
11	CASE, OUTER (WHITE)
11	CASE, OUTER (BLACK, SS MODEL)
12	DAMPER, ASSEMBLY
13	PLATE, DAMPER
14	PLATE, MOUNTING
15	MAIN HARNESS
16	INSTALL, HARDWARE
