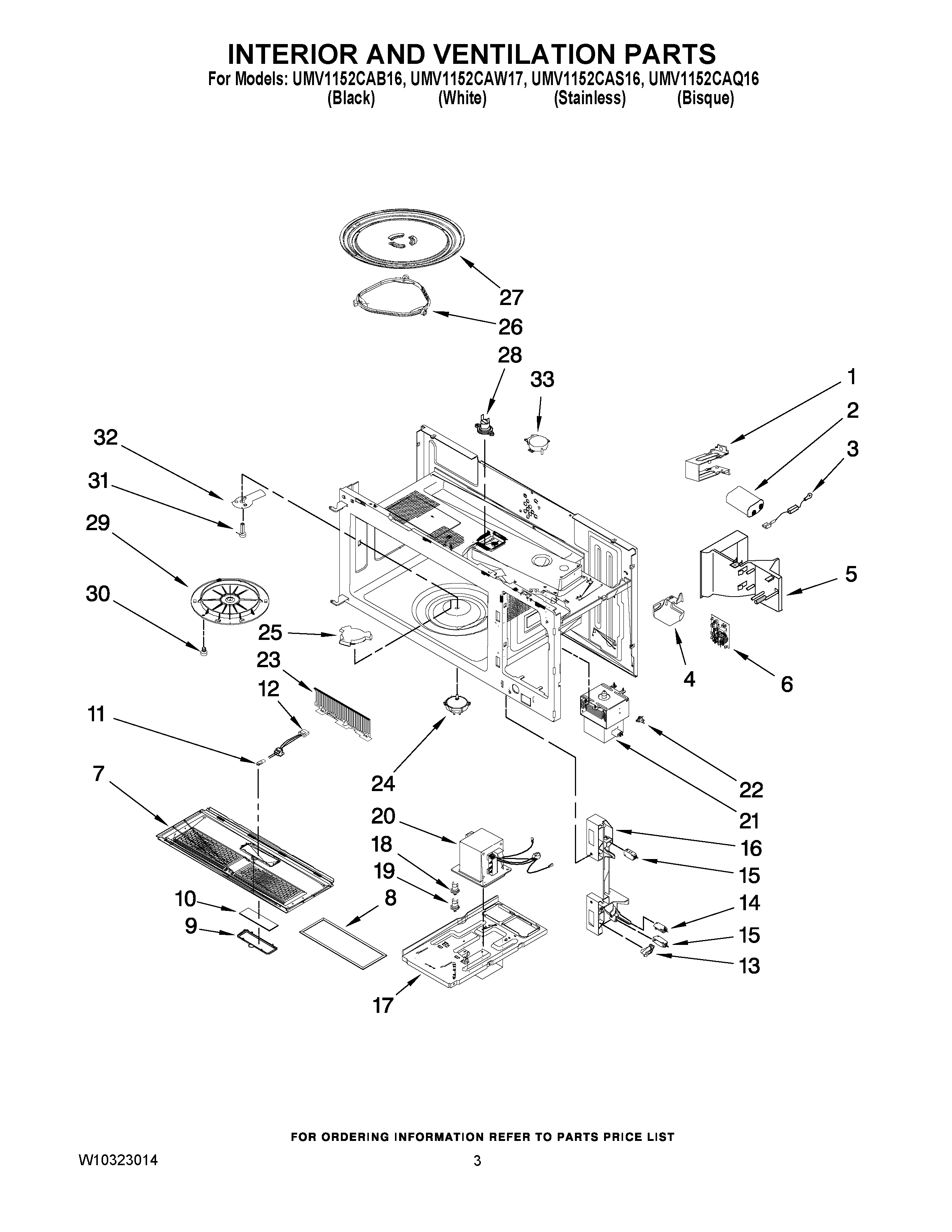

UMV1152CAW17 03 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:57:38+00:00UMV1152CAW17 03 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, CAPACITOR |
| 2 | CAPACITOR |
| 3 | H.V. DIODE CABLE |
| 4 | GUIDE-AIR |
| 5 | GUIDE, SUCTION |
| 6 | FILTER, NOISE |
| 7 | PLATE, BOTTOM (BLACK) |
| 7 | PLATE, BOTTOM (WHITE) |
| 8 | AIR, FILTER |
| 9 | HOLDER, GLASS (BLACK) |
| 9 | HOLDER, GLASS (WHITE) |
| 10 | GLASS, LAMP |
| 11 | LAMP |
| 12 | HOLDER, LAMP |
| 13 | LEVER, SWITCH |
| 14 | SWITCH, MICRO |
| 15 | SWITCH, MICRO (125/250 VAC) |
| 16 | LATCH BOARD |
| 17 | PLATE, BASE |
| 18 | SW-THERMO |
| 19 | THERMOSTAT (2) |
| 20 | TRANSFORMER, H.V. |
| 21 | WPW10126786 Whirlpool Microwave Magnetron |
| 22 | THERMOSTAT |
| 23 | COVER, FRONT |
| 24 | MOTOR, TURNTABLE |
| 25 | COUPLER, GLIDER |
| 26 | GUIDE, TRAY |
| 27 | TRAY, COOKING |
| 28 | THERMOSTAT |
| 29 | COVER, STIRRER |
| 30 | BUTTON, LOCK |
| 31 | HOLDER, STIRRER |
| 32 | BLADE, STIRRER |
| 33 | MOTOR, DRIVE |
