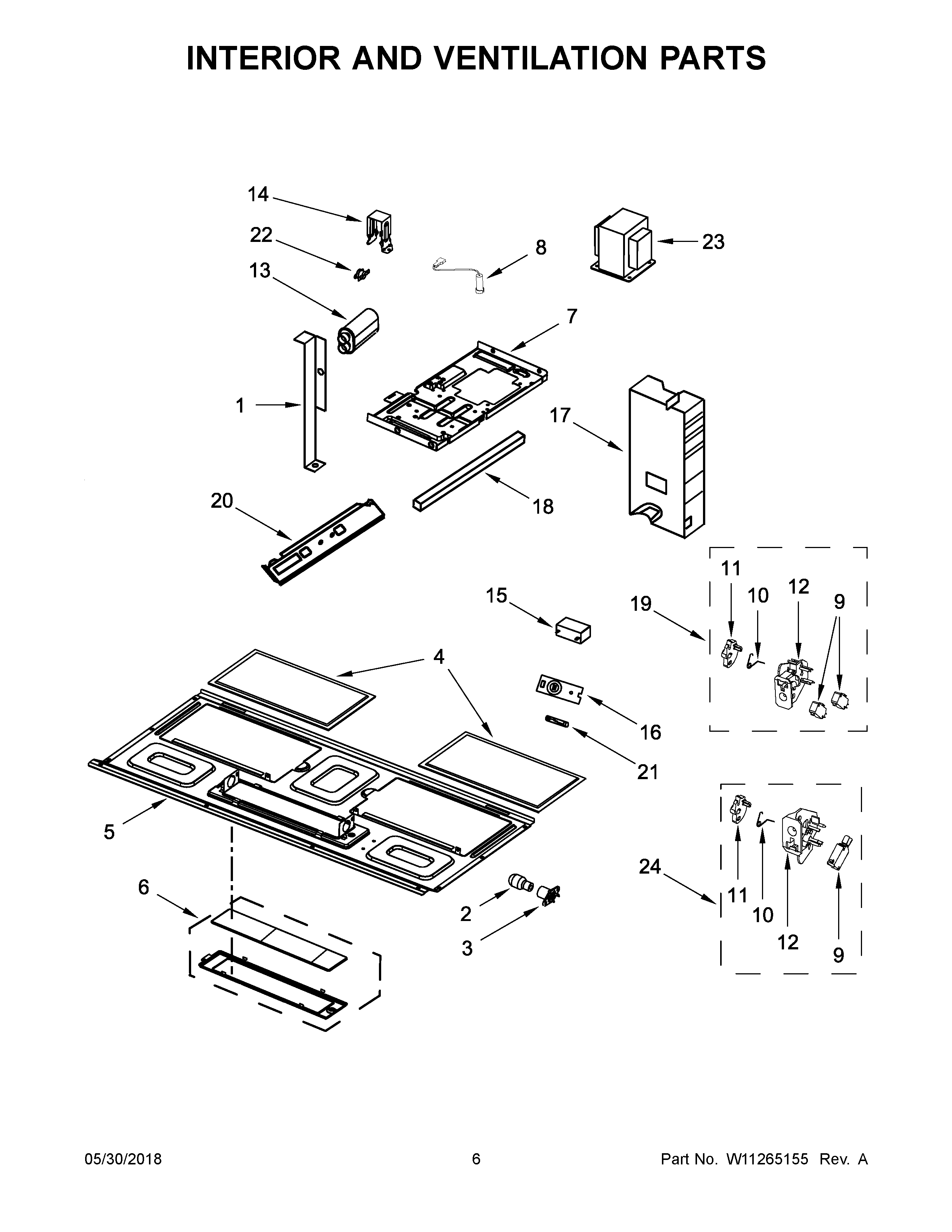

UMV1160CB4 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10313275 Whirlpool Microwave Support Bracket
2	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3	W10210871 Whirlpool Microwave Lamp Housing
4	W10208631A Whirlpool Microwave Grease Filter
5	W10245196 Whirlpool Microwave Base
6	COVR-LIGHT
7	W10269456 Whirlpool Microwave Base
8	W11256462 Whirlpool Microwave Diode
9	CABINET (NOT A SERVICEABLE PART)
10	W10156812 Whirlpool Spring
11	W10562613 Whirlpool Microwave Interlock Cam Assembly
12A	WPW10156813 Whirlpool Microwave Bottom Interlock Support
12	WP8206419 Whirlpool Microwave Top Interlock Support
13	CAPACTR-MG
14	W10532063 Whirlpool Microwave Bracket
15	W11405832 Whirlpool Microwave Capacitor
16	W10163422 Whirlpool Microwave Thermistor
17	W11302941 Whirlpool Microwave Side Cover
18	W11523261 Whirlpool Microwave Cushion
19	W11182140 Whirlpool Interlock Switch
20	W10904020 Whirlpool Base Assembly
21	FUSE-THRML
22	W10269232 Whirlpool Microwave Thermostat Fix
23	W10836753 Whirlpool Microwave Transformer
24	W11182141 Whirlpool Interlock Switch
