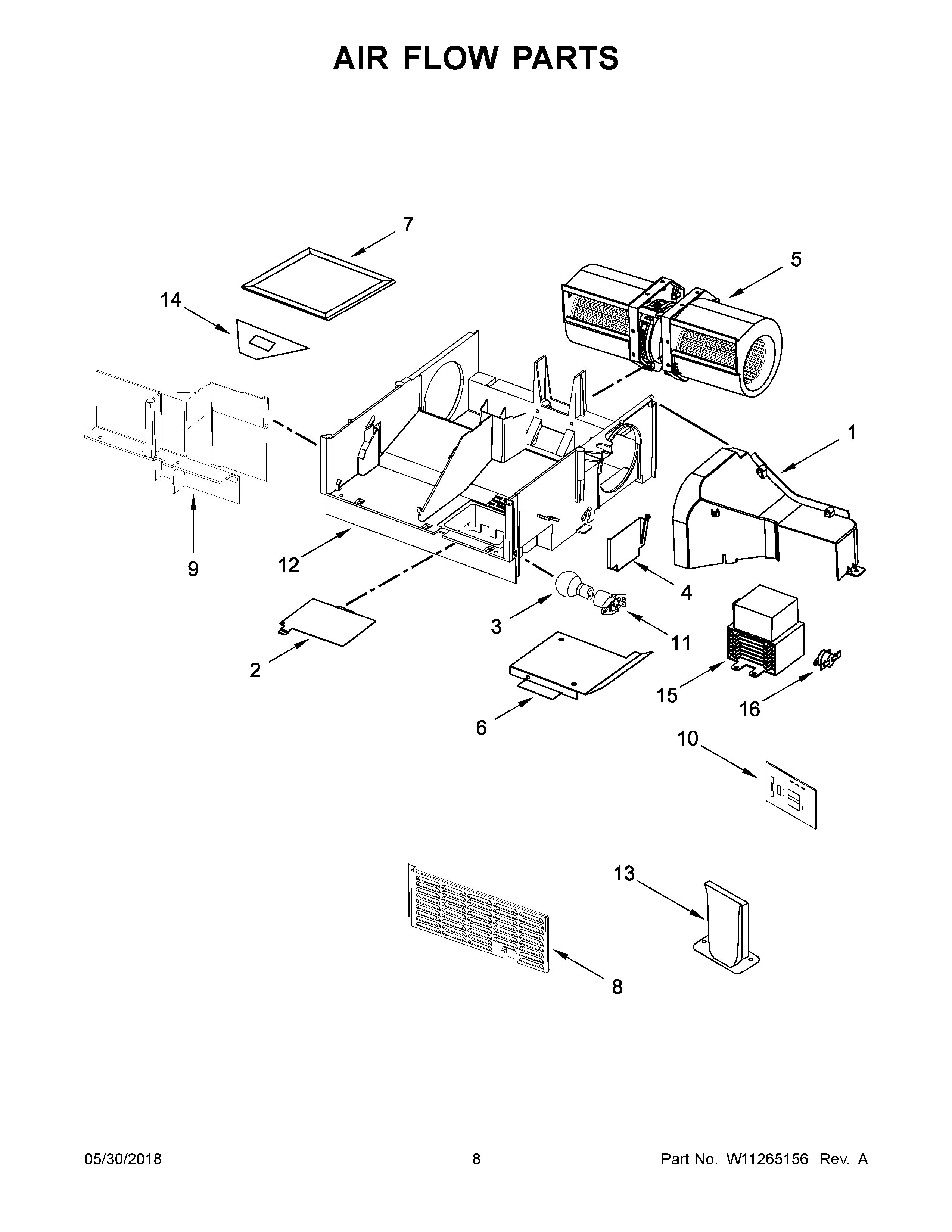

UMV1160CB5 05 – AIR FLOW PARTS

Products

Position	Product
1	W10471570 Whirlpool Microwave Deflector Assembly
2	8206382 Whirlpool Microwave Light Cover
3	8206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4	W11293488 Whirlpool Microwave Air Duct
5	W11441128 Whirlpool Microwave Fan Motor
6	W10138797 Whirlpool Microwave Duct Cover
7	8206230A Whirlpool Microwave Charcoal Filter
8	W10342991 Whirlpool Microwave Side Cover
9	PLATE, AIR GUIDE SEALING
10	W10422269 Whirlpool Microwave Filter
11	WPW10210878 Whirlpool Microwave LMP Housing
12	W10771886 Whirlpool HVAC Air Duct
13	W10770968 Whirlpool Plate
14	W10810142 Whirlpool Relief Strain
15	W10754299 Whirlpool Microwave Oven Magnetron
16	W10598693 Whirlpool Microwave Thermostat Fix
