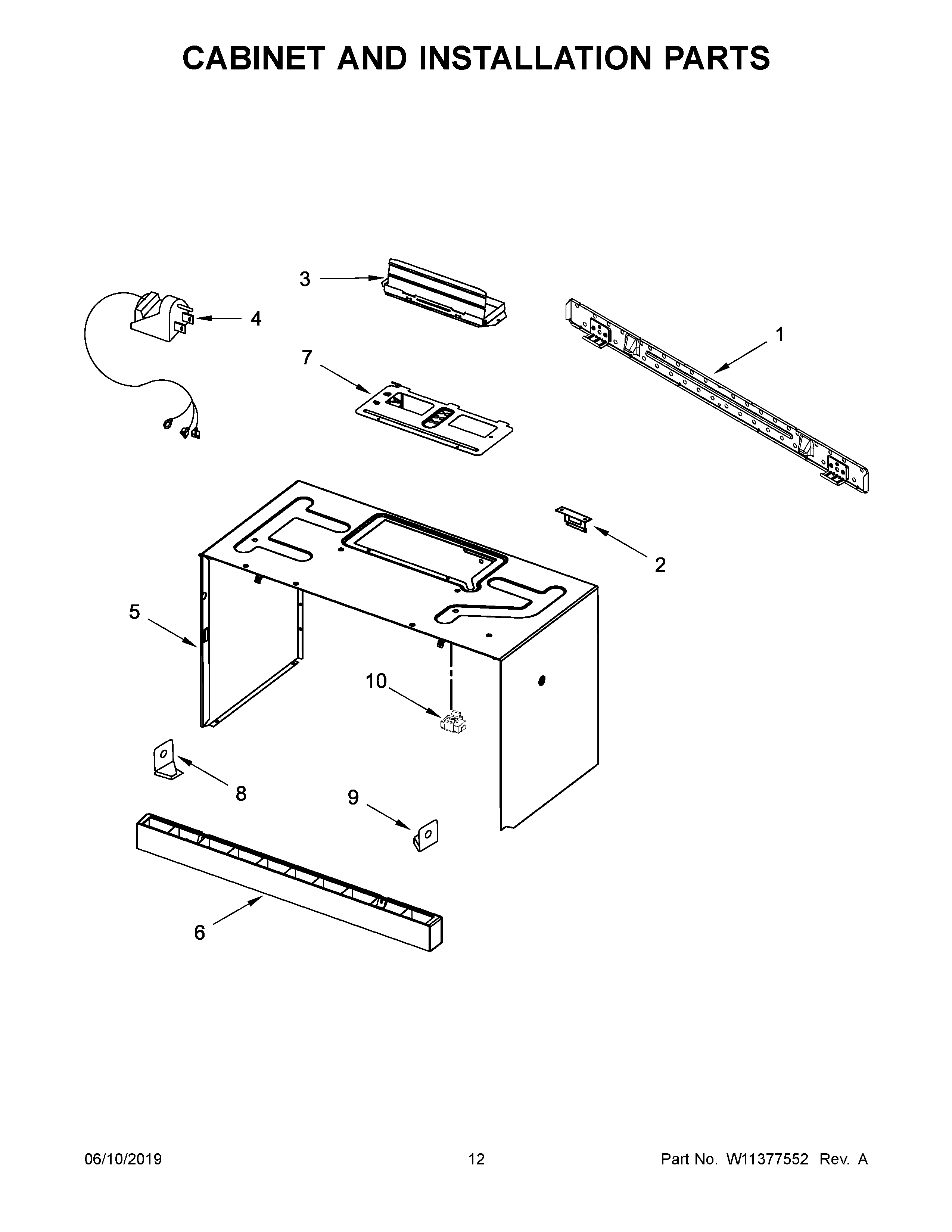

UMV1160CB7 07 – CABINET AND INSTALLATION PARTS

UMV1160CB7 07 – CABINET AND INSTALLATION PARTS

Written by

in

UMV1160CB7 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIWP8169704 Whirlpool Screw
NIW11459357 Whirlpool Microwave Wire Harness
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & SPANISH)
NIW10821385 Whirlpool Hardware Kit
NIW10539840 Whirlpool Microwave Wire Harness
NIW10190018 Whirlpool Microwave Template
NIW10498567 Whirlpool Microwave Wire Harness
1W11025649 Whirlpool Microwave Mounting Plate
28206385 Whirlpool Microwave Wire Clip
3W10843943 Whirlpool Microwave Vent Damper
4W10708076 Whirlpool Microwave Power Cord
5W11256457 Whirlpool Microwave Cabinet Wrapper
5AW11256458 Whirlpool Microwave Cabinet Wrapper
6W10245217 Whirlpool Microwave Vent Grill
6BW10245216 Whirlpool Microwave Vent Grille
6AW10245218 Whirlpool Microwave Vent Grille
7COVER, FAN MOTOR
8AW11026306 Whirlpool Microwave Mounting Bracket
8W10830163 Whirlpool Microwave Mounting Bracket
9AW10703282 Whirlpool Microwave Mounting Bracket
9W10810989 Whirlpool Microwave Mounting Bracket
10W11122643 Whirlpool Nut
