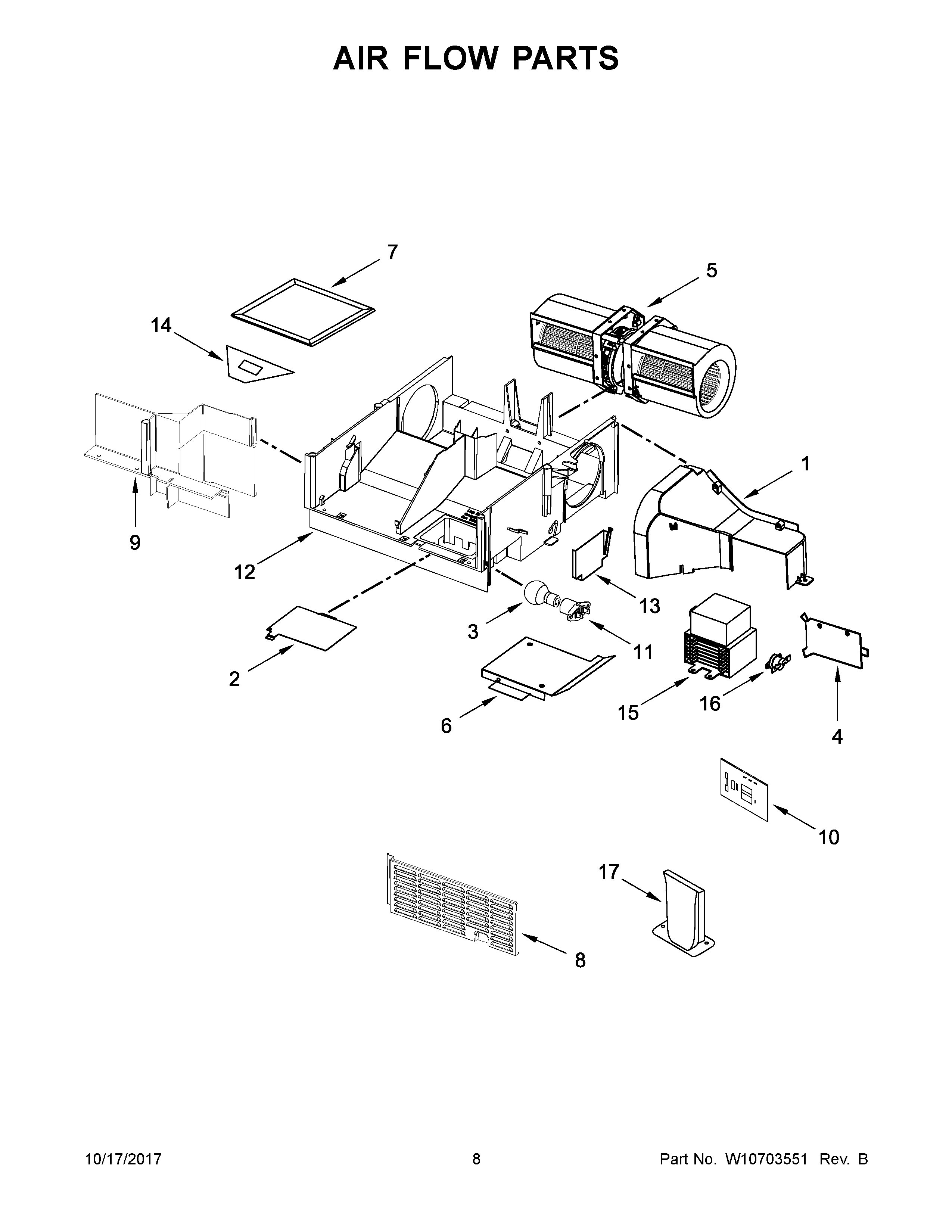

UMV1160CS0 05 – AIR FLOW PARTS

UMV1160CS0 05 – AIR FLOW PARTS

Written by

in

UMV1160CS0 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W10313274 Whirlpool Microwave Mounting Bracket
5W11441128 Whirlpool Microwave Fan Motor
6W10138797 Whirlpool Microwave Duct Cover
78206230A Whirlpool Microwave Charcoal Filter
8W10342991 Whirlpool Microwave Side Cover
9W10448769 Whirlpool Air Guide
10W10422269 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12W10448773 Whirlpool Microwave Air Duct
13W10269469 Whirlpool Microwave Duct Cover
14SOCKET, MOTOR WIRE
15W10754299 Whirlpool Microwave Oven Magnetron
16W10598693 Whirlpool Microwave Thermostat Fix
17W11381953 Whirlpool Microwave Plate
