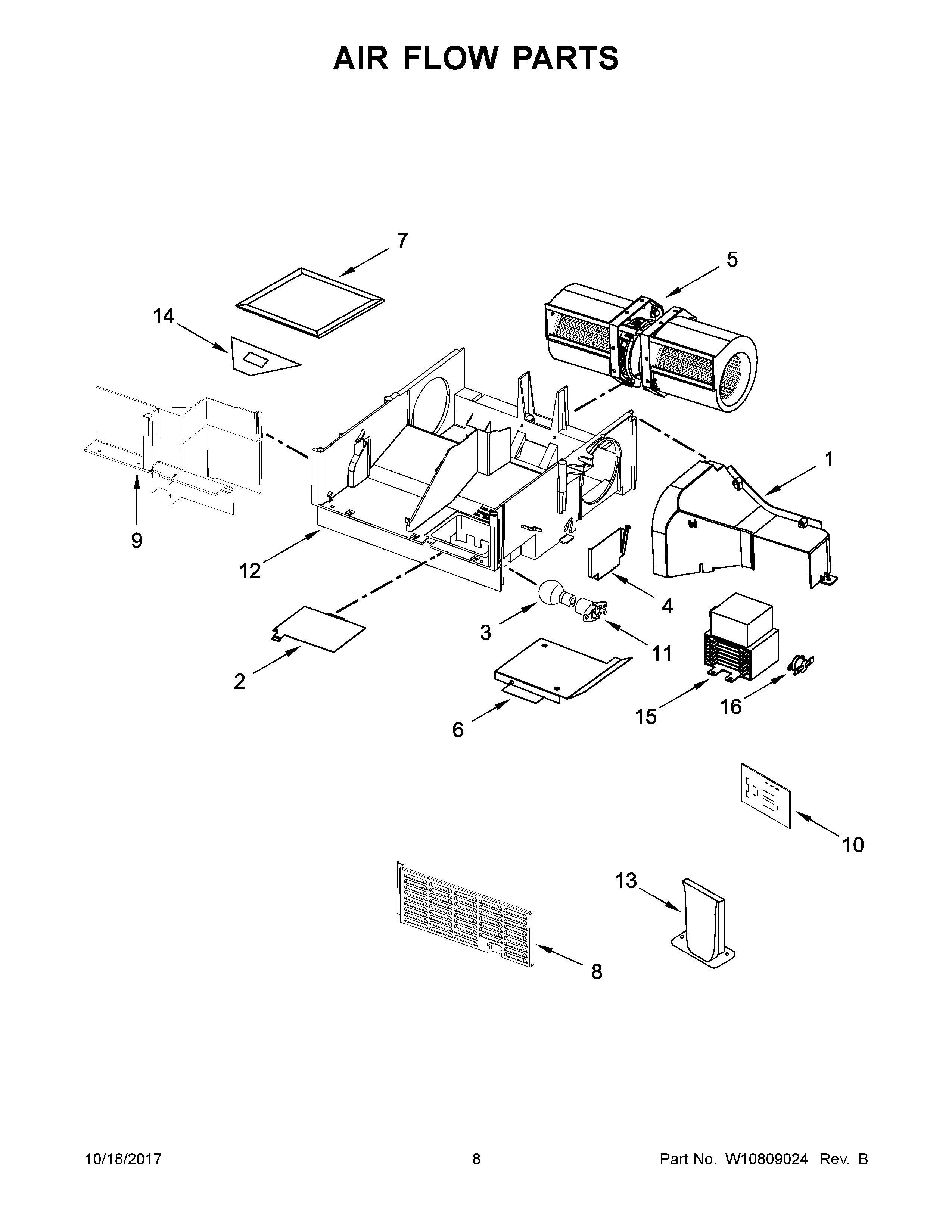

UMV1160CW2 05 – AIR FLOW PARTS

UMV1160CW2 05 – AIR FLOW PARTS

Written by

in

UMV1160CW2 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
38206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
4W11293488 Whirlpool Microwave Air Duct
5W11441128 Whirlpool Microwave Fan Motor
6W10138797 Whirlpool Microwave Duct Cover
78206230A Whirlpool Microwave Charcoal Filter
8W10342991 Whirlpool Microwave Side Cover
9PLATE, AIR GUIDE SEALING
10W10422269 Whirlpool Microwave Filter
11WPW10210878 Whirlpool Microwave LMP Housing
12W10771886 Whirlpool HVAC Air Duct
13W10770968 Whirlpool Plate
14SOCKET, MOTOR WIRE
15WPW10693025 Whirlpool Microwave Magnetron
16W10598693 Whirlpool Microwave Thermostat Fix
