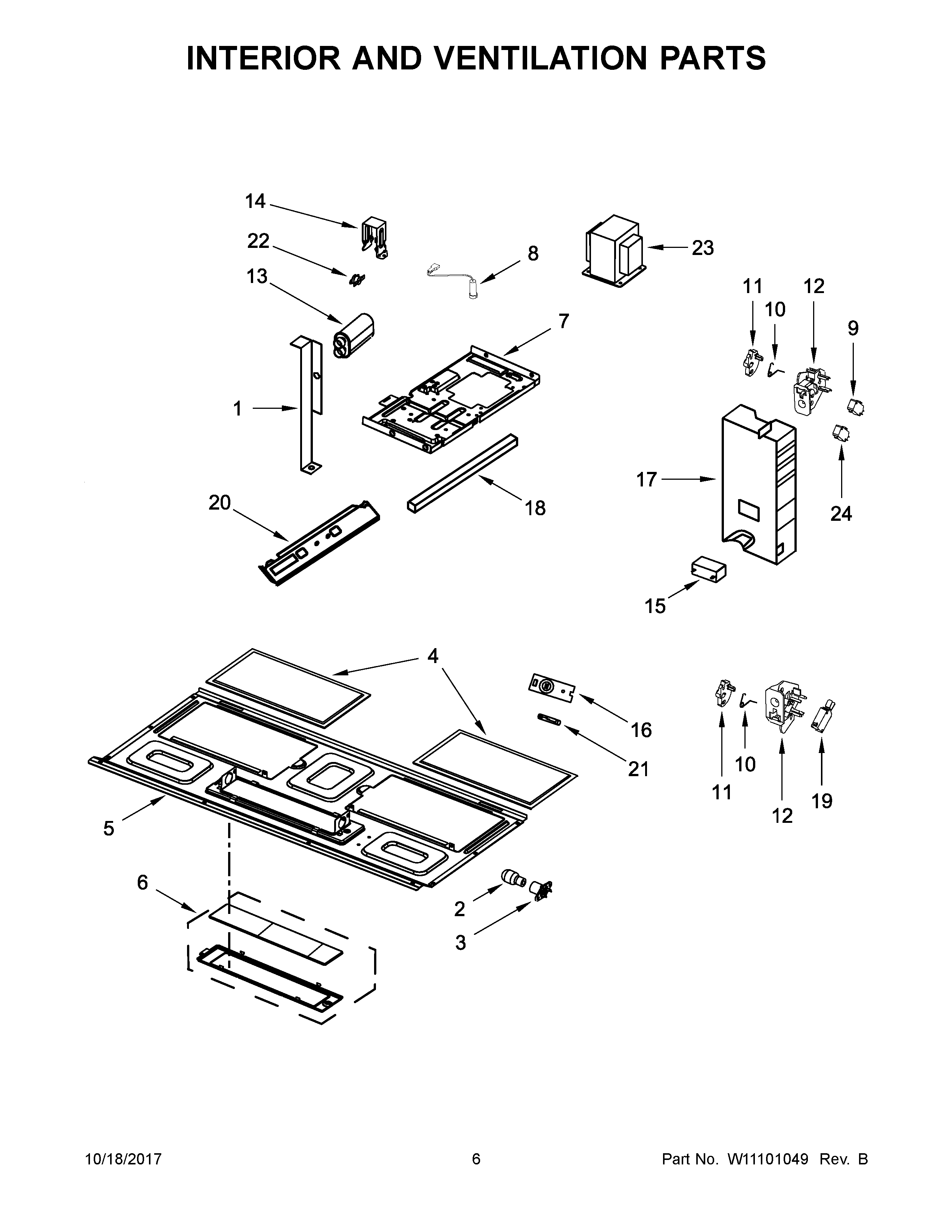

UMV1160CW3 04 – INTERIOR AND VENTILATION PARTS

UMV1160CW3 04 – INTERIOR AND VENTILATION PARTS

Written by

in

UMV1160CW3 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W10313275 Whirlpool Microwave Support Bracket
28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
3W10210871 Whirlpool Microwave Lamp Housing
4W10208631A Whirlpool Microwave Grease Filter
5W10245196 Whirlpool Microwave Base
6COVR-LIGHT
7W10269456 Whirlpool Microwave Base
8W11256462 Whirlpool Microwave Diode
9W10269458 Whirlpool Microwave Door Switch
10W10156812 Whirlpool Spring
11W10562613 Whirlpool Microwave Interlock Cam Assembly
12WP8206419 Whirlpool Microwave Top Interlock Support
12AWPW10156813 Whirlpool Microwave Bottom Interlock Support
13CAPACTR-MG
14W10532063 Whirlpool Microwave Bracket
15W11405832 Whirlpool Microwave Capacitor
16W10163422 Whirlpool Microwave Thermistor
17W11302941 Whirlpool Microwave Side Cover
18W11523261 Whirlpool Microwave Cushion
19W10269460 Whirlpool Microwave Door Switch
20W10476124 Whirlpool Microwave Base
21FUSE-THRML
22W10269232 Whirlpool Microwave Thermostat Fix
23W10836753 Whirlpool Microwave Transformer
24W10727360 Whirlpool Microwave Door Switch
