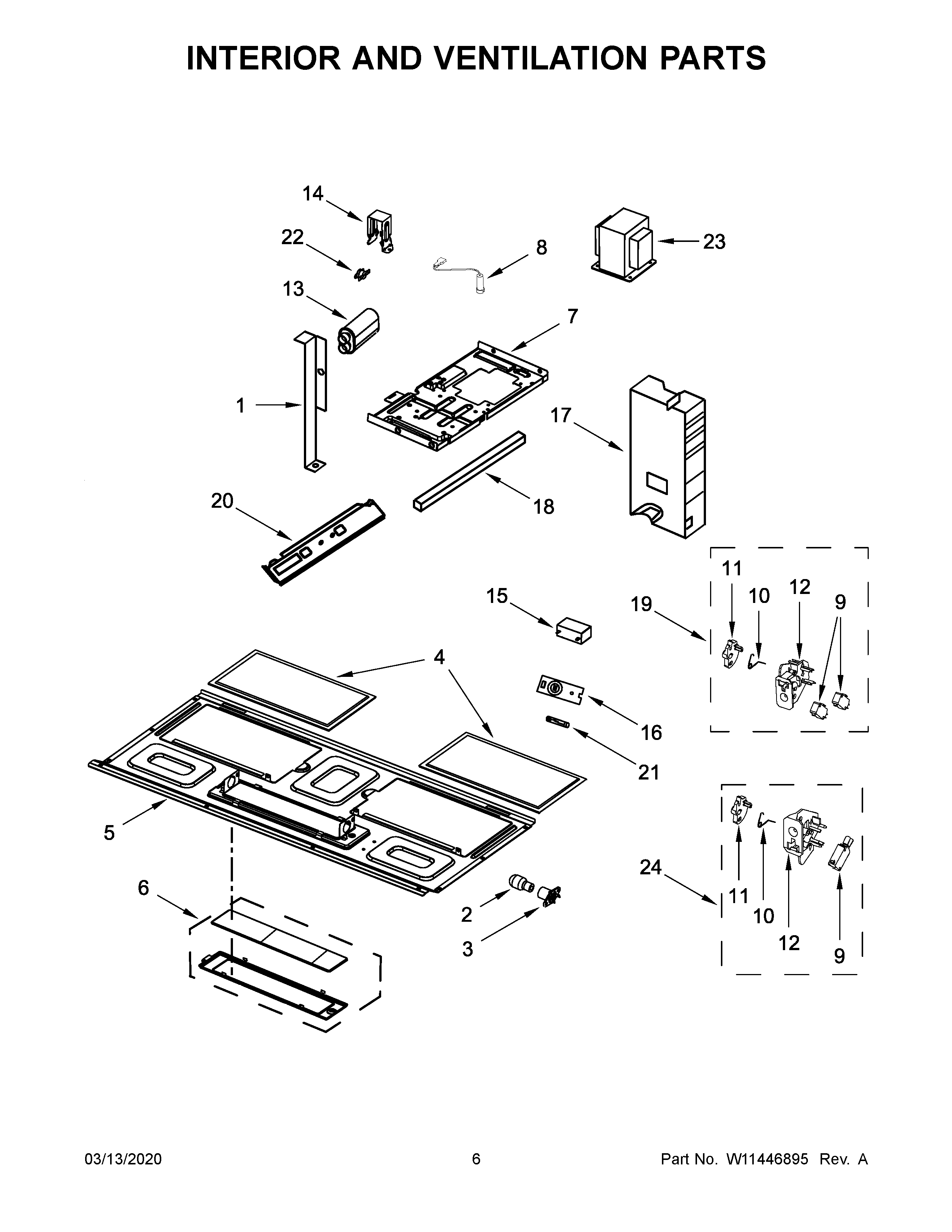

UMV1160CW8 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T12:56:05+00:00UMV1160CW8 04 – INTERIOR AND VENTILATION PARTS ProductsPositionProduct1W10313275 Whirlpool Microwave Support Bracket28206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb3W10210871 Whirlpool Microwave Lamp Housing4W10208631A Whirlpool Microwave Grease Filter5W10245196 Whirlpool Microwave Base6COVR-LIGHT7W10269456 Whirlpool Microwave Base8W11256462 Whirlpool Microwave Diode9CABINET (NOT A SERVICEABLE PART)10W10156812 Whirlpool Spring11W10562613 Whirlpool Microwave Interlock Cam Assembly12AWPW10156813 Whirlpool Microwave Bottom Interlock Support12WP8206419 Whirlpool Microwave Top Interlock Support13CAPACTR-MG14W11265233 Whirlpool Cap Carrier Bracket15W11405832 Whirlpool Microwave Capacitor16W10163422 Whirlpool Microwave Thermistor17W11302941 Whirlpool Microwave Side Cover18W11523261 Whirlpool Microwave Cushion19W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN18720W10904020 Whirlpool Base Assembly21FUSE-THRML22W10269232 Whirlpool Microwave Thermostat Fix23W10836753 Whirlpool Microwave Transformer24LOWER INTERLOCK ASSY
