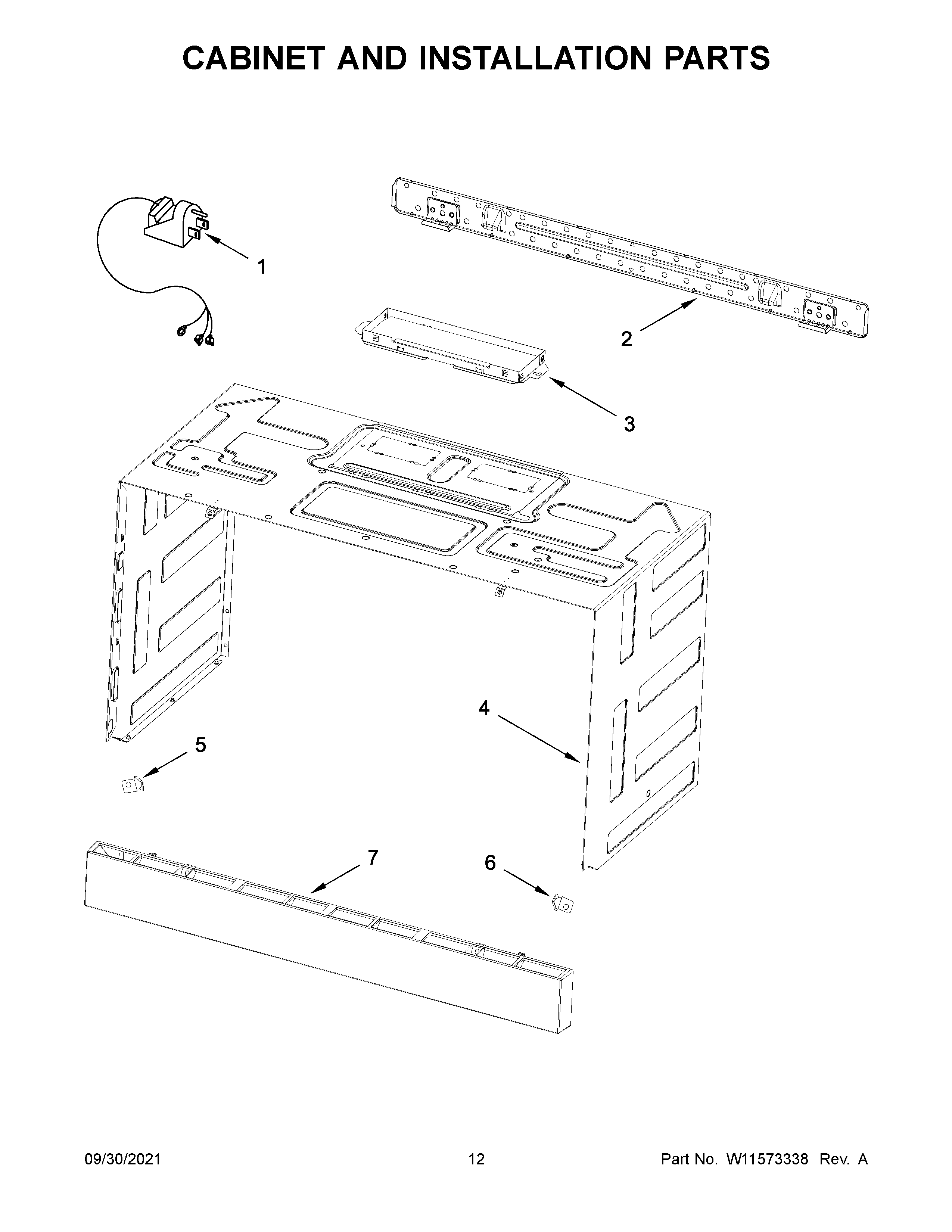

UMV1170LB0 07 – CABINET AND INSTALLATION PARTS

Products

Position	Product
NI	W10190018 Whirlpool Microwave Template
NI	W10821385 Whirlpool Hardware Kit
NI	W11690869 Whirlpool Wire Harness
NI	W11301790 Whirlpool Microwave Wire Harness
1	W10708076 Whirlpool Microwave Power Cord
2	W11025649 Whirlpool Microwave Mounting Plate
3	W10843943 Whirlpool Microwave Vent Damper
4A	W11574179 Whirlpool Cabinet Wrapper
4	CASE, OUTER (WHITE)
5	W10703282 Whirlpool Microwave Mounting Bracket
5A	W10810989 Whirlpool Microwave Mounting Bracket
6	W11026306 Whirlpool Microwave Mounting Bracket
6A	W10830163 Whirlpool Microwave Mounting Bracket
7	GRILLE, VENT (WHITE)
7A	GRILLE, VENT (BLACK)
7B	GRILLE, VENT (STAINLESS)
