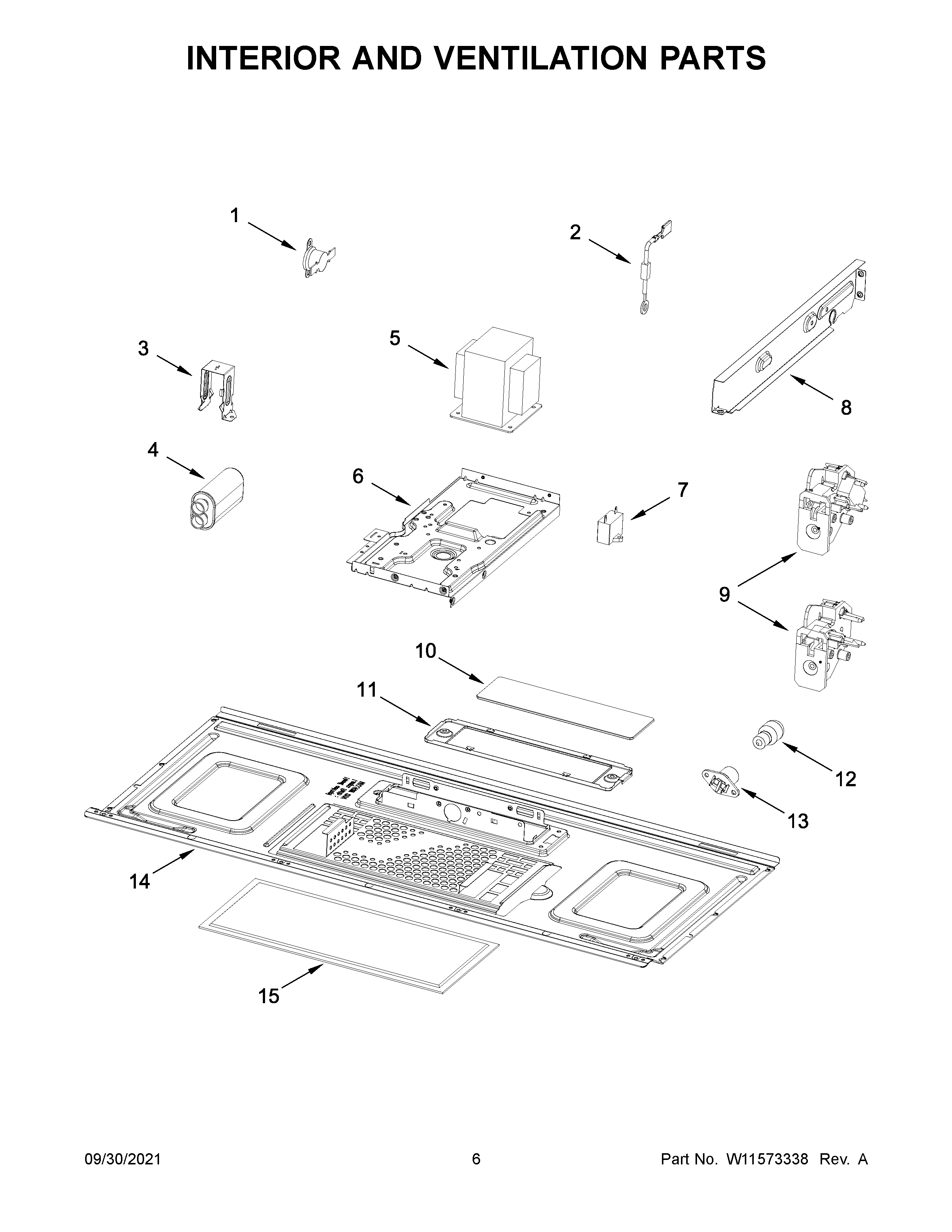

UMV1170LS00 04 – INTERIOR AND VENTILATION PARTS

UMV1170LS00 04 – INTERIOR AND VENTILATION PARTS

Written by

in

UMV1170LS00 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1W11574181 Whirlpool Thermostat Fix
2W11256462 Whirlpool Microwave Diode
3W10532063 Whirlpool Microwave Bracket
4CAPACTR-MG
5W11545871 Whirlpool Microwave Transformer
6W11520831 Whirlpool Base
7W11405830 Whirlpool Capacitor
8SUPPORT, NTC
9W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
10WPW10210875 Whirlpool Microwave Lamp Glass Cover
11HOLDER, GLASS
128206232A Whirlpool Microwave 40W 125V Incandescent Light Bulb
13W10210871 Whirlpool Microwave Lamp Housing
14W10245196 Whirlpool Microwave Base
15W10208631A Whirlpool Microwave Grease Filter
