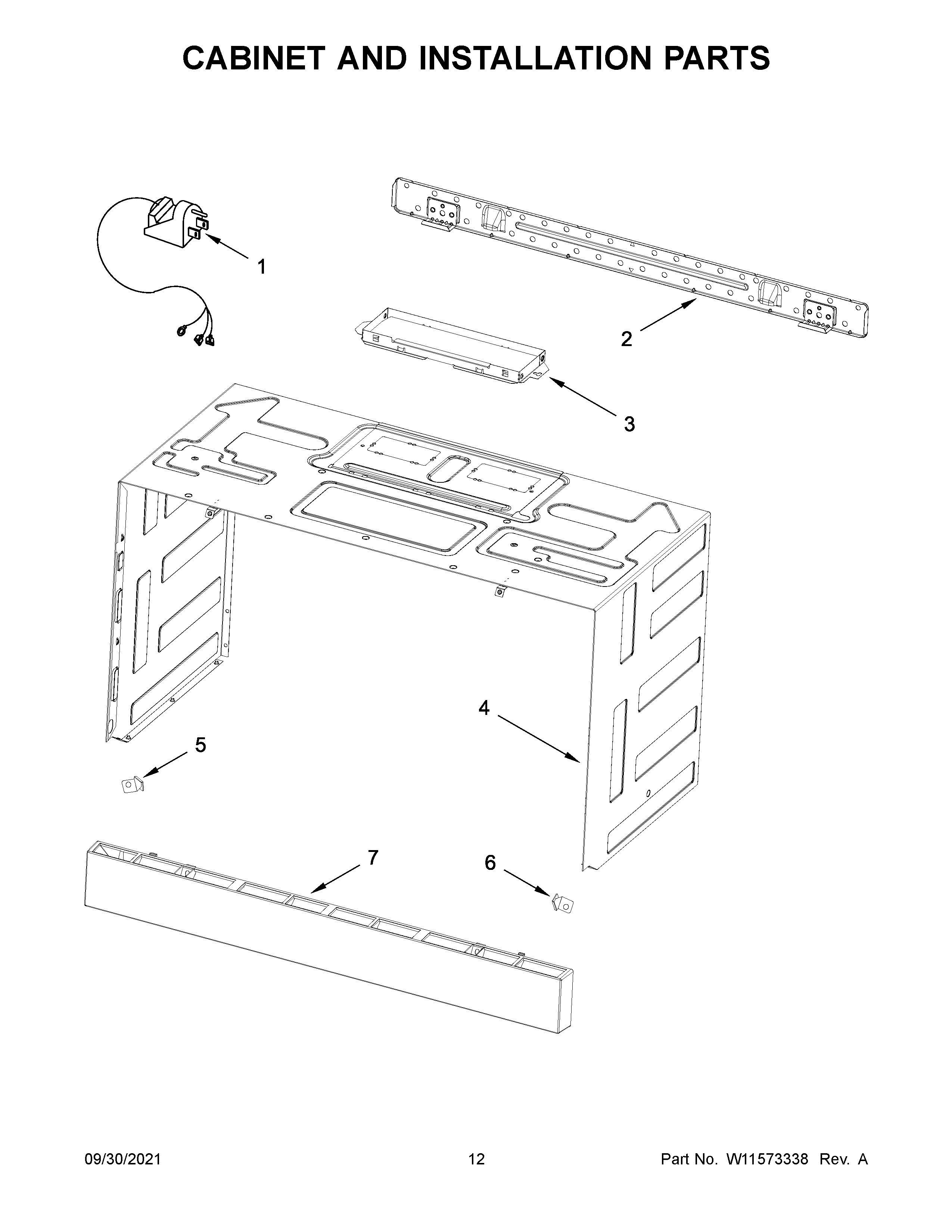

UMV1170LS00 07 – CABINET AND INSTALLATION PARTS

UMV1170LS00 07 – CABINET AND INSTALLATION PARTS

Written by

in

UMV1170LS00 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIW10190018 Whirlpool Microwave Template
NIW10821385 Whirlpool Hardware Kit
NIW11690869 Whirlpool Wire Harness
NIW11301790 Whirlpool Microwave Wire Harness
1W10708076 Whirlpool Microwave Power Cord
2W11025649 Whirlpool Microwave Mounting Plate
3W10843943 Whirlpool Microwave Vent Damper
4AW11574179 Whirlpool Cabinet Wrapper
4CASE, OUTER (WHITE)
5W10703282 Whirlpool Microwave Mounting Bracket
5AW10810989 Whirlpool Microwave Mounting Bracket
6W11026306 Whirlpool Microwave Mounting Bracket
6AW10830163 Whirlpool Microwave Mounting Bracket
7GRILLE, VENT (WHITE)
7AGRILLE, VENT (BLACK)
7BGRILLE, VENT (STAINLESS)
