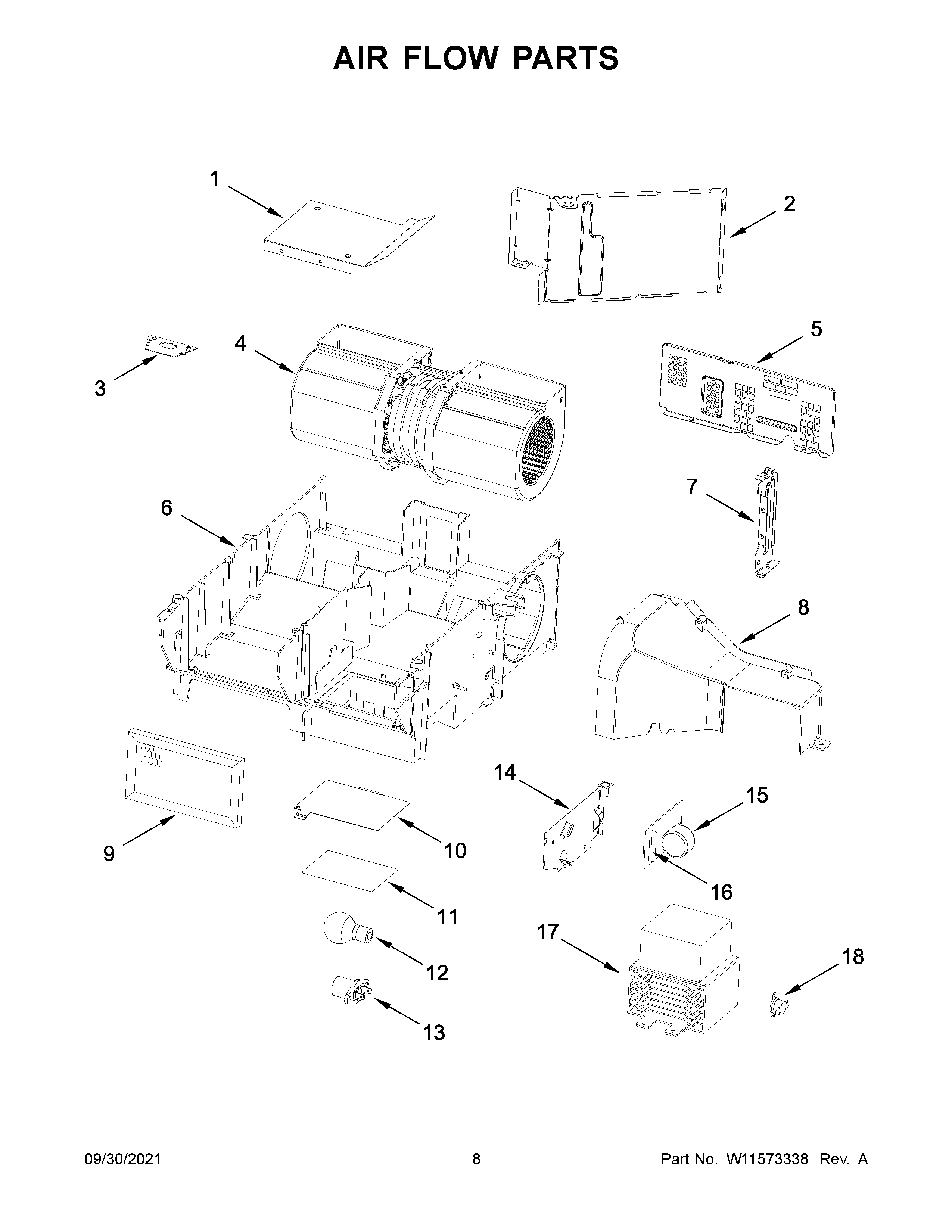

UMV1170LW00 05 – AIR FLOW PARTS

Products

Position	Product
1	W10138797 Whirlpool Microwave Duct Cover
2	W10827148 Whirlpool Air Guide
3	W10810142 Whirlpool Relief Strain
4	W11441128 Whirlpool Microwave Fan Motor
5	W11520832 Whirlpool Side Cover
6	W10828030 Whirlpool Microwave Air Duct
7	W10313275 Whirlpool Microwave Support Bracket
8	W10471570 Whirlpool Microwave Deflector Assembly
9	W10892387 Whirlpool Microwave Charcoal Filter
10	8206382 Whirlpool Microwave Light Cover
11	W10800392 Whirlpool Reflector Assembly
12	W11574182 Whirlpool Lamp Assembly
13	WPW10210878 Whirlpool Microwave LMP Housing
14	W11293488 Whirlpool Microwave Air Duct
15	W10422269 Whirlpool Microwave Filter
16	FUSE-THRML
17	W10754299 Whirlpool Microwave Oven Magnetron
18	W10832024 Whirlpool Microwave Thermostat Fix
