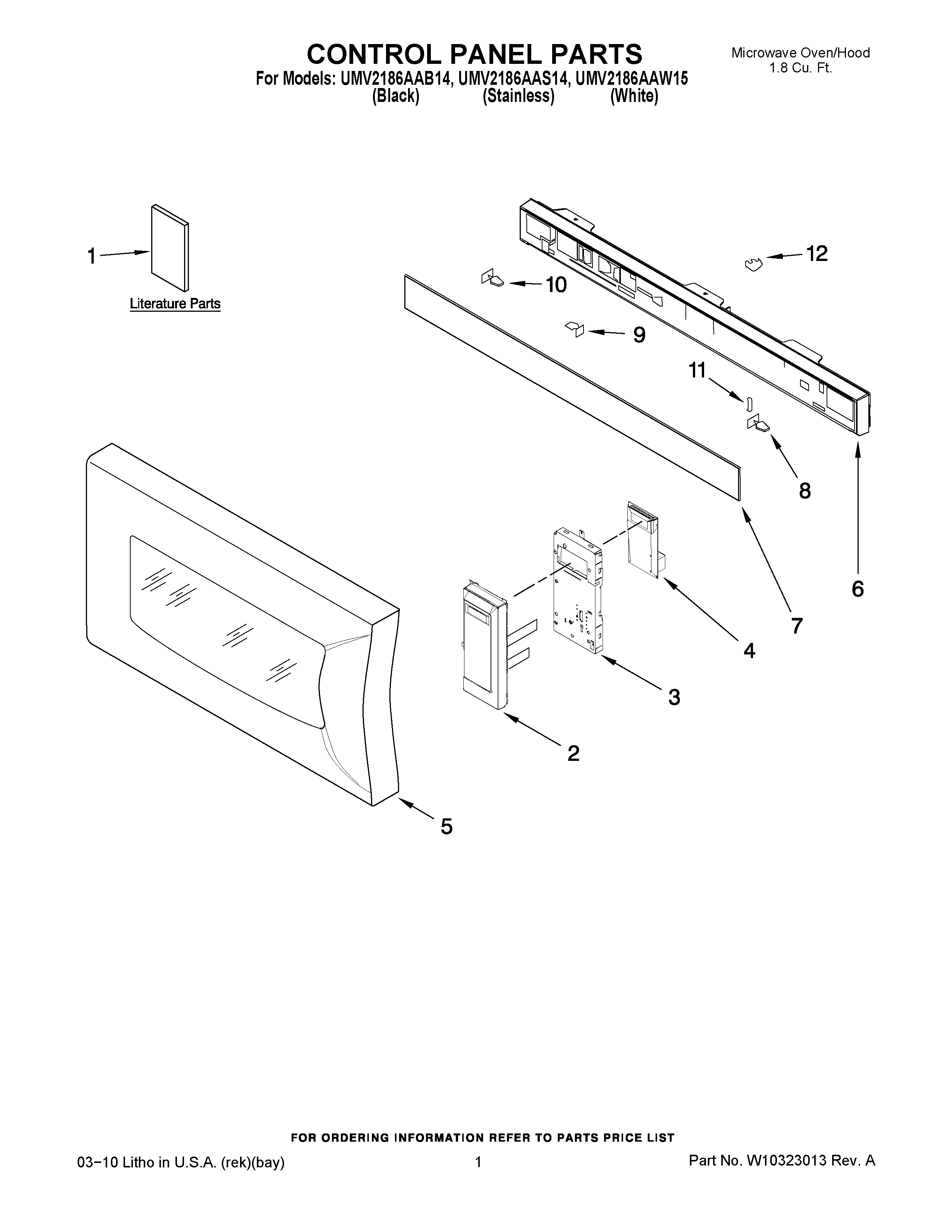

UMV2186AAB14 01 – CONTROL PANEL PARTS

UMV2186AAB14 01 – CONTROL PANEL PARTS

Written by

in

UMV2186AAB14 01 – CONTROL PANEL PARTS

Products

PositionProduct
1U & C GUIDE
2PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (WHITE)
2PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (BLACK)
2PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (STAINLESS)
3BRACKET, CONTROL
4MICROCOMPUTER
5COMPLETE DOOR (WHITE)
5COMPLETE DOOR (STAINLESS)
5COMPLETE DOOR (BLACK)
6FRAME, GRILLE (BLACK, SS MODEL)
6FRAME, GRILLE (WHITE)
7COVER, GRILLE (BLACK)
7COVER, GRILLE (WHITE)
7COVER, GRILLE (STAINLESS)
8HINGE, RIGHT
9HINGE, MIDDLE
10HINGE, LEFT
11SPRING, LOUVER
12EARTH, GRILLE
