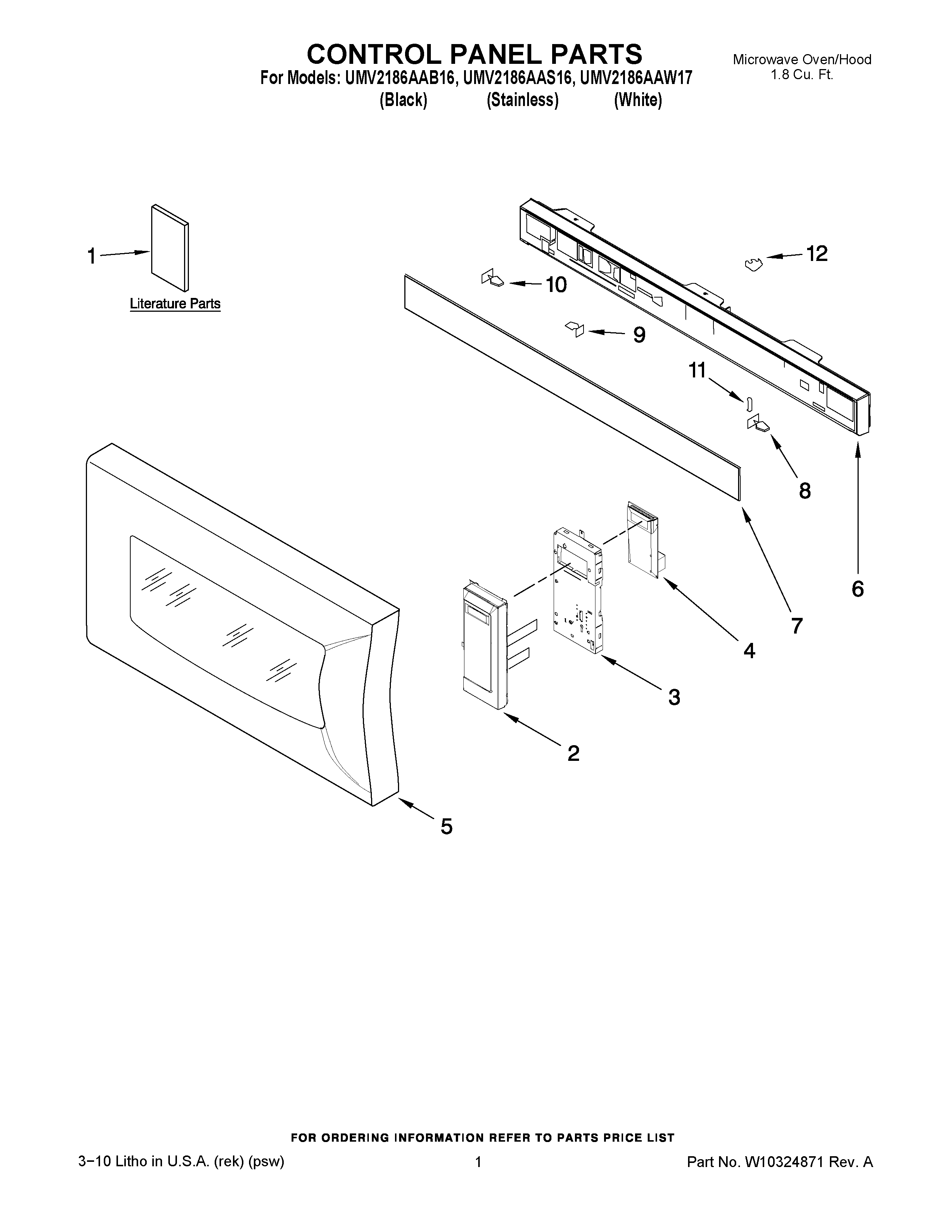

UMV2186AAB16 01 – CONTROL PANEL PARTSadmin2025-04-26T13:00:38+00:00UMV2186AAB16 01 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | U & C GUIDE |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (WHITE) |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (BLACK) |
| 2 | PANEL ASY, CONTROL MEMBRANE, LENS AND BRACKET (STAINLESS) |
| 3 | BRACKET, CONTROL |
| 4 | MICROCOMPUTER |
| 5 | COMPLETE DOOR (WHITE) |
| 5 | COMPLETE DOOR (STAINLESS) |
| 5 | COMPLETE DOOR (BLACK) |
| 6 | FRAME, GRILLE (BLACK, SS MODEL) |
| 6 | FRAME, GRILLE (WHITE) |
| 7 | COVER, GRILLE (BLACK) |
| 7 | COVER, GRILLE (WHITE) |
| 7 | COVER, GRILLE (STAINLESS) |
| 8 | HINGE, RIGHT |
| 9 | HINGE, MIDDLE |
| 10 | HINGE, LEFT |
| 11 | SPRING, LOUVER |
| 12 | EARTH, GRILLE |
