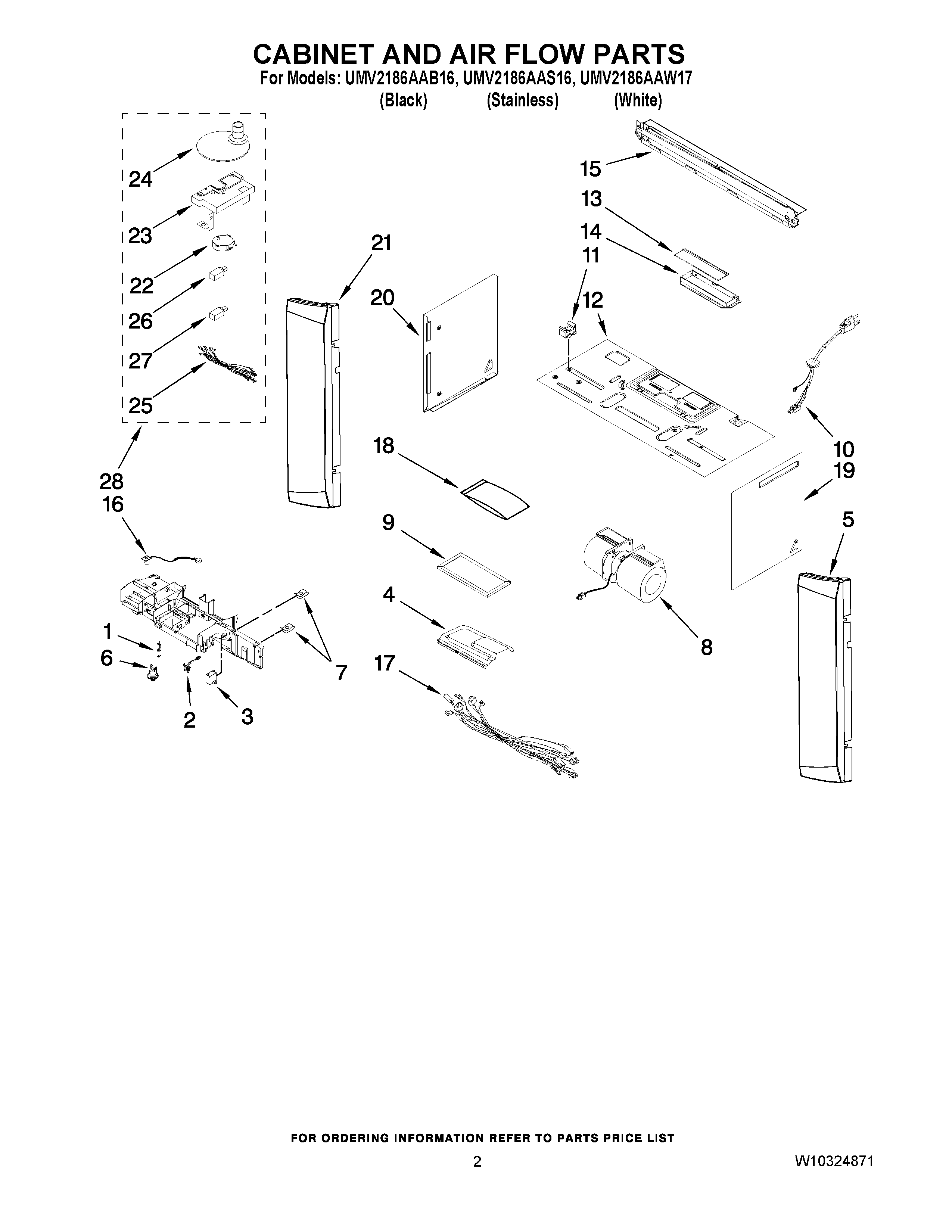

UMV2186AAW17 02 – CABINET AND AIR FLOW PARTS

UMV2186AAW17 02 – CABINET AND AIR FLOW PARTS

Written by

in

UMV2186AAW17 02 – CABINET AND AIR FLOW PARTS

Products

PositionProduct
NITEMPLATE, WALL
NITEMPLATE, TOP
1LAMP
2HOLDER, LAMP
3CAPACITOR, MOTOR
4BRACKET, DUCT (U)
5PANEL, D COR (RIGHT, BLACK)
5PANEL, D COR (RIGHT, WHITE)
6THERMOSTAT (2)
7NUT, MOUNTING
8MOTOR, FAN ASSY
9FILTER, CHARCOAL
10CORD, POWER
11HOLDER NUT, ASSY
12PANEL, TOP (WHITE)
12PANEL, TOP (BLACK, SS MODEL)
13DAMPER, ASSEMBLY
14PLATE, DAMPER
15PLATE, MOUNTING
16SENSOR, HUMIDITY
17MAIN HARNESS
18INSTALL, HARDWARE
19PANEL, RIGHT (BLACK, SS MODEL)
19PANEL, RIGHT (WHITE)
20PANEL, LEFT (BLACK, SS MODEL)
20PANEL, LEFT (WHITE)
21PANEL, D COR (LEFT, BLACK)
21PANEL, D COR (LEFT, WHITE)
22MOTOR, VENT
23PLATE, CAM
24CAM-LOUVER
25HARNESS, VENT
26SWITCH, MICRO
27SWITCH, MICRO
28ASSEMBLY, LOUVER
