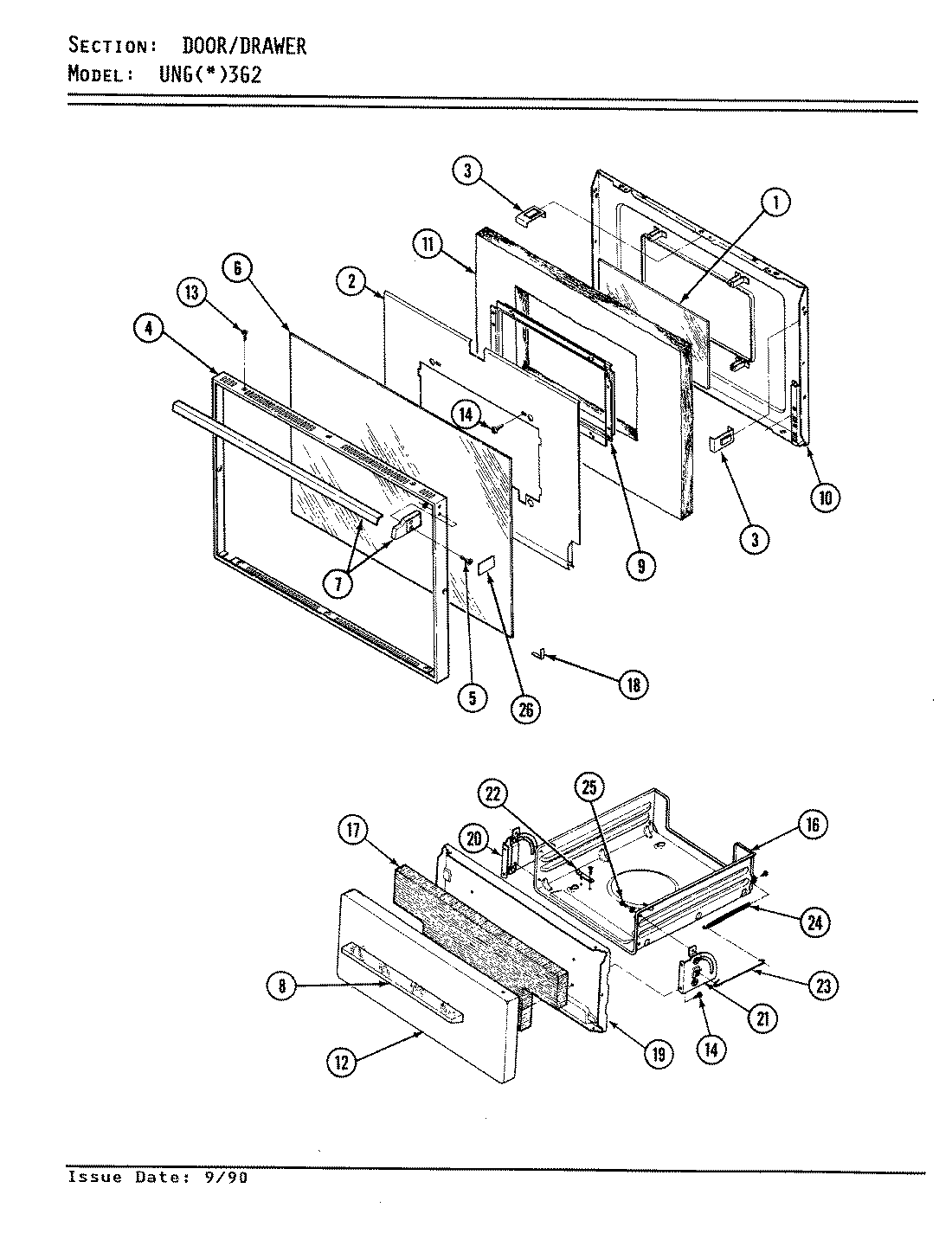

UNGA3G2NX 04 – DOOR/DRAWER

Products

Position	Product
NI	MAY 7208P011-60
1	MAY 7902P035-60
2	MAY 3601F094-51
3	CLIP, DOOR
4	MAY 7706P243-60
5	MAY 7101P123-60
6	MAY 7902P274-60
7	MAY 7701P047-60
8	MAY 7701P012-60
8	74002481 Whirlpool Screw
9	MAY 3603F013-80
10	MAY 2402W154-19
10	MAY 2402W154-23
11	MAY 7002P012-60
12	MAY 2416F025-74
12	MAY 2416F025-70
12	MAY 2416F025-71
13	WP7101P126-60 Whirlpool Screw
14	MAY 7101P061-60
16	MAY 3407W009-19
16	MAY 3407W009-23
16	MAY 7101P114-60
17	MAY 7002P002-60
18	MAY 8010P045-60
19	MAY 2404F021-19
19	MAY 7101P058-60
19	MAY 2404F021-23
20	MAY 3418A063-34
21	MAY 3418A062-34
22	MAY 8002P001-60
23	MAY 7807P001-60
24	MAY 7803P014-60
25	MAY 7101P076-60
25	MAY 7103P067-60
26	MAY 7728P012-60
