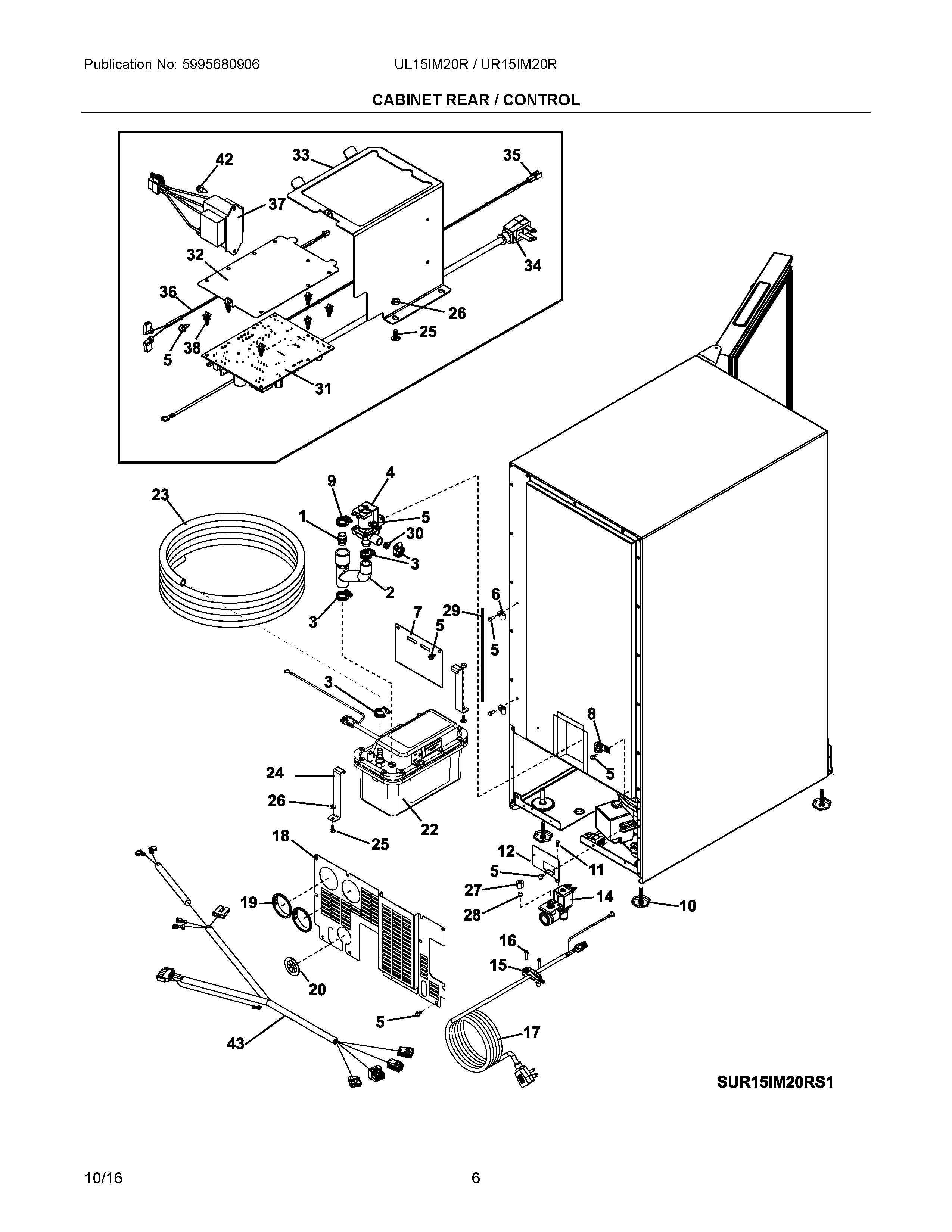

UR15IM20RS1 04 – CABINET REAR/CONTROL

Products

Position	Product
1	WCI 5304507947
2	WCI 5304507948
3	WCI 5304503818
4	WCI 5304507949
5	SCREW, HEX WASHER HEAD, #10 X 1/2"
6	WCI 5304503820
7	WCI 5304507952
8	WCI 5304507950
9	WCI 5304507953
10	LEG, LEVELER
11	WCI 5304503822
12	WCI 5304503823
14	WCI 5304503824
15	CLAMP, POWER CORD, W/SCREWS
16	WCI 5304503825
17	WCI 5304503826
18	WCI 5304503827
19	WCI 5304503828
20	GROMMET, HEYCO
22	WCI 5304503829
23	WCI 5304503830
24	WCI 5304503831
25	BOLT, CARRIAGE, #10-24 X 1/2"
26	NUT, HEX, #10-24
27	WCI 5304503832
28	WCI 5304503833
29	WCI 5304503834
30	WCI 5304507951
31	WCI 5304503835
32	WCI 5304503836
33	WCI 5304503837
34	5304503838 Frigidaire Refrigerator Cord
35	WCI 5304503839
36	5304507956 Frigidaire Harness
37	5304503841 Frigidaire Refrigerator Transformer
38	WCI 5304503842
42	WCI 5304503843
43	5304507957 Frigidaire Refrigerator Harness
