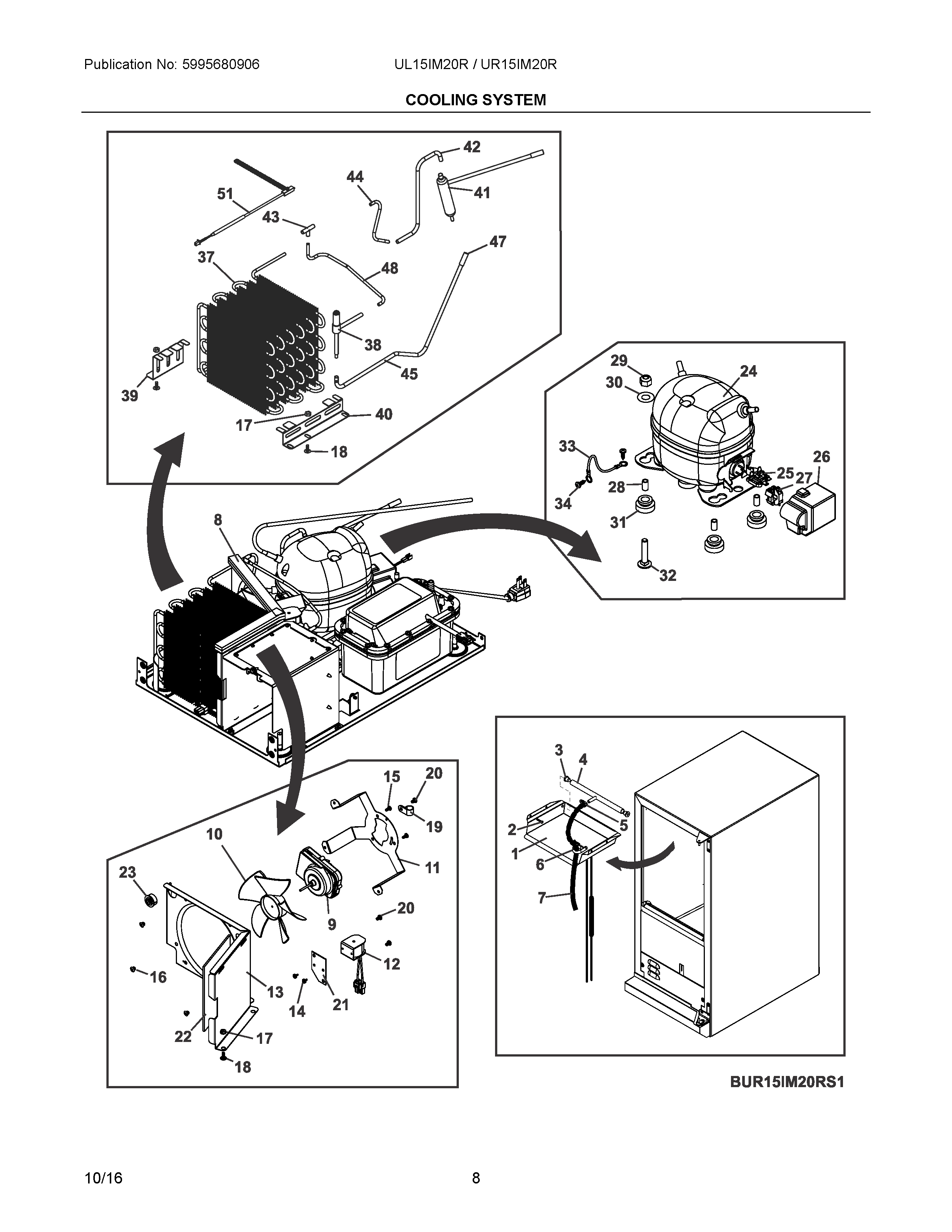

UR15IM20RS1 05 – COOLING SYSTEM

Products

Position	Product
NIA	WCI 5304507955
1	WCI 5304507954
2	WCI 5304503791
3	WCI 5304503847
4	WCI 5304503848
5	WCI 5304503849
6	WCI 5304503850
7	WCI 5304503851
8	PAD, FOAM
9	MOTOR, FAN
10	BLADE, FAN MOTOR
11	BRACKET, FAN MOTOR MTG.
12	5304503852 Frigidaire Refrigerator Solenoid
13	WCI 5304503853
14	WCI 5304503854
15	5304480396 Frigidaire Screw
16	WCI 5304503855
17	NUT, HEX, #10-24
18	BOLT, CARRIAGE, #10-24 X 1/2"
19	WCI 5304503856
20	WCI 5304503843
21	WCI 5304503857
22	WCI 5304503858
23	WCI 5304503859
24	WCI 5304503860
25	5304503861 Frigidaire Overload
26	WCI 5304503862
27	5304503863 Frigidaire Starter
28	SLEEVE
29	NUT, LOCK, 1/4-20 HEX
30	WASHER, FLAT
31	GROMMET
32	BOLT, CARRIAGE, 1/4-20 X 1-1/4"
33	WIRE, GROUND
34	SCREW, PH PAN HEAD, #8-21 X 1/4"
37	WCI 5304503866
38	WCI 5304503867
39	WCI 5304503868
40	WCI 5304503869
41	DRIER, FILTER
42	WCI 5304503870
43	WCI 5304503871
44	WCI 5304503872
45	WCI 5304503873
47	WCI 5304503874
48	WCI 5304503875
51	WCI 5304503878
