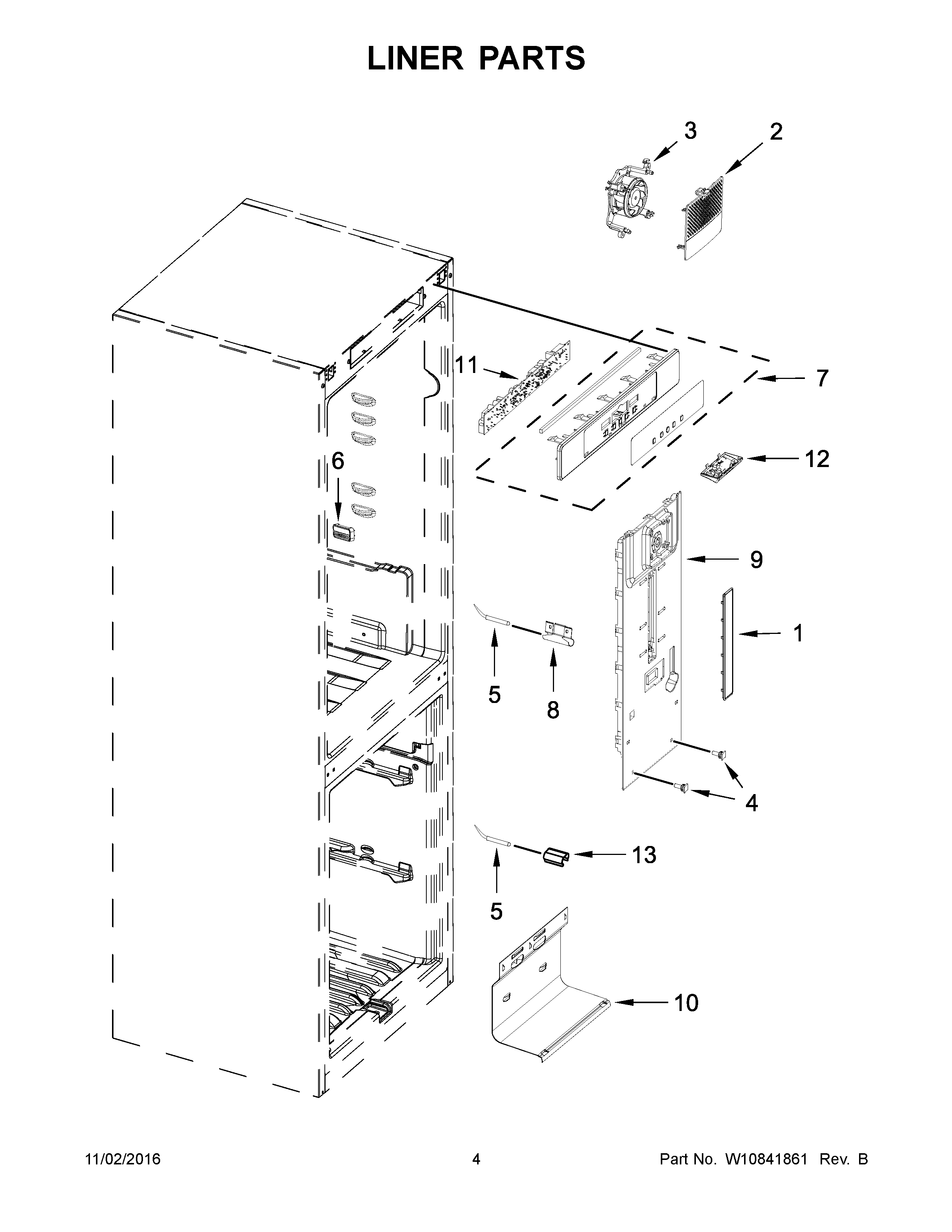

URB551WNEM0 03 – LINER PARTS

Products

Position	Product
1	PLUG, EVAPORATOR COVER
2	COVER, FAN
3	W10848956 Whirlpool Refrigerator Evaporator Motor
4	PLUG, ENDCAP
5	W10845802 Whirlpool Refrigerator Thermistor
6	W10726191 Whirlpool Refrigerator Cover
7	W10827244 Whirlpool Refrigerator Housing
8	HOLDER, SENSOR
9	COVER, EVAPORATOR (INCLUDES INSULATION)
10	MULTIFLOW
11	W10846758-includeCORE Whirlpool W10846758 Refrigerator Electronic Control Board + Core
12	W10848958 Whirlpool Module Assembly
13	SUPPORT, FREEZER SENSOR
