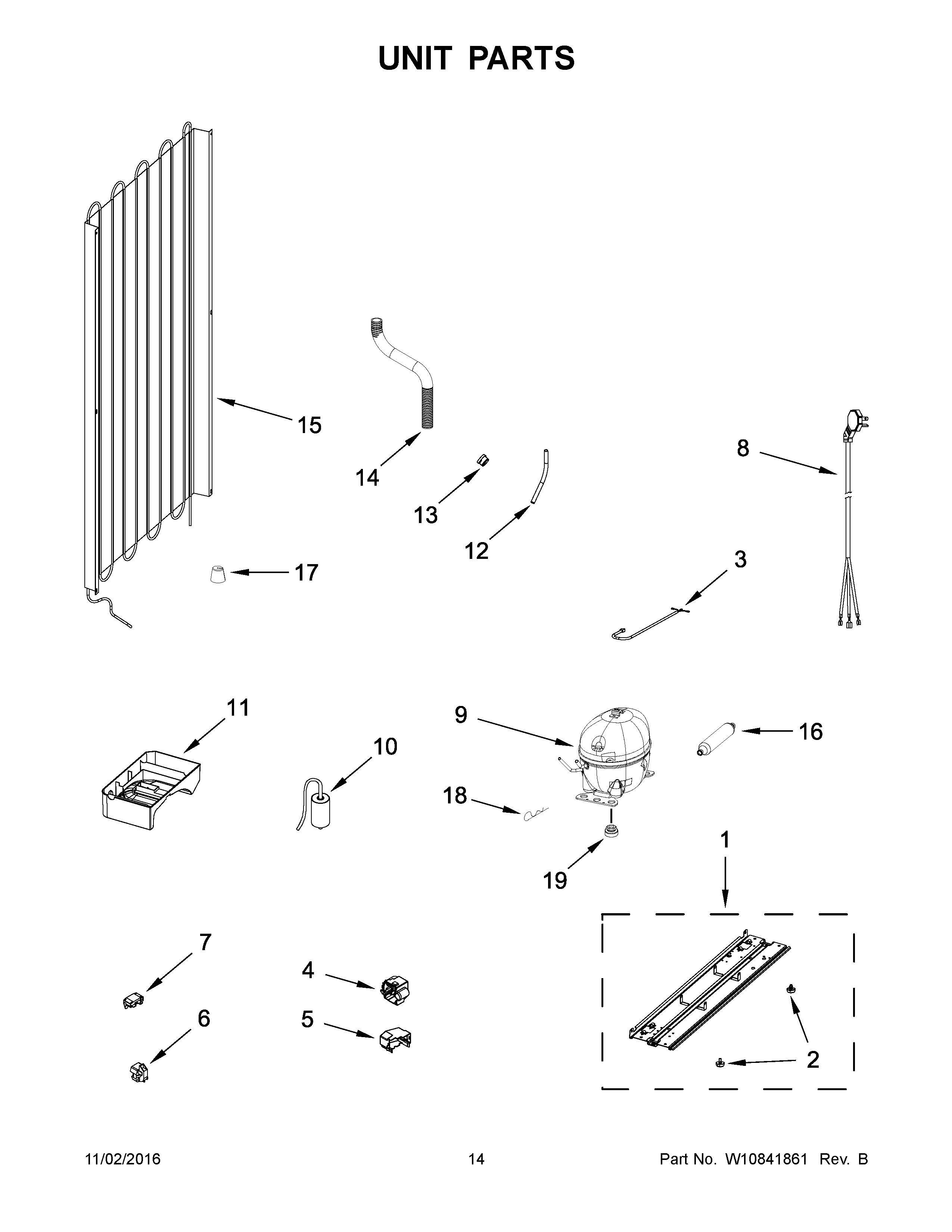

URB551WNEM0 08 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	CROSSBAR, COMPRESSOR
2	W10443535 Whirlpool Leveler
3	WIRE, GROUND
4	BOARD, TERMINAL
5	COVER, TERMINAL BOARD
6	RELAY
7	PROTECTOR, MOTOR
8	W10505066 Whirlpool Refrigerator Power Cord
9	COMPRESSOR
10	CAPACITOR
11	W10553362 Whirlpool Evaporator Tray
13	VALVE, DRAIN
14	W10843099 Whirlpool Refrigerator Tube Extension
15	CONDENSER
16	DRIER
17	PLUG
18	PIN, COTTER
19	GROMMET, COMPRESSOR
