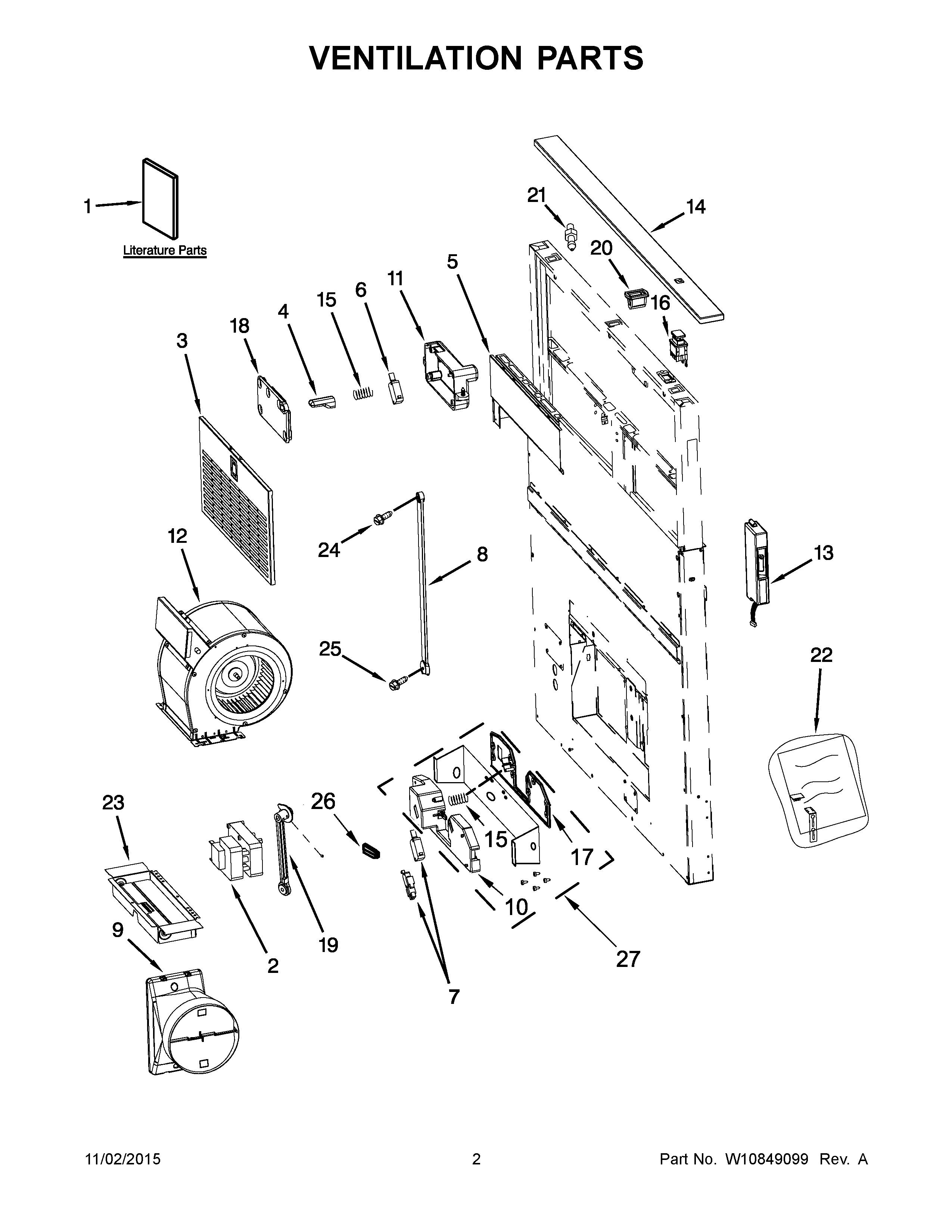

UXD8630DYS2 02 – VENTILATION PARTS

UXD8630DYS2 02 – VENTILATION PARTS

Written by

in

UXD8630DYS2 02 – VENTILATION PARTS

Products

PositionProduct
NIW10388422 Whirlpool Trim Decor
NIW11174413 Whirlpool Hardware
NIW10388421 Whirlpool Decorative Trim
NIW10387679 Whirlpool Decorative Trim
NIW10387678 Whirlpool Decorative Trim
NIW11174412 Whirlpool Hardware
1USE AND CARE GUIDE / INSTALLATION INSTRUCTIONS
2WPW10398274 Whirlpool Motor
3W10422878 Whirlpool Filter
3AW10425128 Whirlpool Filter
4W10421258 Whirlpool Control Button
5W10798407 Whirlpool Front Cover
5AW10421449 Whirlpool Cover Front
6W11666423 Whirlpool Cover Switch
7WPW10398341 Whirlpool Switch
8WPW10421280 Whirlpool Motor Arm
9WPW10313841 Whirlpool Hood Damper
10W10798401 Whirlpool Switch Cover
12W11672683 Whirlpool Range Blower Fan
13WPW10421481-includeCORE Whirlpool WPW10421481 Microwave Electronic Control Board + Core
14AW10421522 Whirlpool Decor Trim
14W10421520 Whirlpool Decorative Trim
15WPW10469579 Whirlpool Spring
16SWITCH-PB
17W11097343 Whirlpool Cover Switch
19WPW10421277 Whirlpool Motor Arm
20WPW10421518 Whirlpool Clip Assembly
21W10421517 Whirlpool Clip
22W10422165 Whirlpool Hardware
23WPW10291572 Whirlpool Hood Damper Assembly
24SCREW UPPER
25WPW10422764 Whirlpool Screw
26WPW10681777 Whirlpool Control Button
27W10833182 Whirlpool Cover Switch
