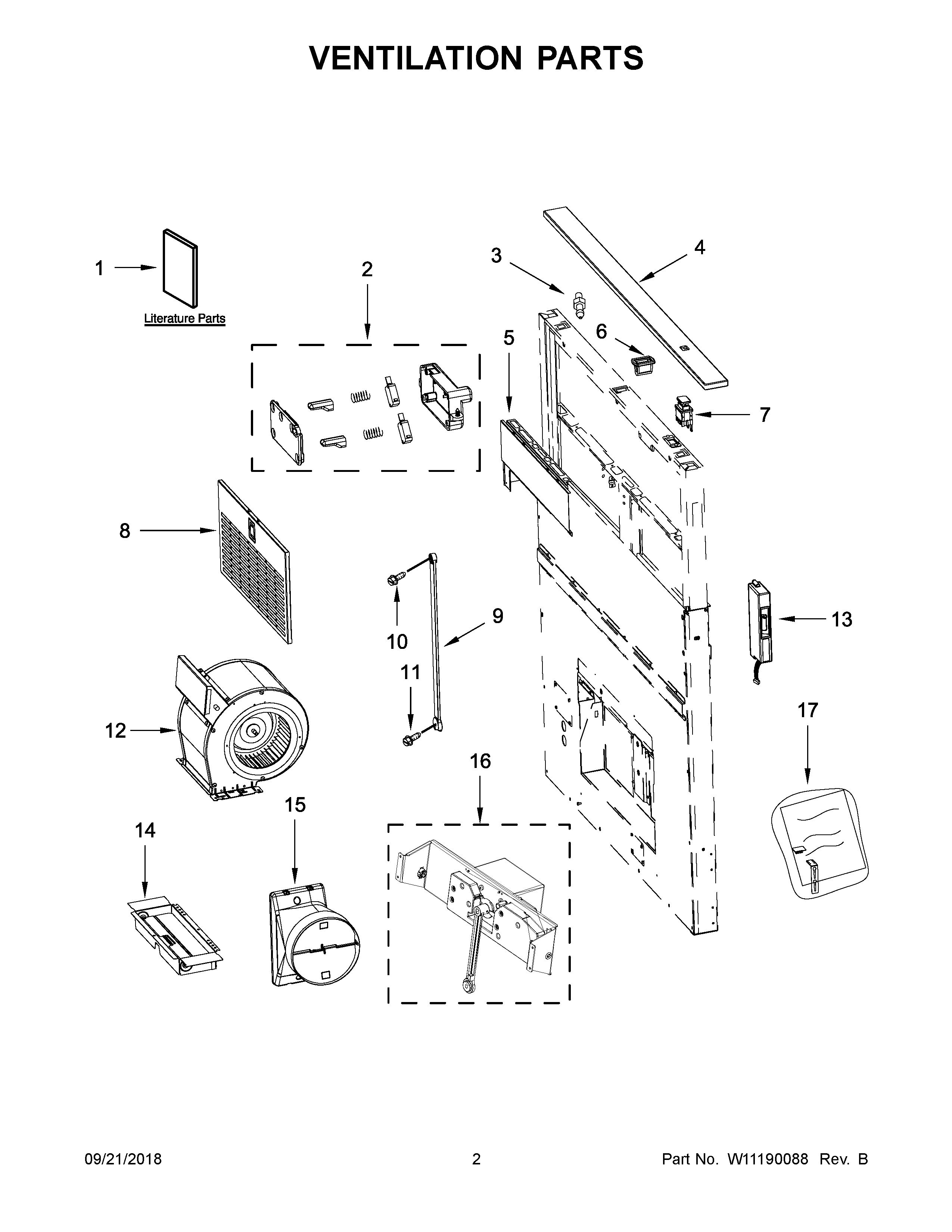

UXD8630DYS5 02 – VENTILATION PARTS

Products

PositionProduct
NIW10388421 Whirlpool Decorative Trim
NIW10388422 Whirlpool Trim Decor
NIW11174412 Whirlpool Hardware
NIW10387678 Whirlpool Decorative Trim
NIW10387679 Whirlpool Decorative Trim
NIW11174413 Whirlpool Hardware
1USE AND CARE GUIDE / INSTALLATION INSTRUCTIONS
2W11666423 Whirlpool Cover Switch
3W10421517 Whirlpool Clip
4W10421520 Whirlpool Decorative Trim
4AW10421522 Whirlpool Decor Trim
5AW10421449 Whirlpool Cover Front
5W10798407 Whirlpool Front Cover
6WPW10421518 Whirlpool Clip Assembly
7SWITCH-PB
8W10422878 Whirlpool Filter
8AW10425128 Whirlpool Filter
9WPW10421280 Whirlpool Motor Arm
10SCREW UPPER
11WPW10422764 Whirlpool Screw
12W11672683 Whirlpool Range Blower Fan
13W11088943-includeCORE Whirlpool W11088943 Refrigerator Electronic Control Board + Core
14WPW10291572 Whirlpool Hood Damper Assembly
15WPW10313841 Whirlpool Hood Damper
16W11187731 Whirlpool Motor Assembly
17W11188522 Whirlpool Hardware
