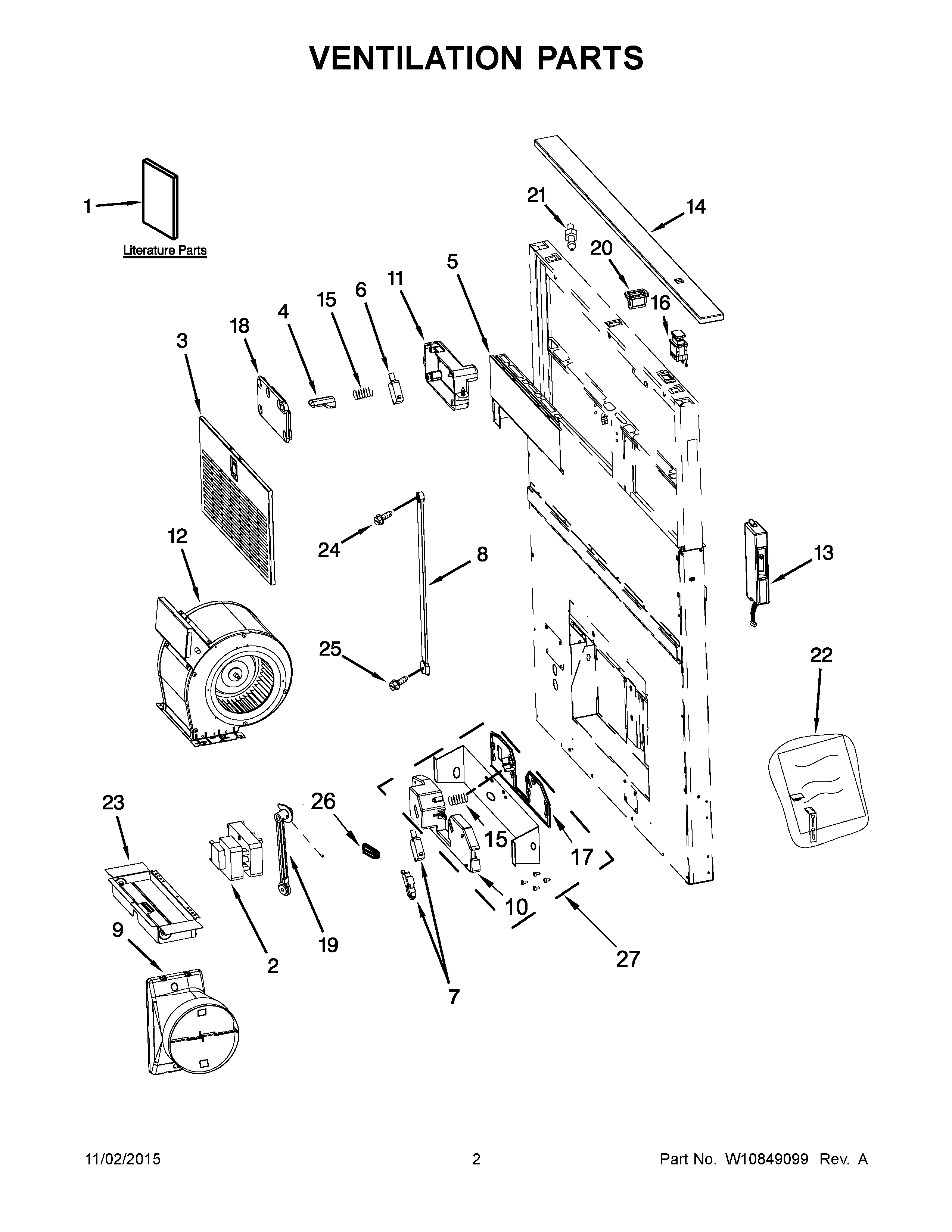

UXD8636DYS2 02 – VENTILATION PARTS

Products

Position	Product
NI	W10388422 Whirlpool Trim Decor
NI	W11174413 Whirlpool Hardware
NI	W10388421 Whirlpool Decorative Trim
NI	W10387679 Whirlpool Decorative Trim
NI	W10387678 Whirlpool Decorative Trim
NI	W11174412 Whirlpool Hardware
1	USE AND CARE GUIDE / INSTALLATION INSTRUCTIONS
2	WPW10398274 Whirlpool Motor
3	W10422878 Whirlpool Filter
3A	W10425128 Whirlpool Filter
4	W10421258 Whirlpool Control Button
5	W10798407 Whirlpool Front Cover
5A	W10421449 Whirlpool Cover Front
6	W11666423 Whirlpool Cover Switch
7	WPW10398341 Whirlpool Switch
8	WPW10421280 Whirlpool Motor Arm
9	WPW10313841 Whirlpool Hood Damper
10	W10798401 Whirlpool Switch Cover
12	W11672683 Whirlpool Range Blower Fan
13	WPW10421481-includeCORE Whirlpool WPW10421481 Microwave Electronic Control Board + Core
14A	W10421522 Whirlpool Decor Trim
14	W10421520 Whirlpool Decorative Trim
15	WPW10469579 Whirlpool Spring
16	SWITCH-PB
17	W11097343 Whirlpool Cover Switch
19	WPW10421277 Whirlpool Motor Arm
20	WPW10421518 Whirlpool Clip Assembly
21	W10421517 Whirlpool Clip
22	W10422165 Whirlpool Hardware
23	WPW10291572 Whirlpool Hood Damper Assembly
24	SCREW UPPER
25	WPW10422764 Whirlpool Screw
26	WPW10681777 Whirlpool Control Button
27	W10833182 Whirlpool Cover Switch
