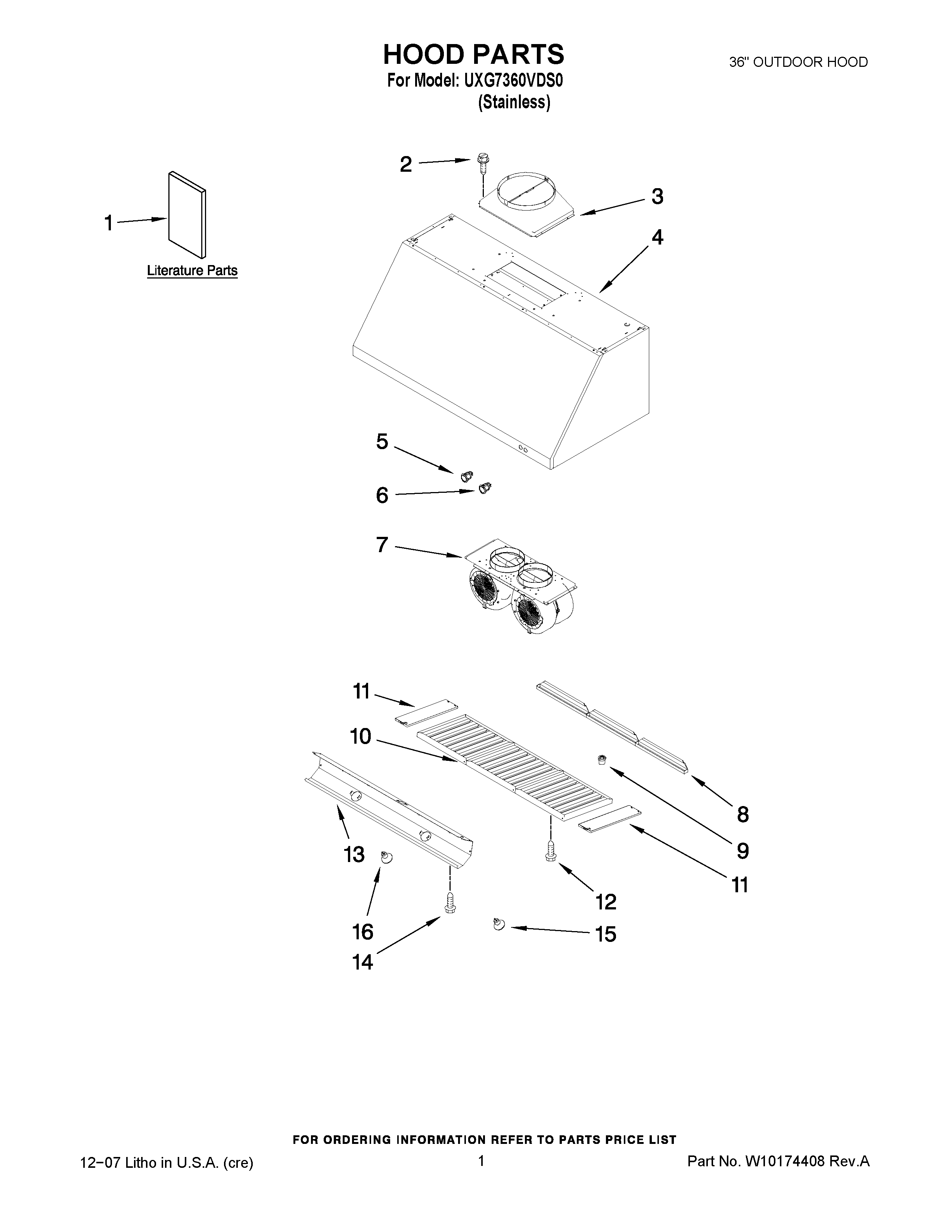

UXG7360VDS0 01 – HOOD PARTS

Products

Position	Product
NI	NUT
NI	SCREW
1	INSTRUCTIONS, INSTALLATION / USE & CARE GUIDE
3	EXTENSION,AIR DUCT
4	CABINET (NOT A SERVICEABLE PART)
5	SWITCH, LIGHT
6	SWITCH, FAN
7	BLOWER ASSY
8	SUPPORT, FILTER(4)
9	HANDLE, FILTER (8)
10	W10174617 Whirlpool Filter
11	PANEL, SIDE FILTER
12	SCREW (8)
13	PANEL, LIGHT
14	SCREW (6)
15	TOOL,LIGHT REMOVAL
16	BULB,HALOGEN (3)
