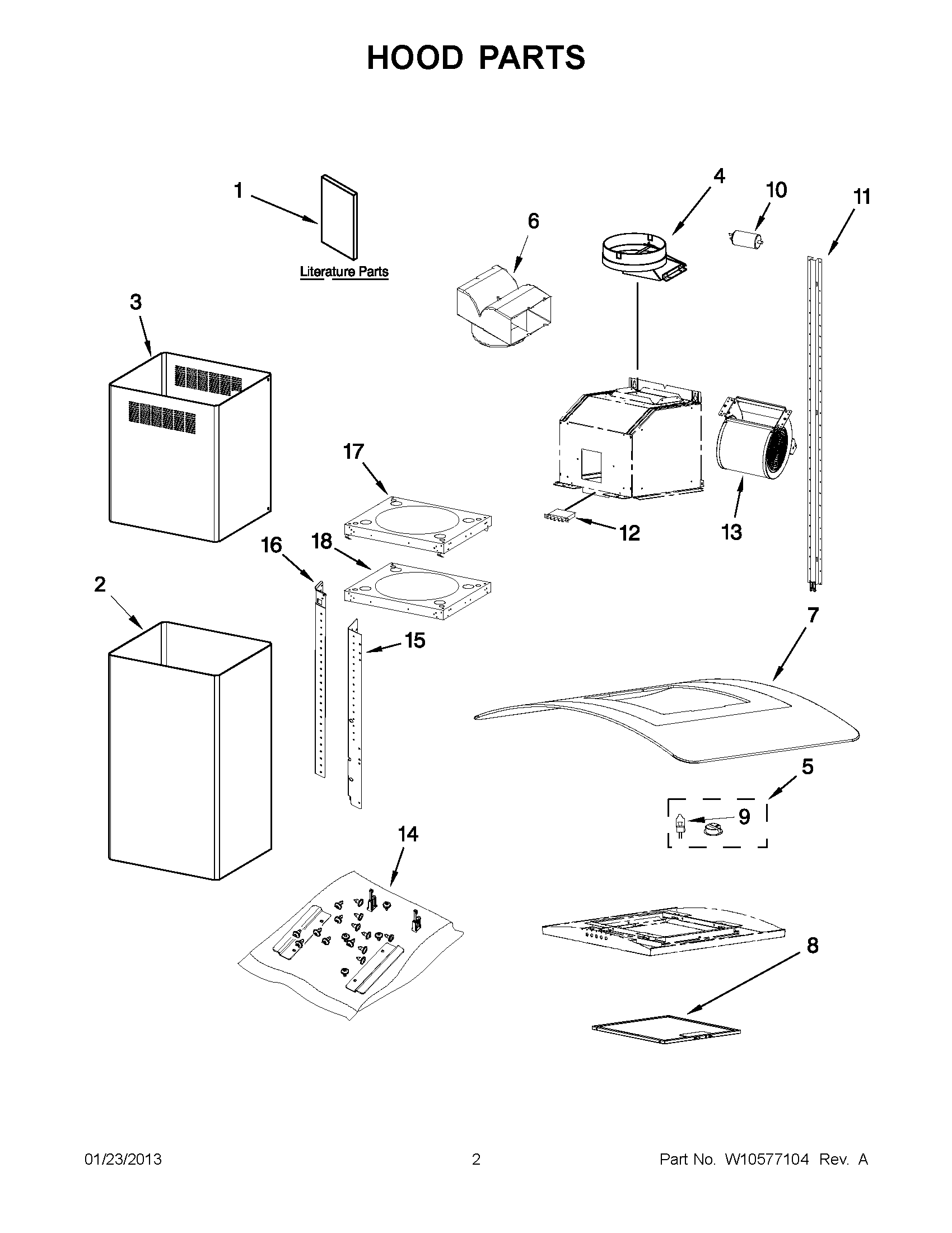

UXI6536BS0 01 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CHIMNEY EXTENSION KIT
NI	W11430929 Whirlpool Duct Kit
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10412939 Whirlpool Charcoal Filter Pack
1	USE AND CARE GUIDE
2	W11321565 Whirlpool Chimney
3	W10351831 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	BULB-LIGHT
6	WPW10562744 Whirlpool Air Duct
7	WPW10562745 Whirlpool Glass
8	W10169961A Whirlpool Grease Filter
9	BULB-LIGHT
10	W10256657 Whirlpool Capacitor
11	WPW10293054 Whirlpool Support
12	W11577780 Whirlpool Motor Control
13	WPW10291577 Whirlpool Fan Motor
14	HARDWARE, INSTALLATION
15	W10351905 Whirlpool Support
16	W10293063 Whirlpool Support
17	W10297052 Whirlpool Mounting Bracket
18	W10293065 Whirlpool Support Bracket
