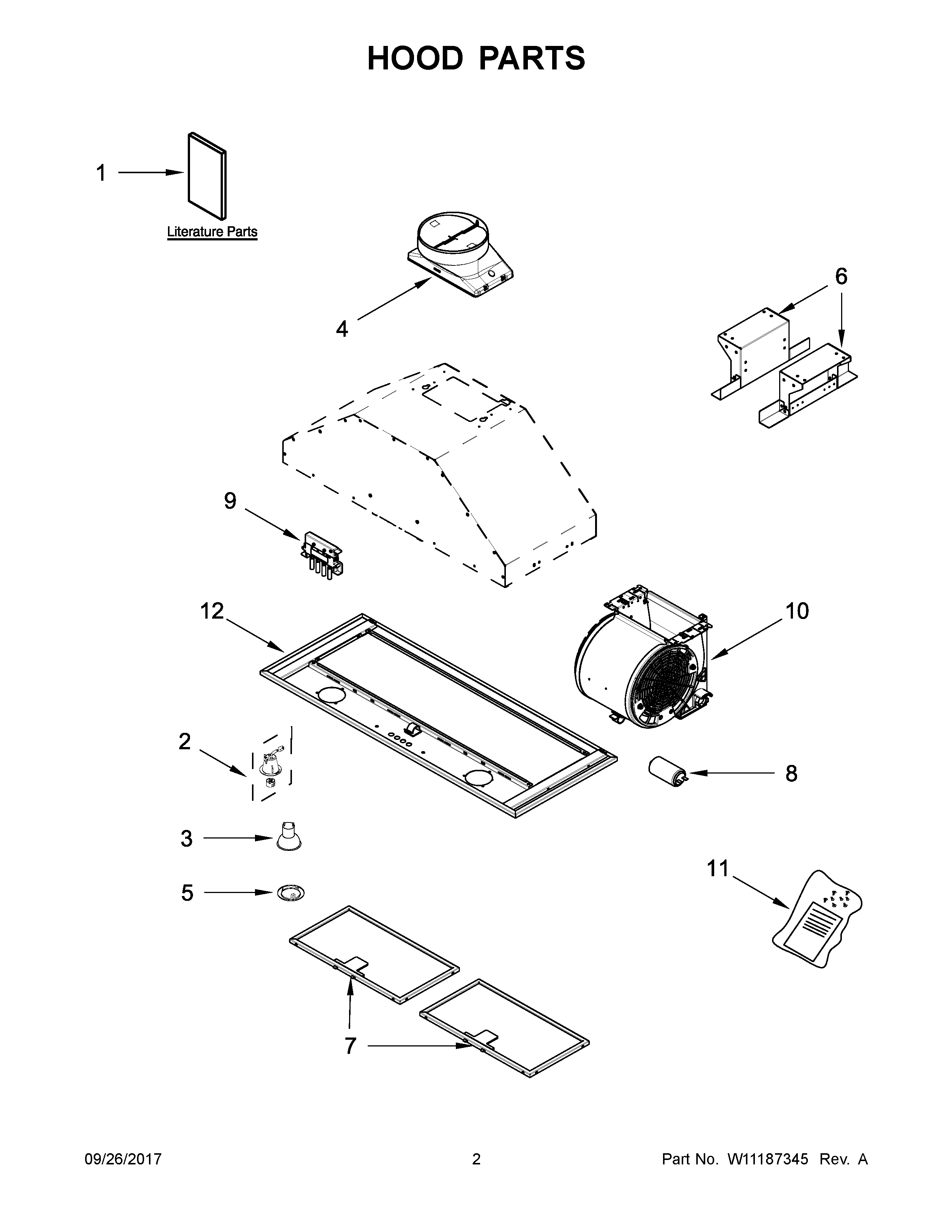

UXL5430BSS1 02 – HOOD PARTS

Products

Position	Product
NI	W10490310 Whirlpool Hood Liner
NI	W10490327 Whirlpool Range Hood Rear Liner 30" x 6"
NI	ACCESSORIES, STRIP, CABINET FILLER
NI	W10490330 Whirlpool Range Hood Recirculation Kit
NI	W10446915 Whirlpool Range Hood Air Kit
NI	W10272068 Whirlpool Range Hood Charcoal Filter Set
1	USE AND CARE GUIDE
2	WPW10370558 Whirlpool Socket
3	WPW10291579 Whirlpool Light Bulb
4	W10847841 Whirlpool Range Hood Vent Damper
5	W10351924 Whirlpool Bezel
6	WPW10531090 Whirlpool Mounting Bracket
7	WPW10531087 Whirlpool Filter Assembly
8	W11328673 Whirlpool Capacitor
9	W10531088 Whirlpool Power Button Switch
10	BLOWER-FAN
11	W10531092 Whirlpool Hardware
12	WPW10531091 Whirlpool Light Support
