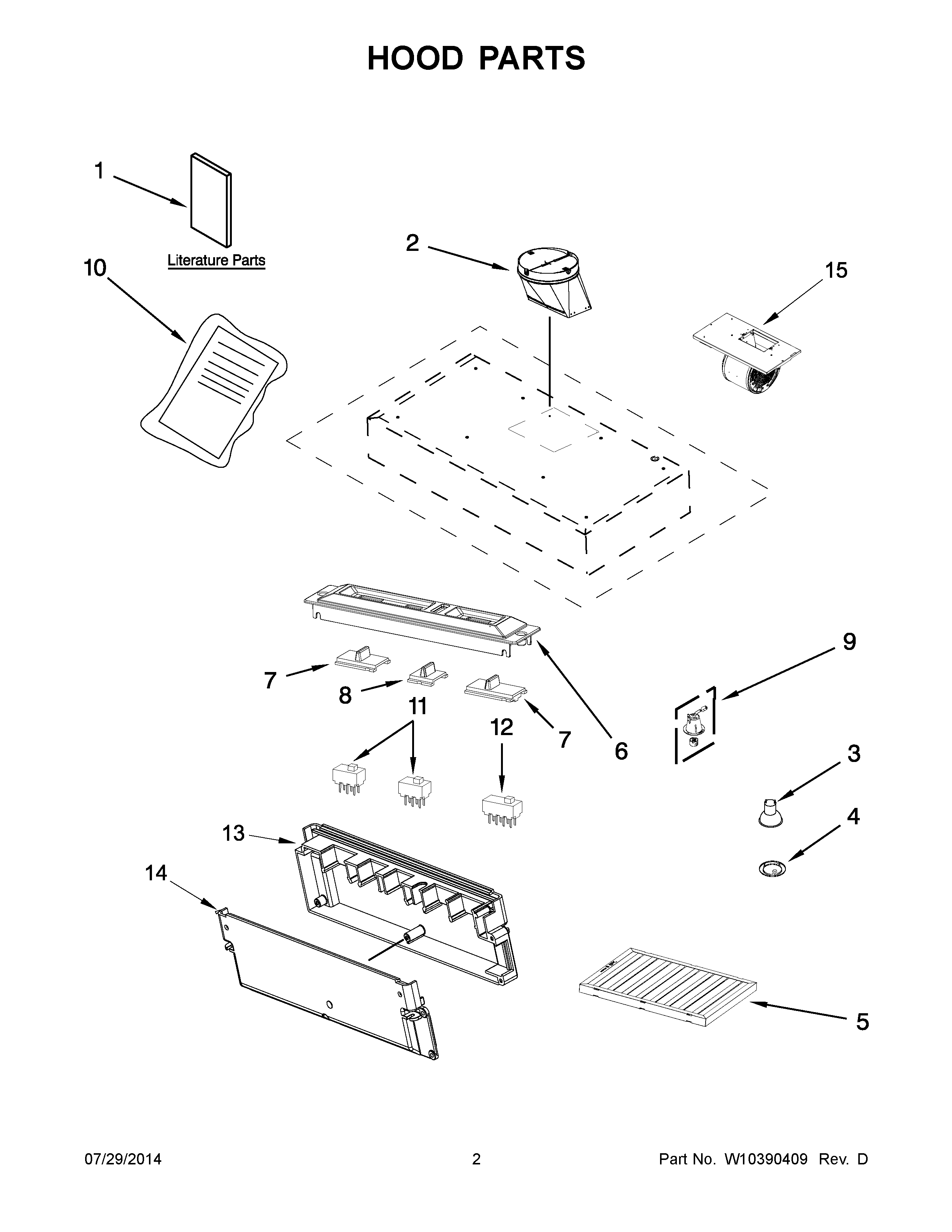

UXL6048YSS0 02 – HOOD PARTS

UXL6048YSS0 02 – HOOD PARTS

Written by

in

UXL6048YSS0 02 – HOOD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10351855A Whirlpool Range Hood Grease Filter
NIWPW10294026 Whirlpool Blower Fan
NIWPW10294006 Whirlpool Blower Fan
1USE & CARE GUIDE
2W11156393 Whirlpool Hood Damper
3WPW10291579 Whirlpool Light Bulb
4W10351924 Whirlpool Bezel
5W10169961A Whirlpool Grease Filter
6W11387938 Whirlpool Range Hood Control Panel
7W11569415 Whirlpool Control Switch Long Slider
8W11662407 Whirlpool Range Slide Switch
9WPW10370558 Whirlpool Socket
10W11088595 Whirlpool Hardware
11W10853393 Whirlpool Rocker Switch
12W11193832 Whirlpool Rocker Switch
13W10721964 Whirlpool Control Housing
14W10721963 Whirlpool Control Housing
