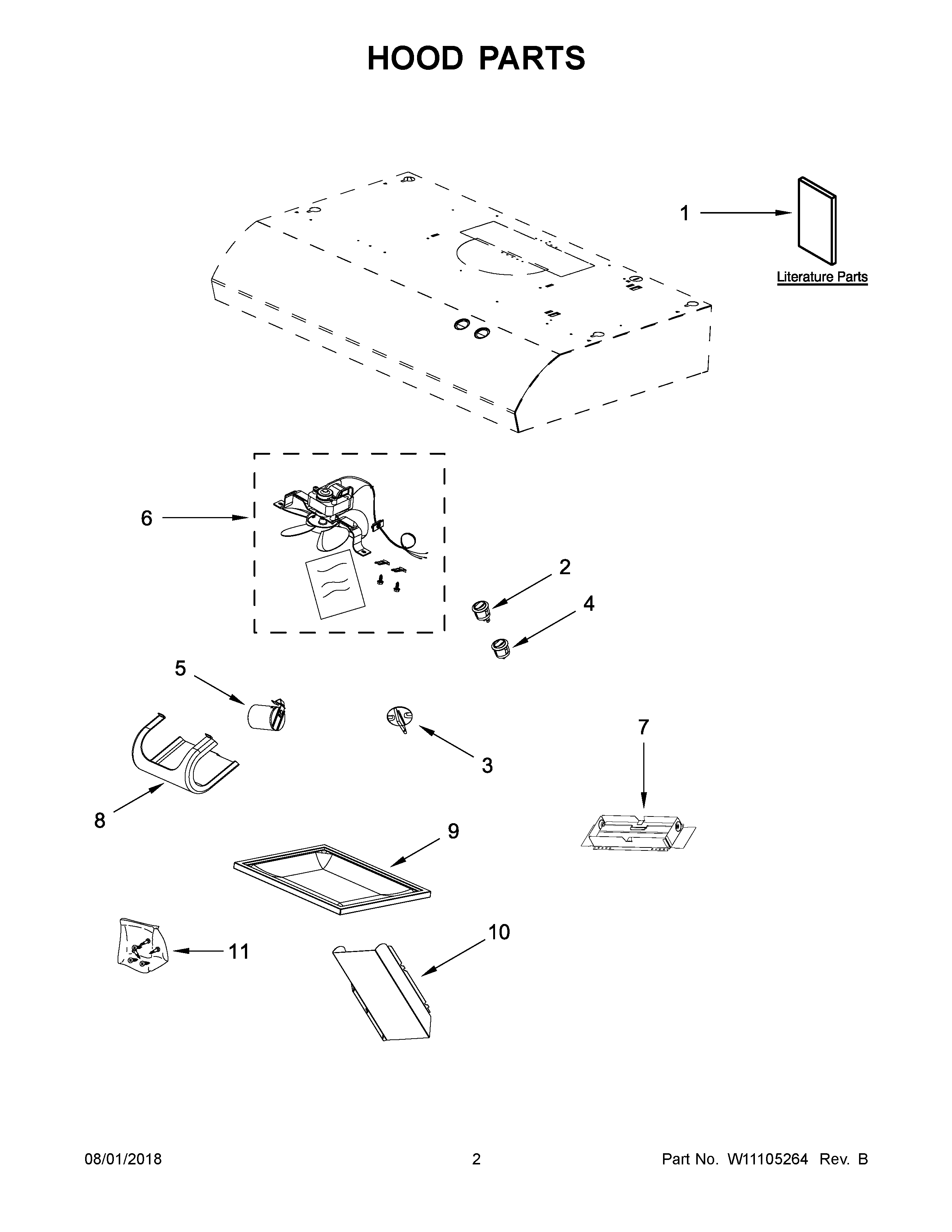

UXT3030ADW2 02 – HOOD PARTS

UXT3030ADW2 02 – HOOD PARTS

Written by

in

UXT3030ADW2 02 – HOOD PARTS

Products

PositionProduct
NIW10613691 Whirlpool Range Hood Power Cord
NIW10355451 Whirlpool Range Hood 7" Round Vent Damper
NIW10388168 Whirlpool Range Hood Damper Mounting Plate
1USE AND CARE GUIDE
2W10394523 Whirlpool Rocker Switch
2AW10394520 Whirlpool Rocker Switch
3W10386347 Whirlpool Filter Latch
4AW11740801 Whirlpool Rocker Switch
4W10394557 Whirlpool Rocker Switch
5W10910124 Whirlpool Socket
6W11105126 Whirlpool Fan Motor
7WPW10291572 Whirlpool Hood Damper Assembly
8W11230100 Whirlpool Range Hood Light Cover
9W10395127 Whirlpool Range Hood Grease Filter
10W11104673 Whirlpool Terminal Cover
11W10665195 Whirlpool Hardware Assembly
