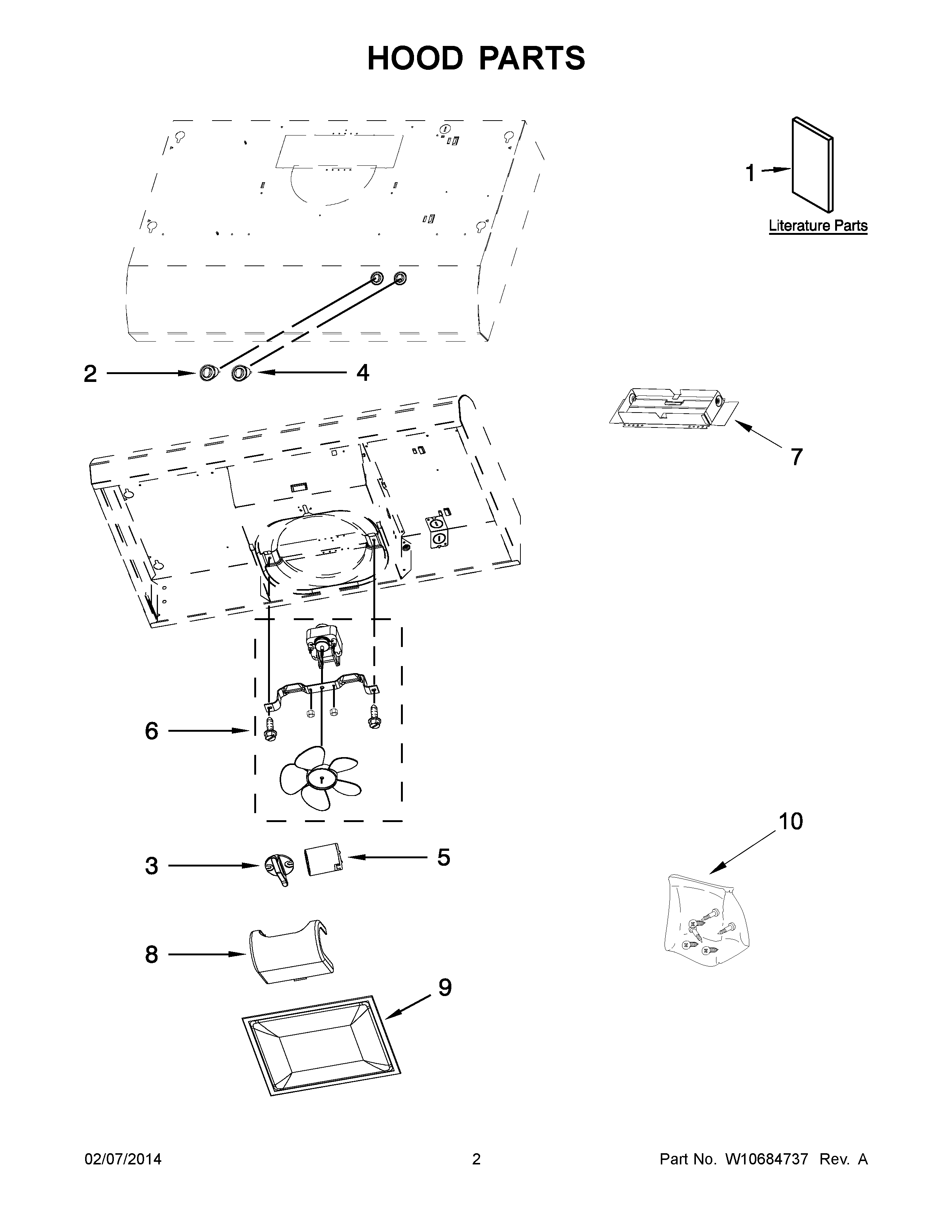

UXT4130ADB0 02 – HOOD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NICLEANER, STAINLESS STEEL (12 OZ)
NIW10355450 Whirlpool Filter
NIW10613691 Whirlpool Range Hood Power Cord
1USE AND CARE GUIDE
2W10394523 Whirlpool Rocker Switch
2W10394520 Whirlpool Rocker Switch
3W10386347 Whirlpool Filter Latch
4W11740801 Whirlpool Rocker Switch
4W10394557 Whirlpool Rocker Switch
5W10910124 Whirlpool Socket
6W10910693 Whirlpool Fan Motor
7WPW10291572 Whirlpool Hood Damper Assembly
8COVER, LAMP
9W10395127 Whirlpool Range Hood Grease Filter
10W10665195 Whirlpool Hardware Assembly
