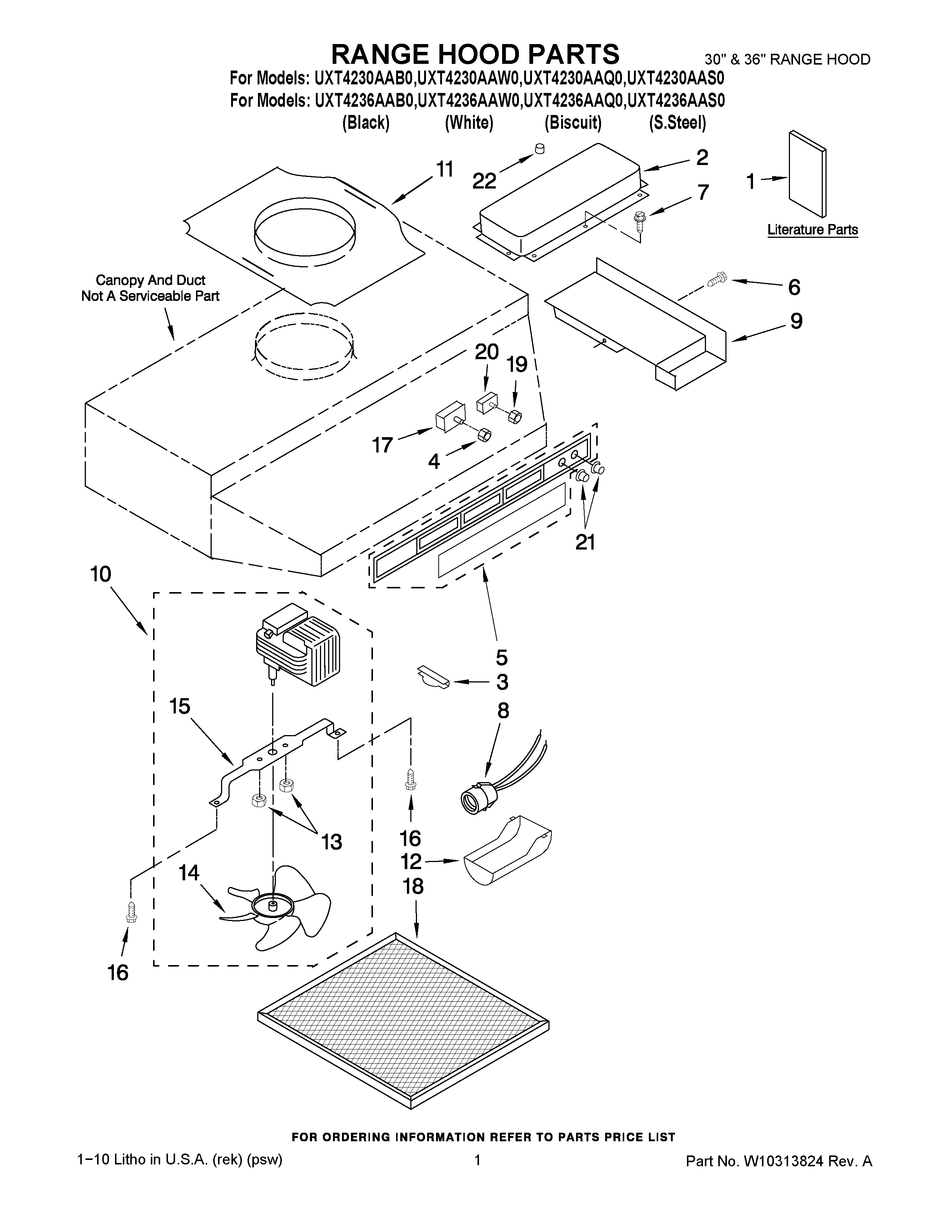

UXT4230AAQ0 01 – RANGE HOOD PARTSadmin2025-04-26T12:59:57+00:00UXT4230AAQ0 01 – RANGE HOOD PARTS
Products
| Position | Product |
|---|
| NI | Screw |
| NI | 4378581 Whirlpool Microwave Range Vent Hood Charcoal Filter |
| NI | Harness, Wire (Incl 8, 17 & 20) |
| NI | Diode Assembly |
| 1 | GUIDE, USE & CARE |
| 2 | Damper |
| 3 | Support/Retainer (Filter) |
| 4 | Nut 3/8-32 |
| 5 | NAMEPLATE (BLACK, SS MODEL) |
| 5 | NAMEPLATE (WHITE) |
| 5 | NAMEPLATE (BISCUIT) |
| 6 | Screw |
| 7 | WP7101P246-60 Whirlpool Screw |
| 8 | Receptacle, Light Bulb not incl-75W |
| 9 | Cover, Wiring |
| 10 | Motor/Fan Assembly |
| 11 | Plate, Duct |
| 12 | WP8186930 Whirlpool Light Lens Assembly |
| 13 | NUT |
| 14 | Blade, Fan |
| 15 | Bracket, Motor |
| 16 | Screw |
| 17 | Switch, Fan |
| 18 | FILTER |
| 19 | Nut 15/32-32 |
| 20 | Switch, Light |
| 21 | Knob (2) (Biscuit) |
| 21 | WP8190792 Whirlpool Control Knob |
| 21 | Knob (2) (White) |
| 22 | Bumper, Damper |
