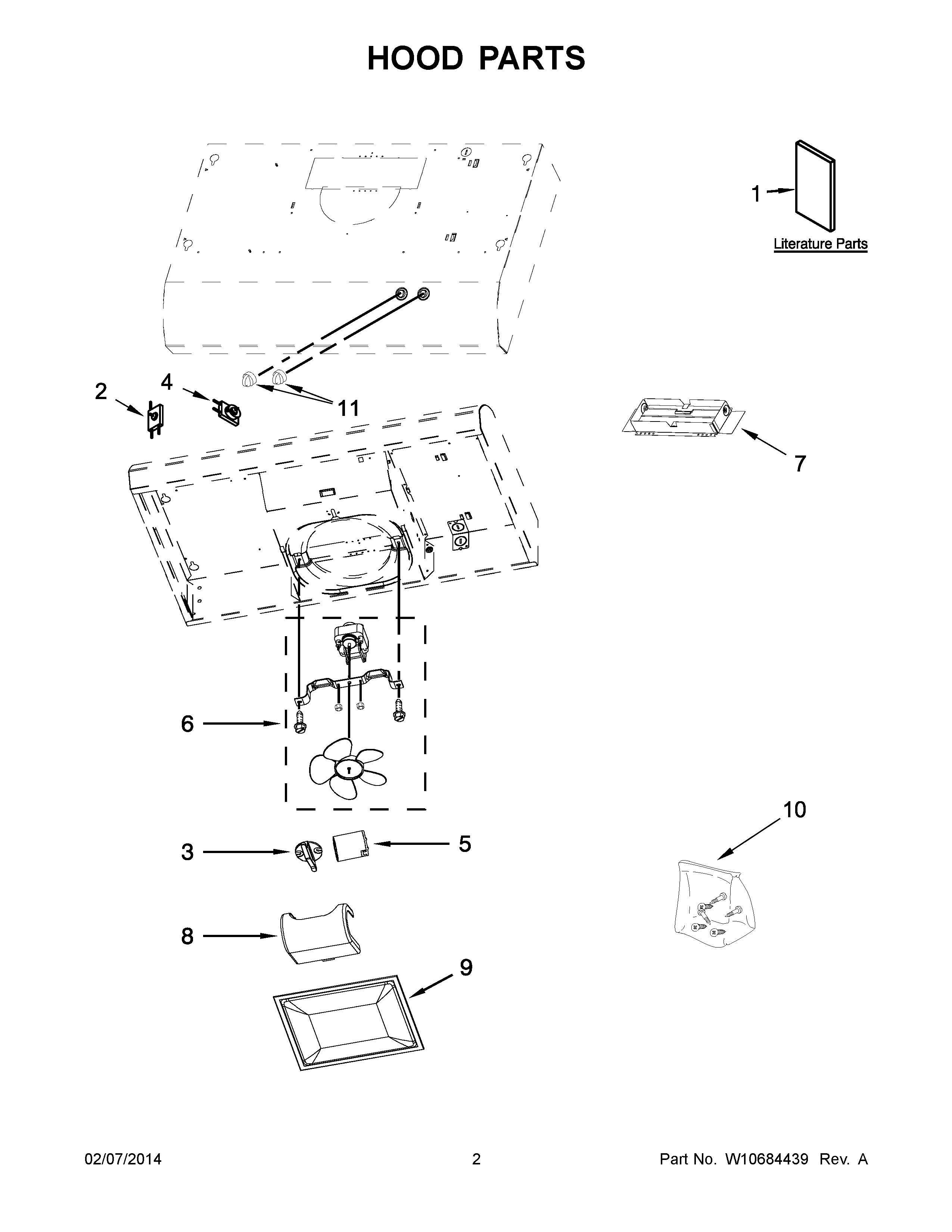

UXT4230ADT0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CLEANER, STAINLESS STEEL (12 OZ)
NI	W10355450 Whirlpool Filter
NI	W10613691 Whirlpool Range Hood Power Cord
NI	W10355451 Whirlpool Range Hood 7" Round Vent Damper
NI	W10388168 Whirlpool Range Hood Damper Mounting Plate
1	USE AND CARE GUIDE
2	W11206737 Whirlpool Rotary Switch
3	W10386347 Whirlpool Filter Latch
4	WPW10395126 Whirlpool Rotary Switch
5	W10910124 Whirlpool Socket
6	WPW10395033 Whirlpool Fan Motor
7	WPW10291572 Whirlpool Hood Damper Assembly
8	COVER, LAMP
9	W10395127 Whirlpool Range Hood Grease Filter
10	W10665195 Whirlpool Hardware Assembly
11	W10395010 Whirlpool Control Knob
11	W10395036 Whirlpool Control Knob
