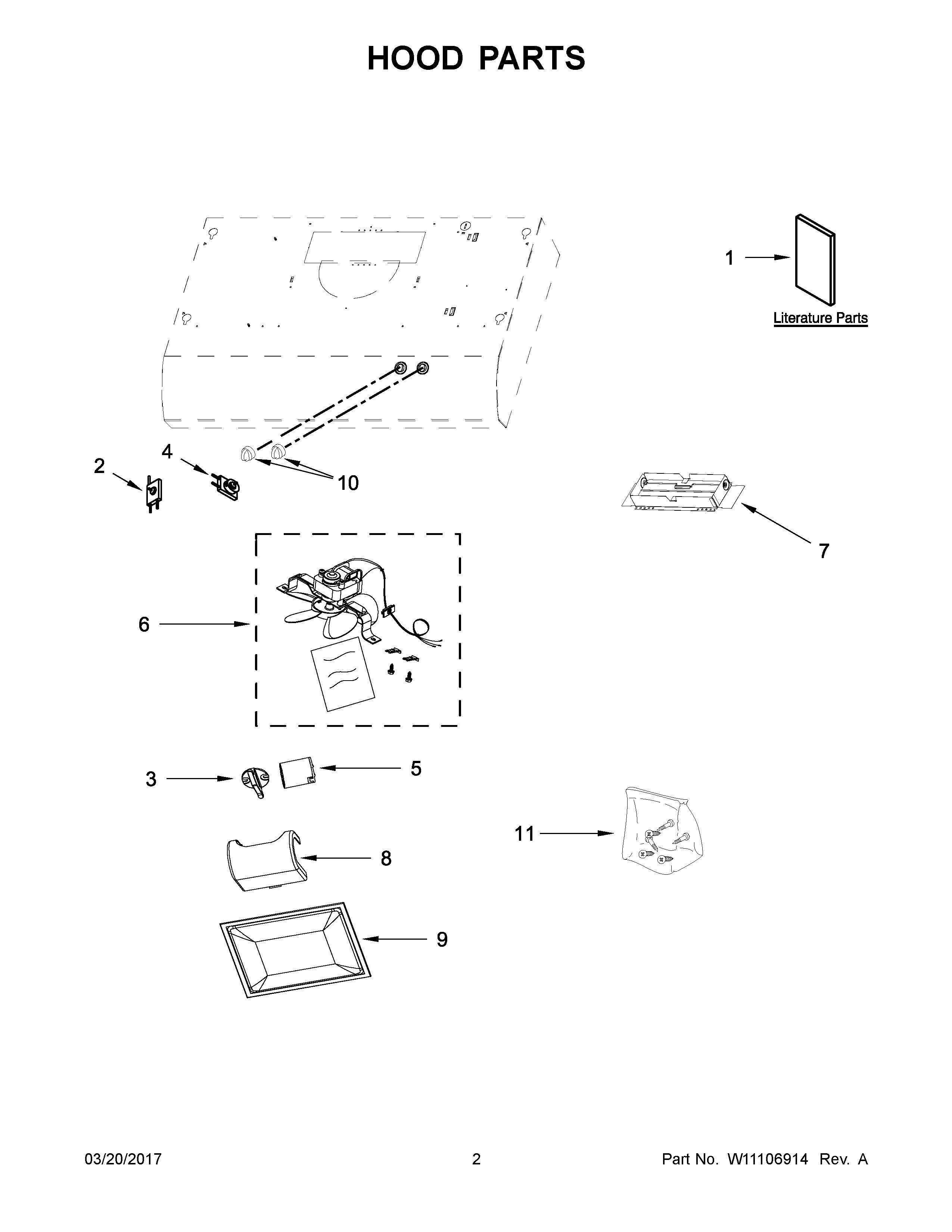

UXT4230ADW2 02 – HOOD PARTS

UXT4230ADW2 02 – HOOD PARTS

Written by

in

UXT4230ADW2 02 – HOOD PARTS

Products

PositionProduct
NICLEANER, STAINLESS STEEL (12 OZ)
NIW10613691 Whirlpool Range Hood Power Cord
NIW10355451 Whirlpool Range Hood 7" Round Vent Damper
NIW10388168 Whirlpool Range Hood Damper Mounting Plate
NIW10355450 Whirlpool Filter
1USE AND CARE GUIDE
2W11206737 Whirlpool Rotary Switch
3W10386347 Whirlpool Filter Latch
4WPW10395126 Whirlpool Rotary Switch
5W11106830 Whirlpool Socket
6WPW10395033 Whirlpool Fan Motor
7WPW10291572 Whirlpool Hood Damper Assembly
8W11230100 Whirlpool Range Hood Light Cover
9W10395127 Whirlpool Range Hood Grease Filter
10AW10395010 Whirlpool Control Knob
10W10395036 Whirlpool Control Knob
11W10665195 Whirlpool Hardware Assembly
