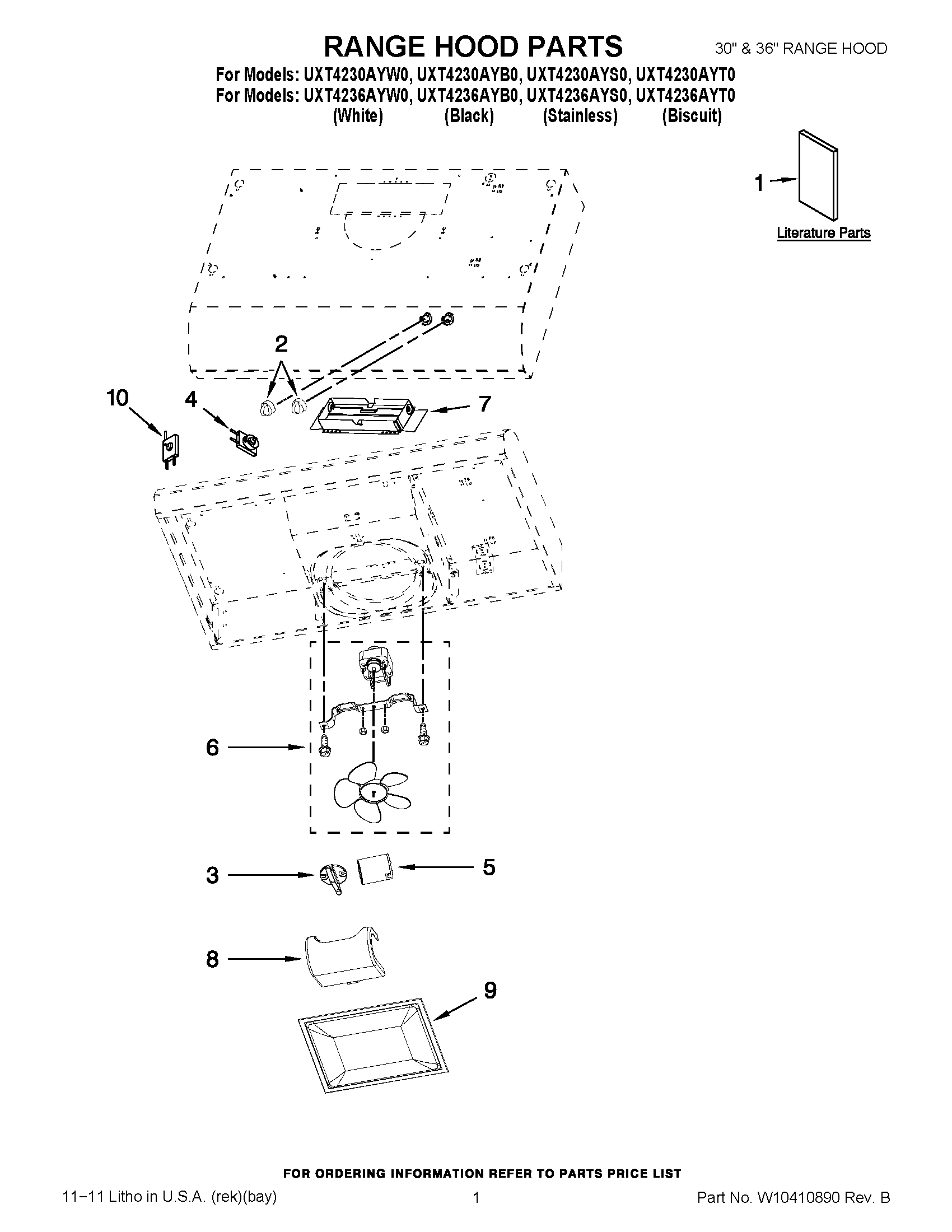

UXT4230AYB0 01 – RANGE HOOD PARTS

Products

Position	Product
NI	CLEANER, STAINLESS STEEL (12 OZ)
NI	W10355450 Whirlpool Filter
NI	W10398259 Whirlpool Range Hood Vent Damper Kit
NI	W10388168 Whirlpool Range Hood Damper Mounting Plate
NI	W10355451 Whirlpool Range Hood 7" Round Vent Damper
NI	WPW10291572 Whirlpool Hood Damper Assembly
NI	W10613691 Whirlpool Range Hood Power Cord
1	GUIDE, USE & CARE
2	W10395036 Whirlpool Control Knob
2	W10395010 Whirlpool Control Knob
3	W10386347 Whirlpool Filter Latch
4	W11206737 Whirlpool Rotary Switch
5	W10910124 Whirlpool Socket
6	WPW10395033 Whirlpool Fan Motor
8	COVER, LAMP
9	W10395127 Whirlpool Range Hood Grease Filter
10	WPW10395126 Whirlpool Rotary Switch
