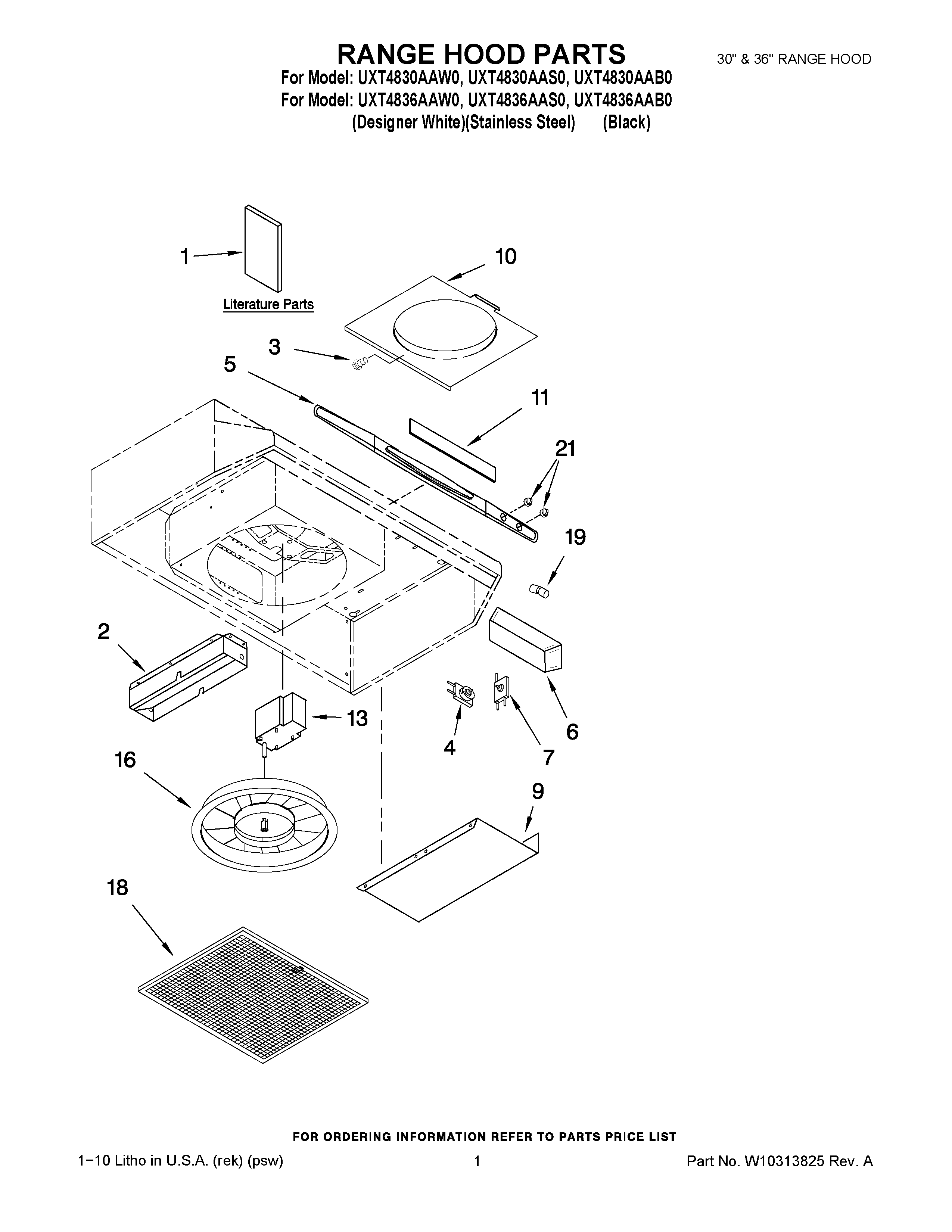

UXT4830AAW0 01 – RANGE HOOD PARTS

Products

PositionProduct
NIKnob Miscellaneous (Filter, Non-Ducted)
NIKnob Miscellaneous (Pin, Hitch)
1GUIDE, USE & CARE
2Damper
3WP3177991 Whirlpool Screw
4Switch, Fan
5GRILLE, VENT (BLACK, SS MODEL)
5GRILLE, VENT (WHITE)
6WP8190212 Whirlpool Light Lens
7Switch, Light
9Cover, Wiring
10Plate, Duct
11Baffle (White)
11Baffle (Black)
13Motor
16WP8191110 Whirlpool Fan Blade
184396387 Whirlpool Range Microwave Vent Hood Grease Filter
19Socket, Lamp (2)
21Knob (White)
21Knob (Black)
