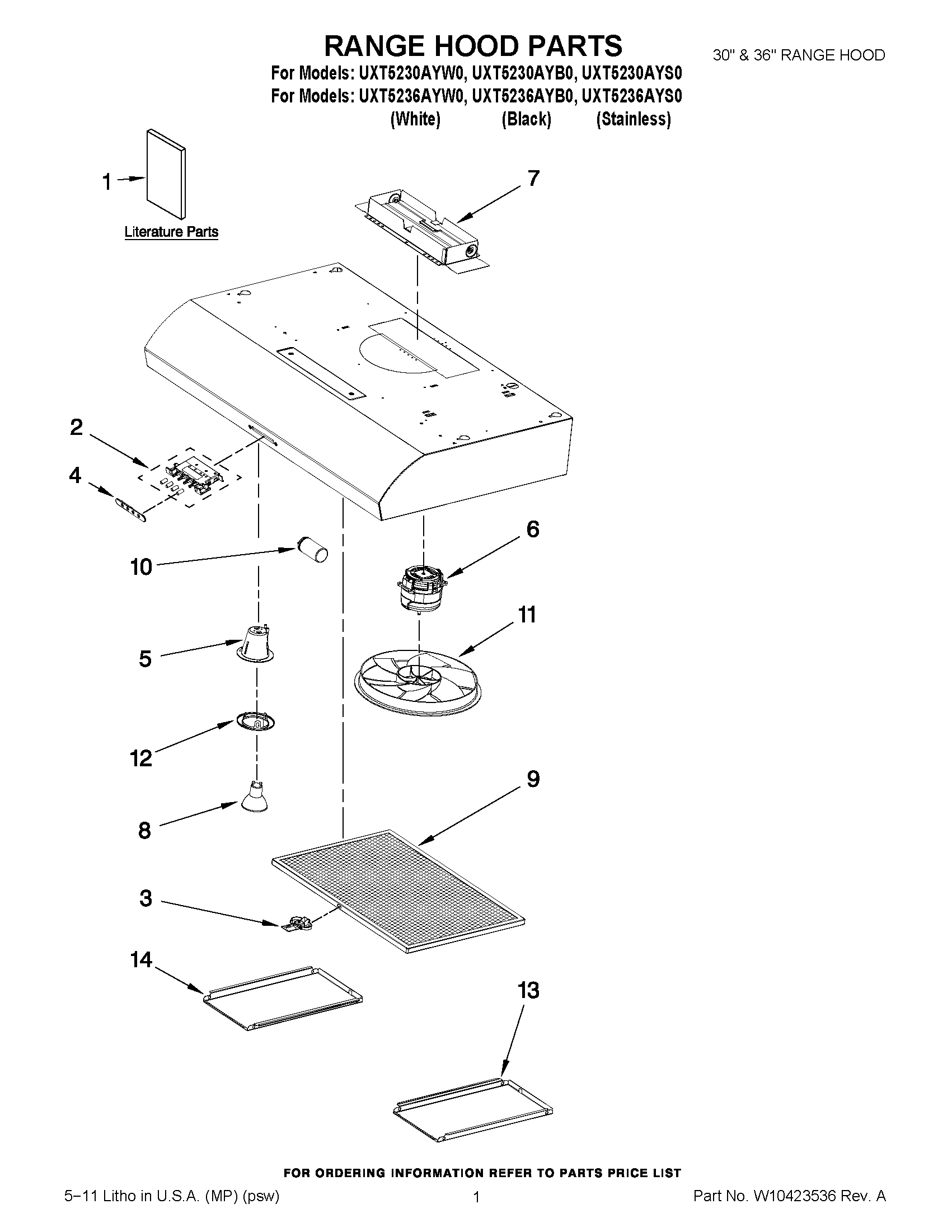

UXT5230AYB0 01 – RANGE HOOD PARTS

UXT5230AYB0 01 – RANGE HOOD PARTS

Written by

in

UXT5230AYB0 01 – RANGE HOOD PARTS

Products

PositionProduct
NICLEANER, STAINLESS STEEL (12 OZ)
NIW10386873 Whirlpool Filter
NIWPW10291572 Whirlpool Hood Damper Assembly
NIW10613691 Whirlpool Range Hood Power Cord
NIW10355451 Whirlpool Range Hood 7" Round Vent Damper
NIW10388168 Whirlpool Range Hood Damper Mounting Plate
1GUIDE, USE & CARE
2WPW10419516-includeCORE Whirlpool WPW10419516 Refrigerator Electronic Control Board + Core
3W10416841 Whirlpool Filter Latch
4W10416838 Whirlpool Cover Assembly
5WPW10370558 Whirlpool Socket
6W10416839 Whirlpool Fan Motor Assembly
8WPW10291579 Whirlpool Light Bulb
9W11177751 Whirlpool Grease Filter
10W10416842 Whirlpool Capacitor
11W10416840 Whirlpool Fan Blade
12W10351924 Whirlpool Bezel
13W10419517 Whirlpool Bottom Panel
13SIDE PANEL, RIGHT (WHITE-36“)
13SIDE PANEL, RIGHT (BLACK-36“)
13W10419535 Whirlpool Bottom Panel
13W10416843 Whirlpool Bottom Panel
13W10419522 Whirlpool Bottom Panel
14W10419523 Whirlpool Bottom Panel
14W10419521 Whirlpool Bottom Panel
14W10416844 Whirlpool Bottom Panel
14SIDE PANEL, LEFT (BLACK-36“)
14SIDE PANEL, LEFT (WHITE-36“)
14W10419532 Whirlpool Bottom Panel
