UXT5230BDB0 02 – HOOD PARTS

UXT5230BDB0 02 – HOOD PARTS

Written by

in

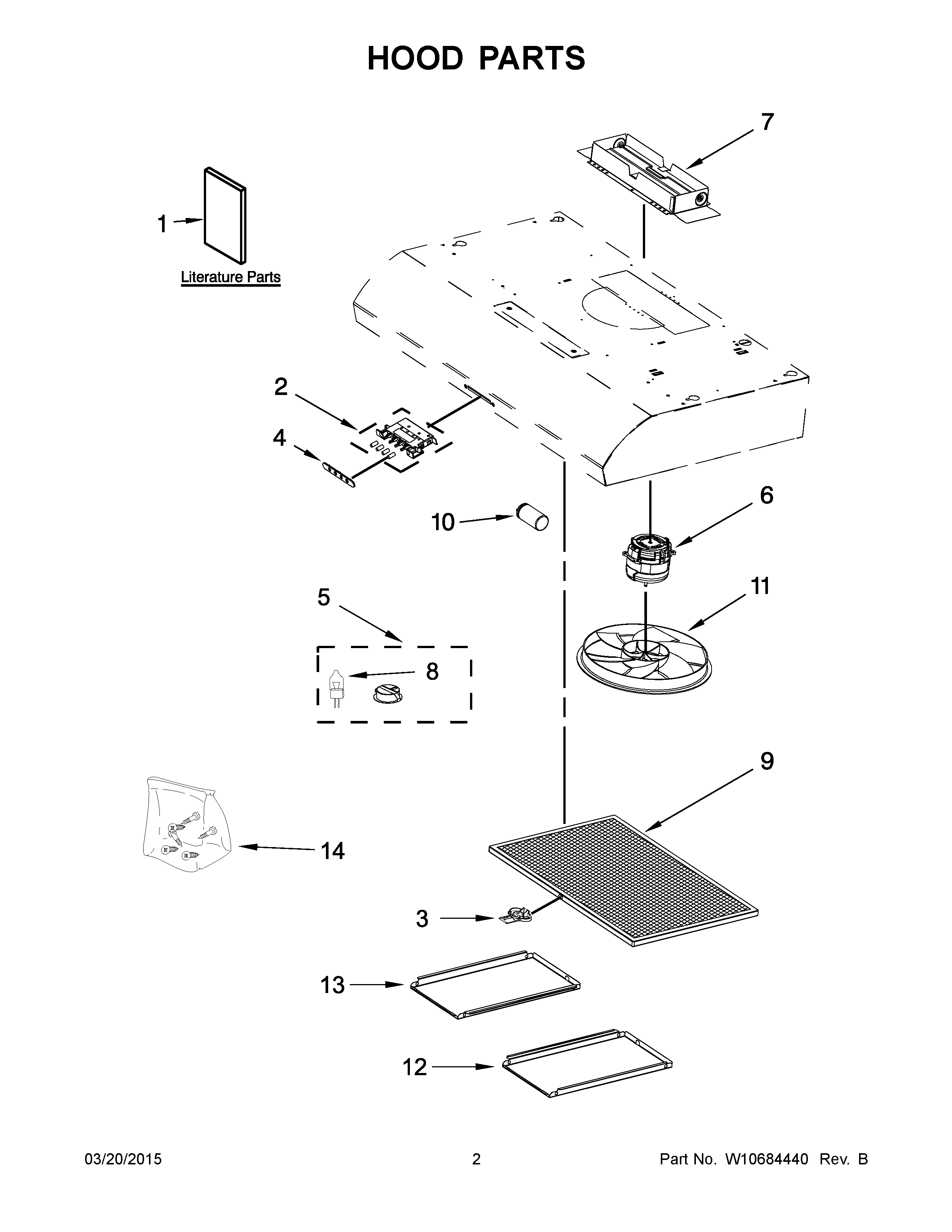

UXT5230BDB0 02 – HOOD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10386873 Whirlpool Filter
NIW10388168 Whirlpool Range Hood Damper Mounting Plate
NIW10355451 Whirlpool Range Hood 7" Round Vent Damper
NIW10613691 Whirlpool Range Hood Power Cord
NICLEANER, STAINLESS STEEL (12 OZ)
1USE AND CARE GUIDE
2WPW10419516-includeCORE Whirlpool WPW10419516 Refrigerator Electronic Control Board + Core
3W10416841 Whirlpool Filter Latch
4W10416838 Whirlpool Cover Assembly
5WPW10638164 Whirlpool Light Bulb
6W10416839 Whirlpool Fan Motor Assembly
7WPW10291572 Whirlpool Hood Damper Assembly
8BULB-LIGHT
9W11177751 Whirlpool Grease Filter
10W10416842 Whirlpool Capacitor
11W10416840 Whirlpool Fan Blade
12AW10419517 Whirlpool Bottom Panel
12W10419522 Whirlpool Bottom Panel
12CW10419535 Whirlpool Bottom Panel
12BW10416843 Whirlpool Bottom Panel
13AW10419521 Whirlpool Bottom Panel
13W10419523 Whirlpool Bottom Panel
13CW10419532 Whirlpool Bottom Panel
13BW10416844 Whirlpool Bottom Panel
14W10684097 Whirlpool Hardware
