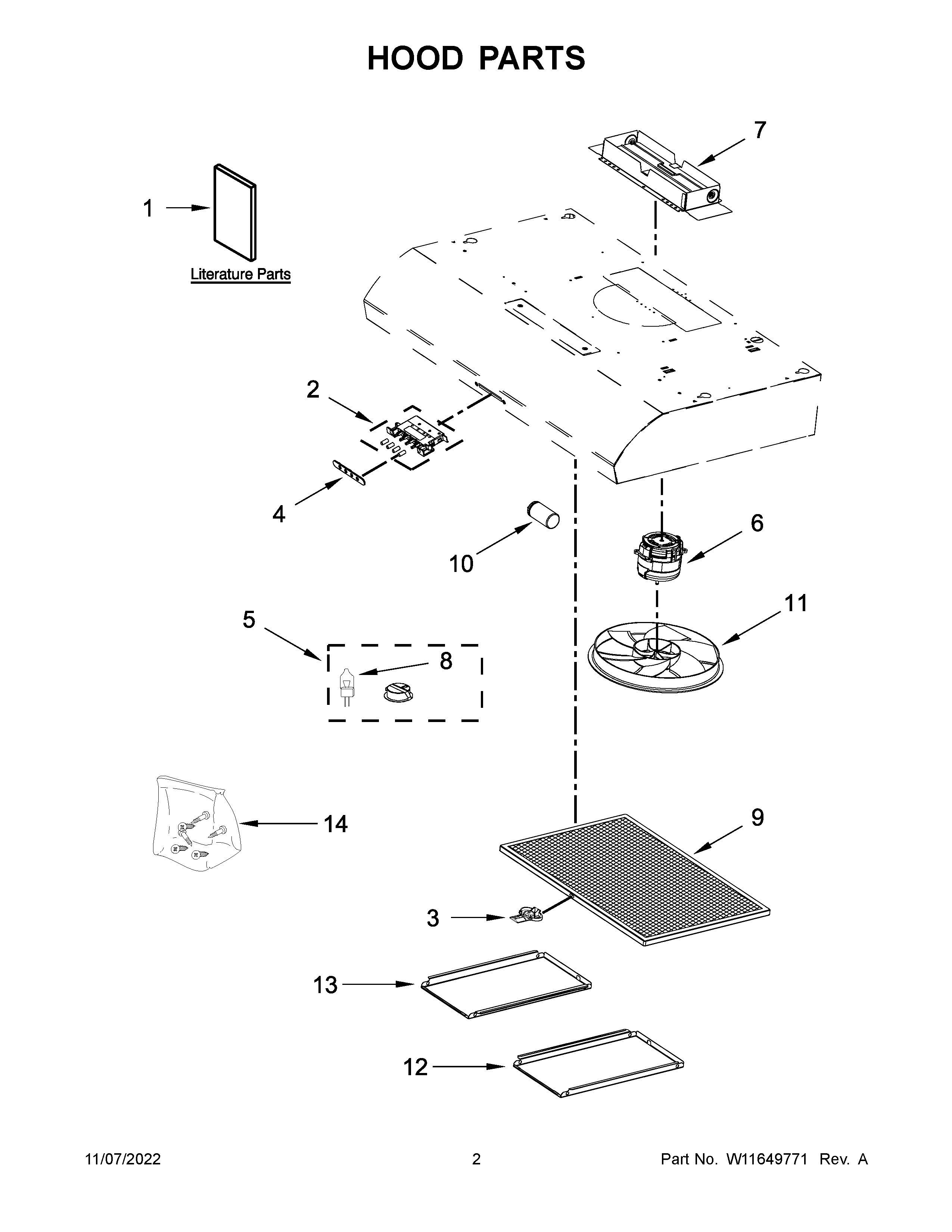

UXT5236BDS2 02 – HOOD PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	WPW10419516-includeCORE Whirlpool WPW10419516 Refrigerator Electronic Control Board + Core
3	W10416841 Whirlpool Filter Latch
4	W10416838 Whirlpool Cover Assembly
5	WPW10638164 Whirlpool Light Bulb
6	W10416839 Whirlpool Fan Motor Assembly
7	W11516461 Whirlpool Hood Damper
8	BULB-LIGHT
9	W11177751 Whirlpool Grease Filter
10	W10862083 Whirlpool Capacitor
11	W10416840 Whirlpool Fan Blade
12	W10416843 Whirlpool Bottom Panel
12A	W10419535 Whirlpool Bottom Panel
13	W10416844 Whirlpool Bottom Panel
13A	W10419532 Whirlpool Bottom Panel
14	W11176975 Whirlpool Hardware Assembly
