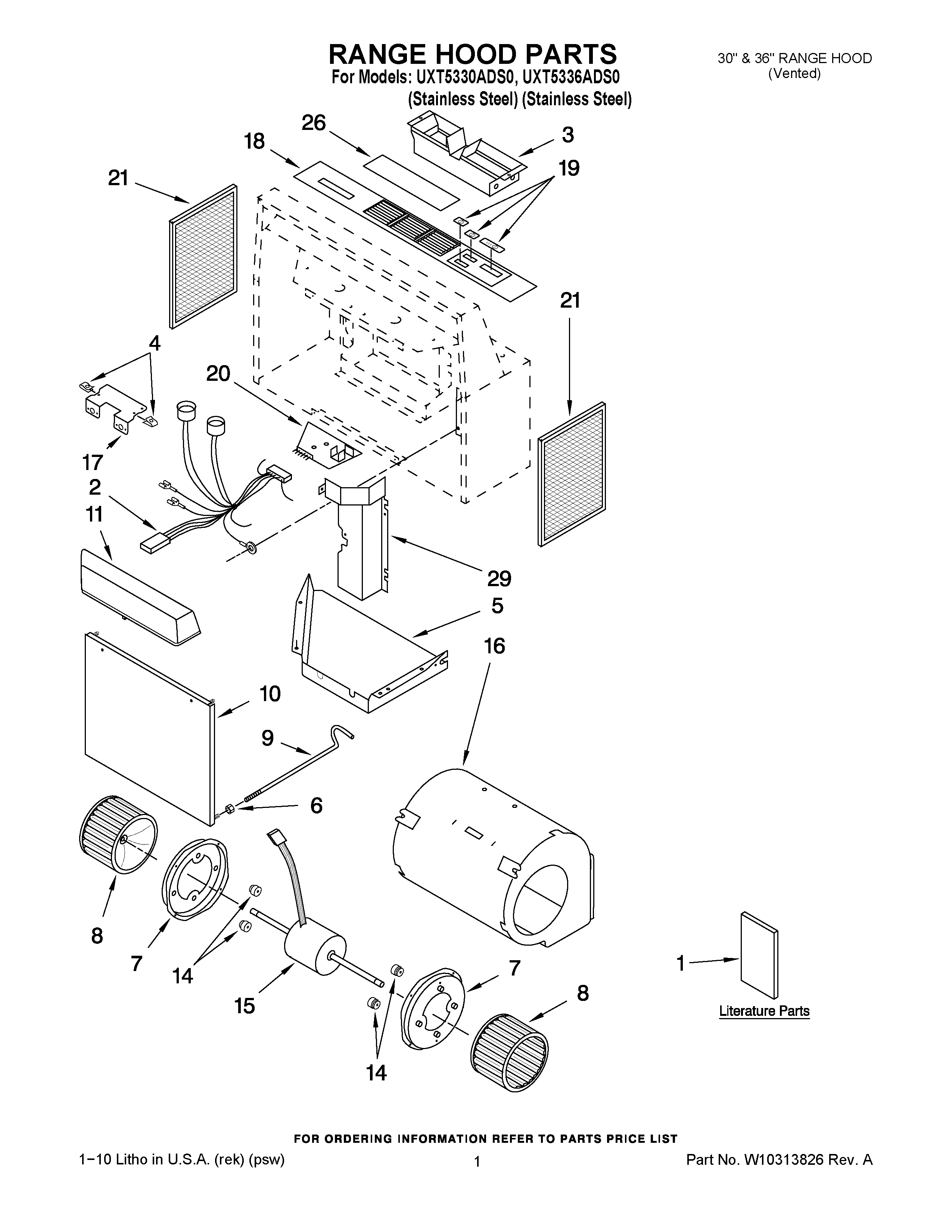

UXT5330ADS0 01 – RANGE HOOD PARTS

Products

PositionProduct
NI4396390 Whirlpool Filter
NI8190263 Whirlpool Blower Fan
1USE & CARE GUIDE
2Harness, Wire
3Damper Asy
4Nut – “U“ Type (2)
5Cover, Bulb Holder
6Nut, Ret. Rod (2)
7Motor Bracket (2)
8Blower, Wheel, Right
8Blower, Wheel, Left
9Rod, Retaining (2)
10Cover, Blower
11Lens, Light
14Mount, Motor (4)
15Motor, Blower
16Housing, Blower
17Thermostat Asy
18PANEL, CONTROL (36“)
18PANEL, CONTROL (30“)
19Knob, Control (Blower)
19Knob, Control (Light Switch)
19Knob, Control (Speed Control)
20Control, Elctronic
21Filter, Grease (2 Pack)
26Baffle
29Cover, Wiring Box
