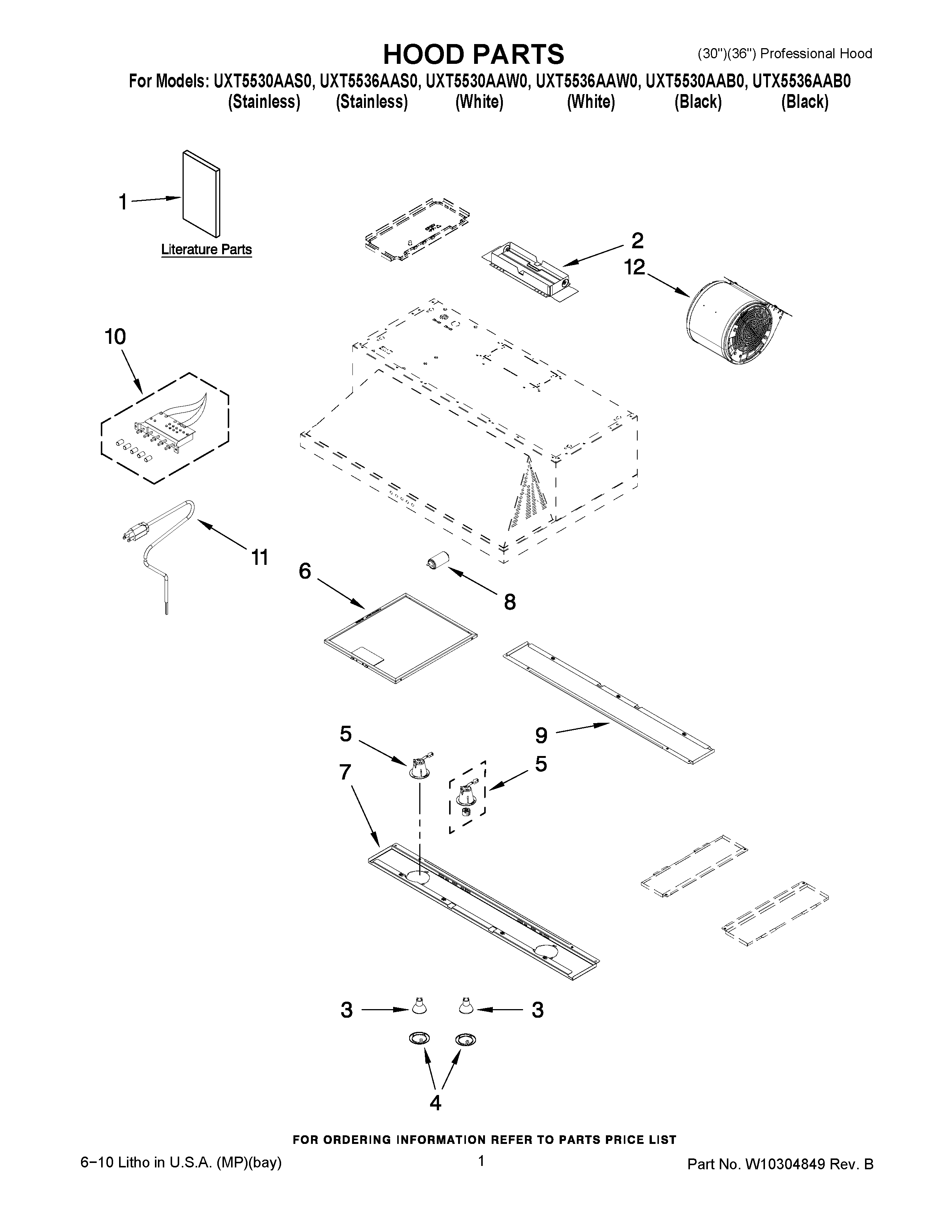

UXT5530AAS0 01 – HOOD PARTS

UXT5530AAS0 01 – HOOD PARTS

Written by

in

UXT5530AAS0 01 – HOOD PARTS

Products

PositionProduct
1W10291573 Whirlpool Hardware
2WPW10291572 Whirlpool Hood Damper Assembly
3WPW10291579 Whirlpool Light Bulb
4W10351924 Whirlpool Bezel
5W10295808 Whirlpool Socket
6W10169961A Whirlpool Grease Filter
7LIGHT SUPPORT-36“ (BLACK)
7LIGHT SUPPORT-30“ (WHITE)
7LIGHT SUPPORT-30“ (BLACK)
7LIGHT SUPPORT-36“ (STAINLESS)
7W10339249 Whirlpool Light Support
7W10291576 Whirlpool Support
8W10256657 Whirlpool Capacitor
9FILTER SUPPORT-36“ (WHITE)
9FILTER SUPPORT-30“ (WHITE)
9FILTER SUPPORT-30“ (STAINLESS)
9W10339242 Whirlpool Support
9W10339231 Whirlpool Support
9W10295818 Whirlpool Support
10CONTROL
11W11609489 Whirlpool Power Cord
12WPW10291577 Whirlpool Fan Motor
