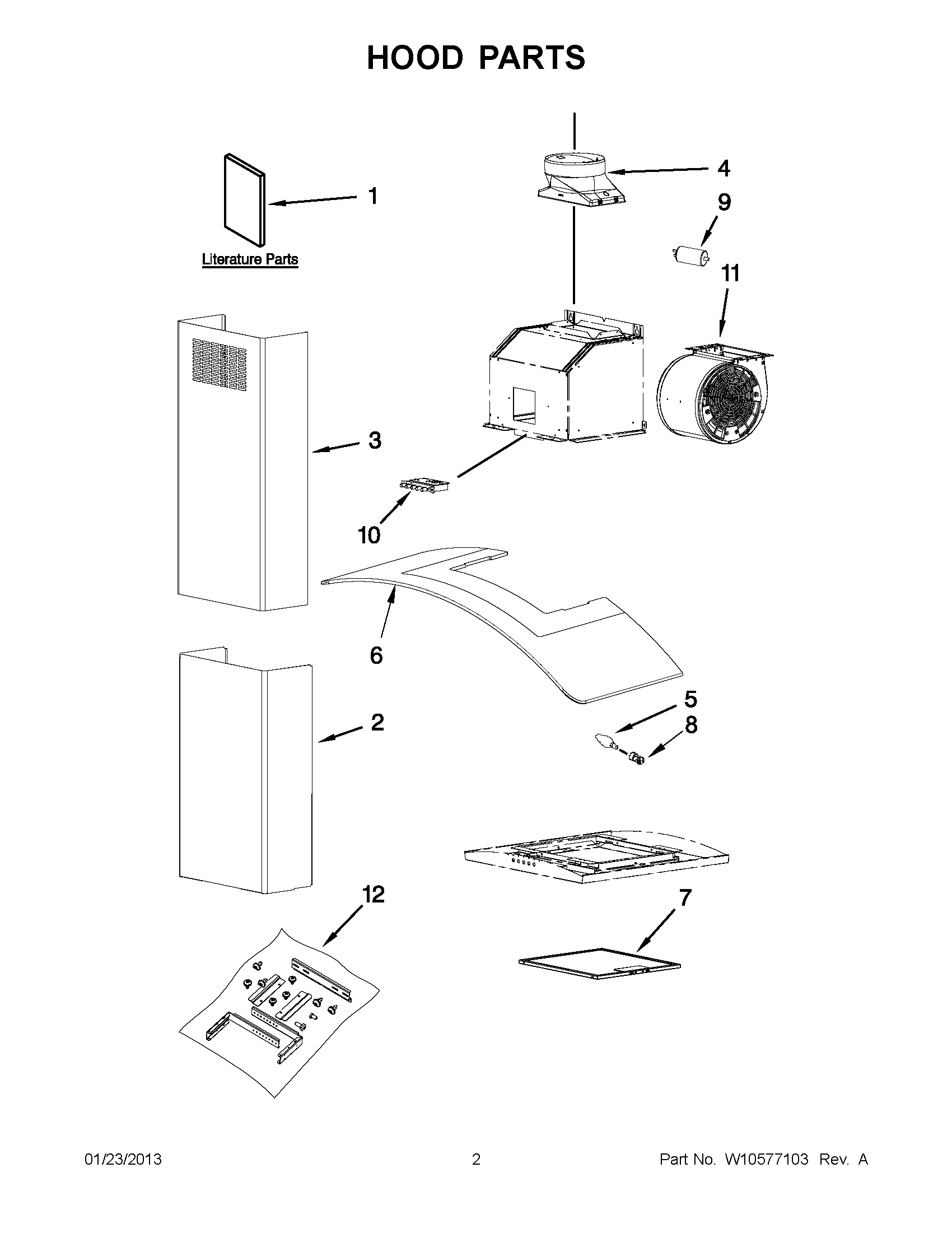

UXW6536BS0 01 – HOOD PARTS

UXW6536BS0 01 – HOOD PARTS

Written by

in

UXW6536BS0 01 – HOOD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11430939 Whirlpool Duct Kit
NIW10294735 Whirlpool Range Chimney Exhaust Duct
NIW10412939 Whirlpool Charcoal Filter Pack
NIW10446915 Whirlpool Range Hood Air Kit
1USE AND CARE GUIDE
3W11590865 Whirlpool Chimney
4WPW10313841 Whirlpool Hood Damper
5WP8190806 Whirlpool Appliance Light Bulb
6WPW10313843 Whirlpool Glass
6WPW10313844 Whirlpool Glass Panel
7W10169961A Whirlpool Grease Filter
88190797 Whirlpool Socket
9W10256657 Whirlpool Capacitor
10WPW10313838 Whirlpool Motor Control
11WPW10562742 Whirlpool Fan Motor
12WPW10576677 Whirlpool Hardware
