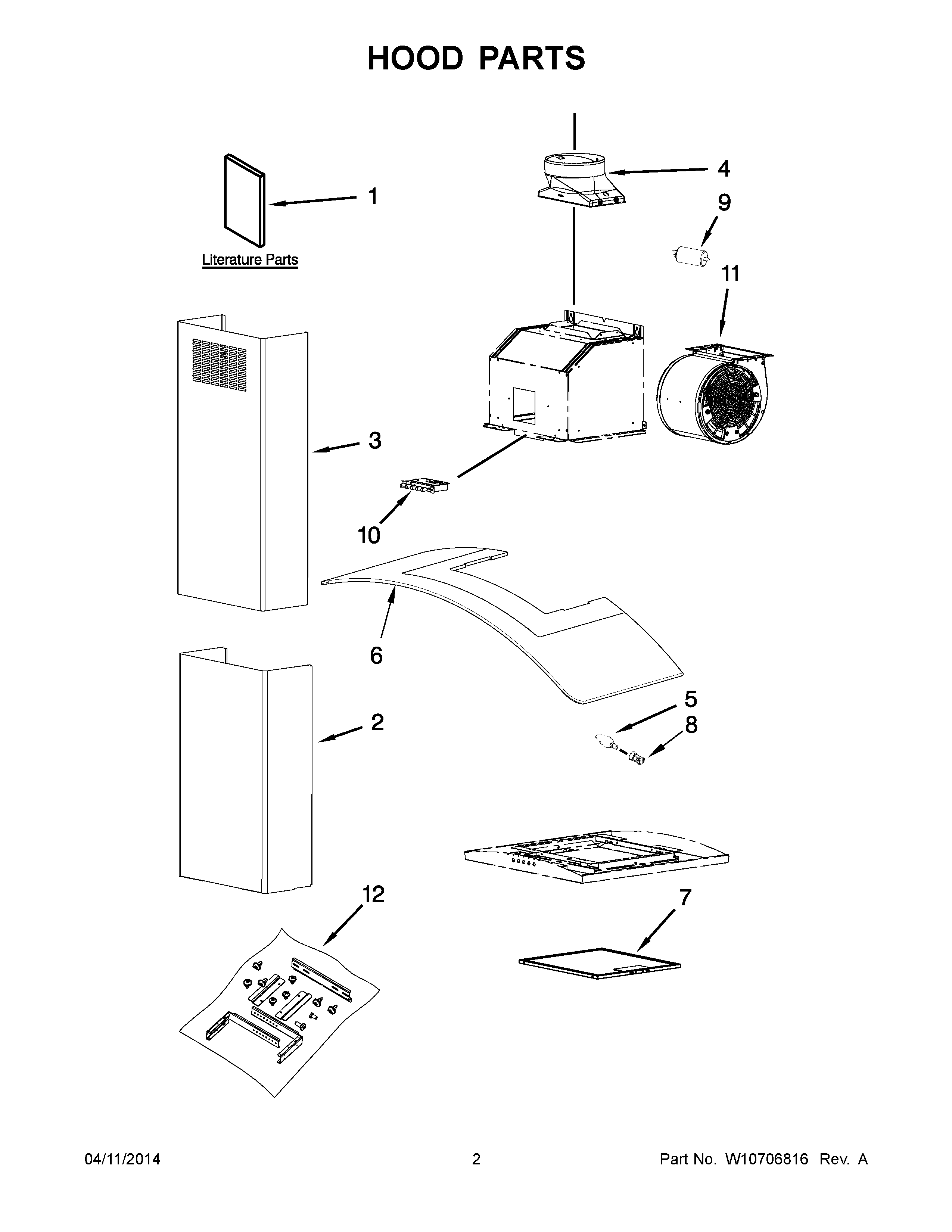

UXW6536BSS0 02 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11430939 Whirlpool Duct Kit
NI	W10294735 Whirlpool Range Chimney Exhaust Duct
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE AND CARE GUIDE
3	W11590865 Whirlpool Chimney
4	WPW10313841 Whirlpool Hood Damper
5	WP8190806 Whirlpool Appliance Light Bulb
6	WPW10313843 Whirlpool Glass
6	WPW10313844 Whirlpool Glass Panel
7	W10169961A Whirlpool Grease Filter
8	8190797 Whirlpool Socket
9	W10256657 Whirlpool Capacitor
10	WPW10313838 Whirlpool Motor Control
11	WPW10562742 Whirlpool Fan Motor
12	WPW10576677 Whirlpool Hardware
