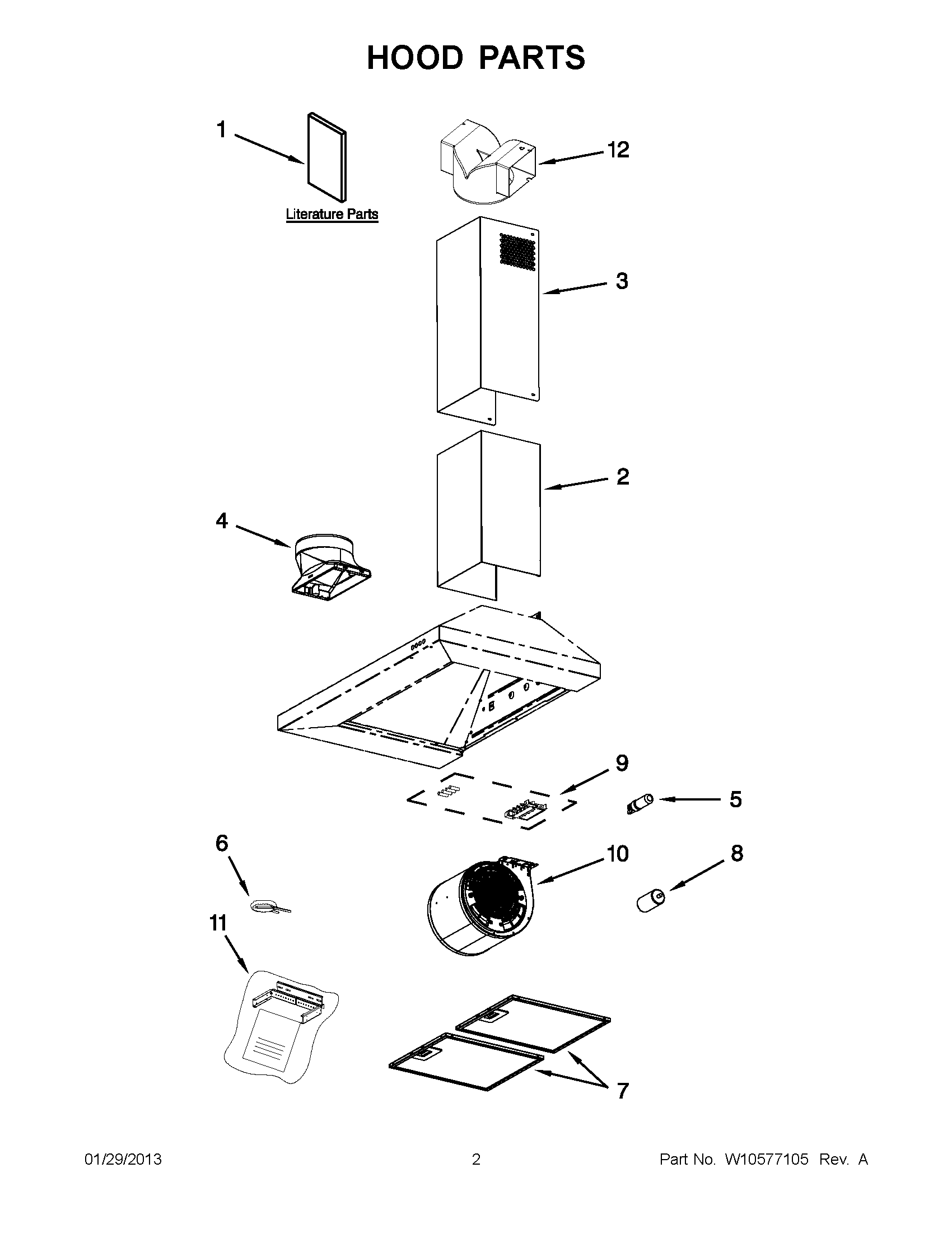

UXW7230BS0 01 – HOOD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11430940 Whirlpool Vent Kit Recirculating
NI	W10412939 Whirlpool Charcoal Filter Pack
NI	W10337357 Whirlpool Range Hood Chimney
NI	W10446915 Whirlpool Range Hood Air Kit
1	USE AND CARE GUIDE
2	W11417192 Whirlpool Duct Assembly
4	WPW10313841 Whirlpool Hood Damper
5	WP8190806 Whirlpool Appliance Light Bulb
6	W10427011 Whirlpool Filter
7	W10169961A Whirlpool Grease Filter
8	W10256657 Whirlpool Capacitor
9	WPW10350884 Whirlpool PB Switch
10	WPW10427013 Whirlpool Fan Blower
11	HARDWARE, INSTALLATION
12	W10427014 Whirlpool Air Duct Assembly
