UXW7230BSS0 02 – HOOD PARTS

UXW7230BSS0 02 – HOOD PARTS

Written by

in

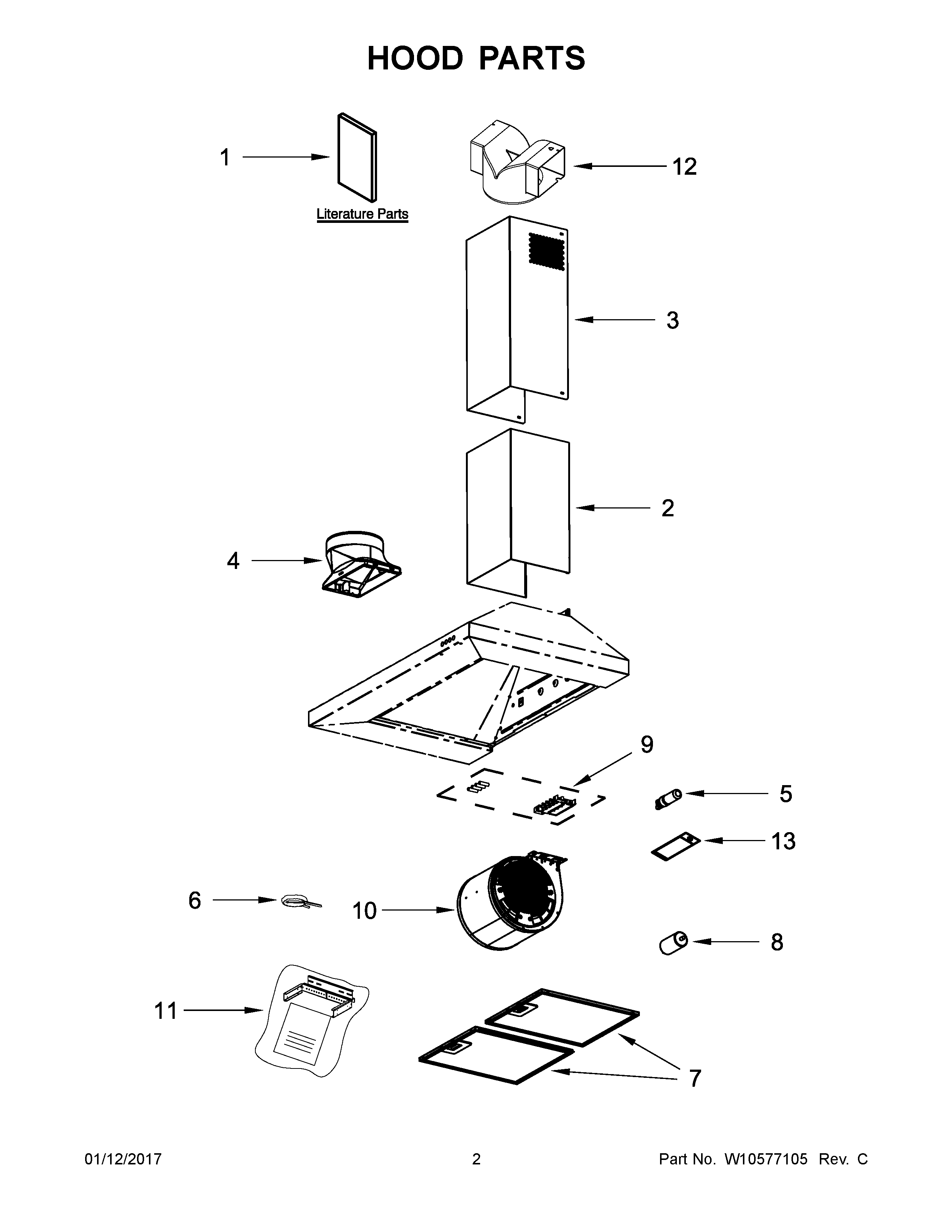

UXW7230BSS0 02 – HOOD PARTS

Products

PositionProduct
NIW10337357 Whirlpool Range Hood Chimney
NIW11430940 Whirlpool Vent Kit Recirculating
NIW10446915 Whirlpool Range Hood Air Kit
NIW10412939 Whirlpool Charcoal Filter Pack
1USE AND CARE GUIDE
2W11417192 Whirlpool Duct Assembly
4WPW10313841 Whirlpool Hood Damper
5WP8190806 Whirlpool Appliance Light Bulb
6W10427011 Whirlpool Filter
7W10169961A Whirlpool Grease Filter
8W10256657 Whirlpool Capacitor
9WPW10350884 Whirlpool PB Switch
10WPW10427013 Whirlpool Fan Blower
11HARDWARE, INSTALLATION
12W10427014 Whirlpool Air Duct Assembly
13COVER, LIGHT
