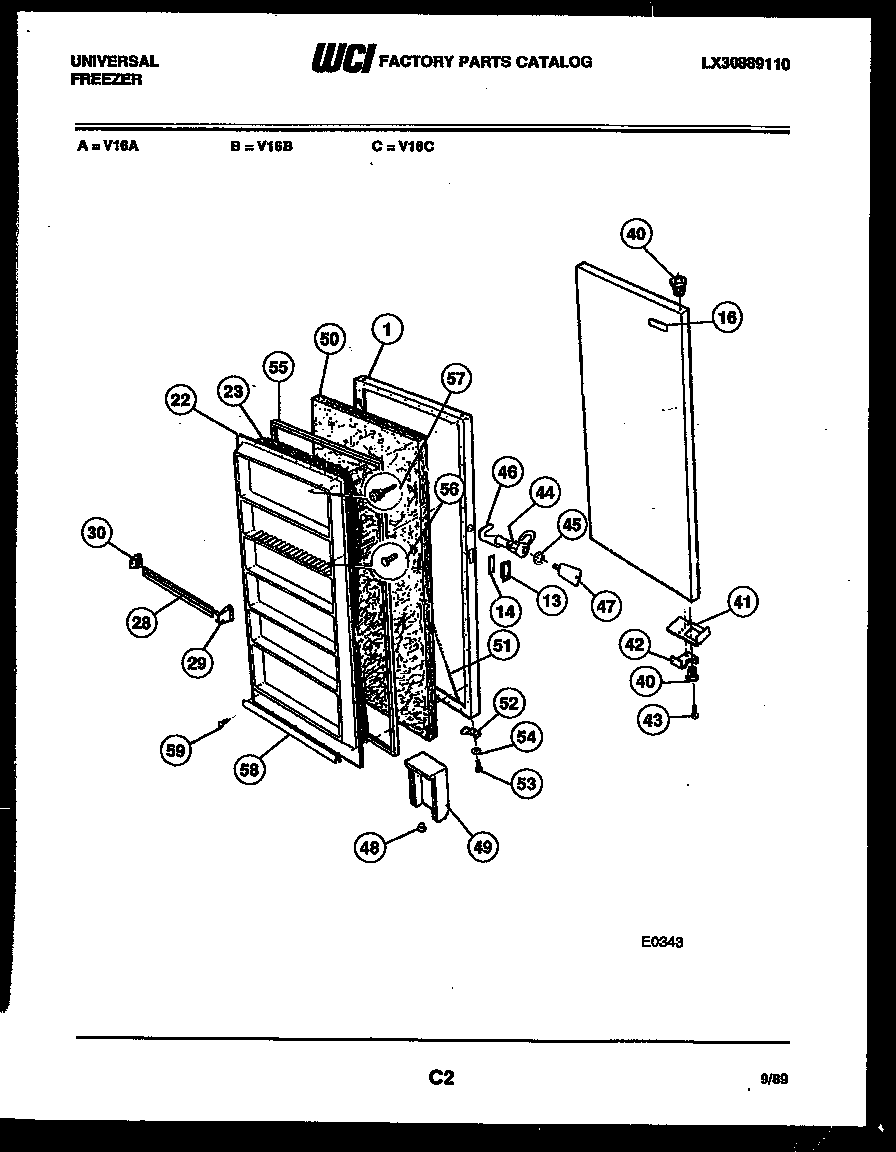

V16A 02 – DOOR PARTS

V16A 02 – DOOR PARTS

Written by

in

V16A 02 – DOOR PARTS

Products

PositionProduct
1DOOR SHELL
13WCI F129863
14WCI F112639
16NAMEPLATE ASSEMBLY
22INNER PANEL
23INSULATION
28WCI 3204182
295303925377 Frigidaire Refrigerator Endcap Kit R & L
40WCI F84893
41BRACKET-DOOR STOP
42WCI F124643
43SCREW-STOP
44WCI G190358
45WASHER
46WCI F124455
47297147700 Frigidaire Freezer Plastic Door Key
49AIR DUCT BREATHER
50WCI F116277
51WIRE ADJUSTING
52WCI F57880
53SCREW, BRACKET (2)
54WASHER BRACKET (2)
55WCI F129795
56216858001 Frigidaire Refrigerator Screw
57SCREW-PANEL
58WCI F99439
595303212828 Frigidaire Refrigerator Primary Clip
