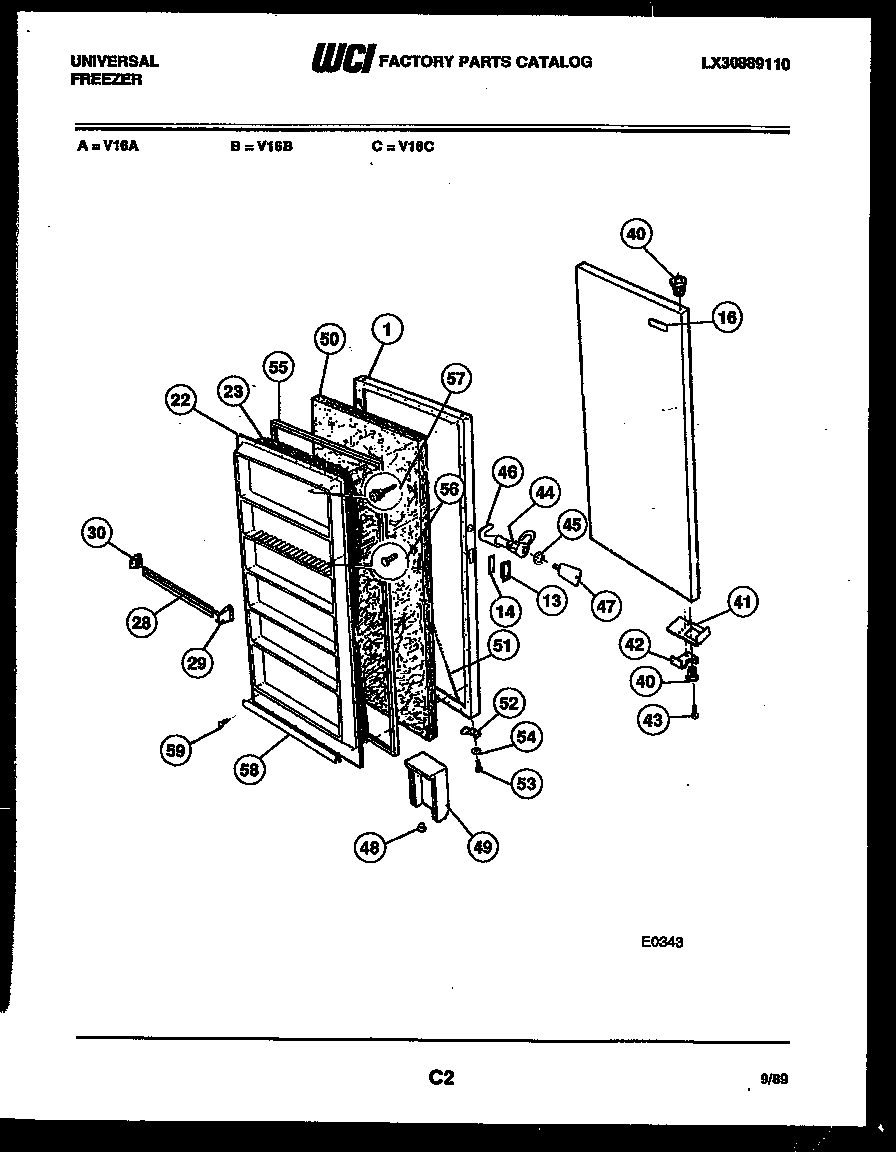

V16C 02 – DOOR PARTS

Products

Position	Product
1	DOOR SHELL
13	WCI F129863
14	WCI F112639
16	NAMEPLATE ASSEMBLY
22	INNER PANEL
23	INSULATION
28	WCI 3204182
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
40	WCI F84893
41	BRACKET-DOOR STOP
42	WCI F124643
43	SCREW-STOP
44	WCI G190358
45	WASHER
46	WCI F124455
47	297147700 Frigidaire Freezer Plastic Door Key
49	AIR DUCT BREATHER
50	WCI F116277
51	WIRE ADJUSTING
52	WCI F57880
53	SCREW, BRACKET (2)
54	WASHER BRACKET (2)
55	WCI F129795
56	216858001 Frigidaire Refrigerator Screw
57	SCREW-PANEL
58	WCI F99439
59	5303212828 Frigidaire Refrigerator Primary Clip
