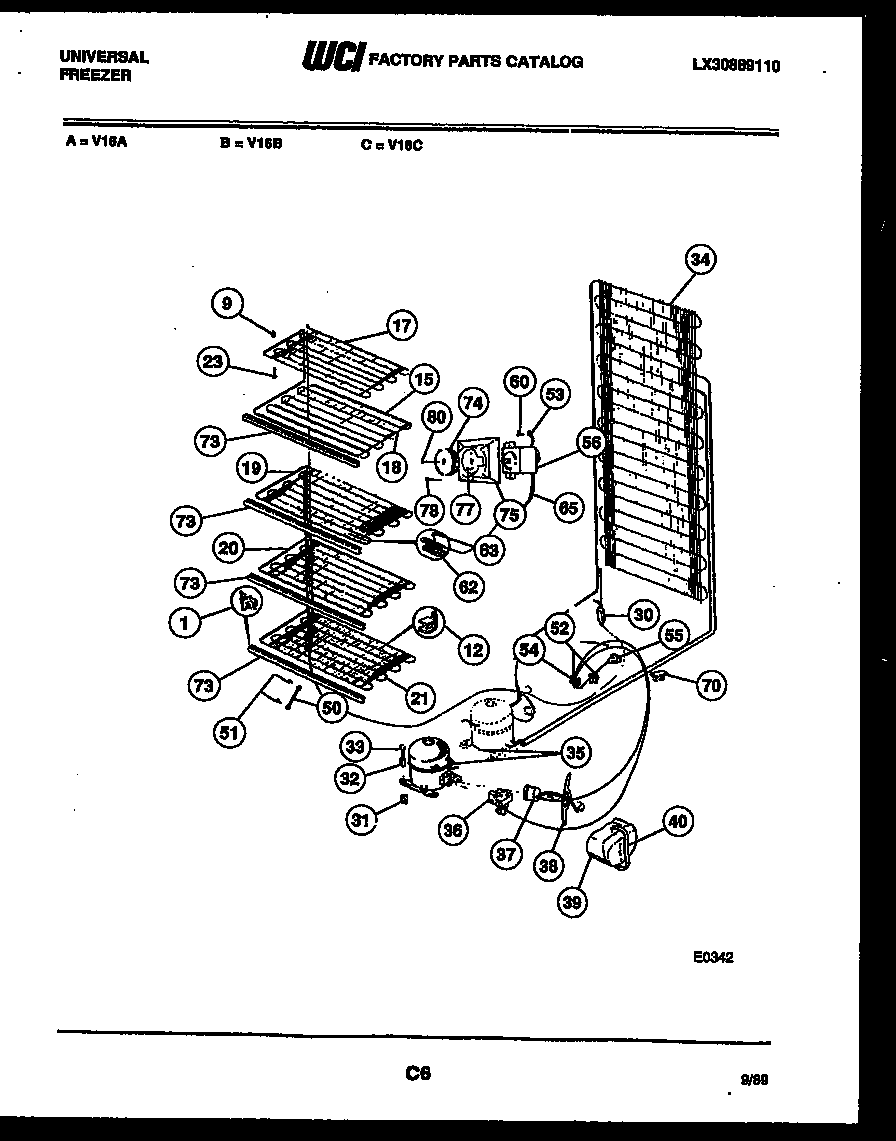

V16C 04 – SYSTEM AND ELECTRICAL PARTS

V16C 04 – SYSTEM AND ELECTRICAL PARTS

Written by

in

V16C 04 – SYSTEM AND ELECTRICAL PARTS

Products

PositionProduct
*44490KNOB, COLD CONTROL
1A297001500 Frigidaire Shelf Support
1297001600 Frigidaire Shelf Support
9SPCR-TOPGRID FRONT (2)
9ASPCR-TOP GRID REAR (NON-ILLUSTRATED)
12WCI F117447
15WCI F125249
17WCI F121179
18WCI F129785
19WCI F129807
21WCI F129786
23WCI F126260
305303305677 Frigidaire Replacement Filter Dryer Filters
31216498900 Frigidaire Refrigerator Grommet
32SLEEVE
33WCI F59211
345300123788 Frigidaire Refrigerator Condenser
35WCI F303450
36216594300 Frigidaire Refrigerator Starter
37WCI 3204568
405303006412 Frigidaire Refrigerator Cover Mounting Strap
50WCI F95424
51SCREW (5)
525304455846 Frigidaire Refrigerator Clamp
53WCI F125347
54WCI F128543
55CORD, SERVICE
56WCI F126974
60216036601 Frigidaire Refrigerator Screw
62WCI F96850
63SCREW-CLAMP
65TUBE
69RETAINER LEAD WIRE
70CLIP
73SHELF TRIM (3)
75WCI F128633
77SCREW CONTROL
78131420300 Frigidaire Screw
80SCREW KNOB
81216858001 Frigidaire Refrigerator Screw
