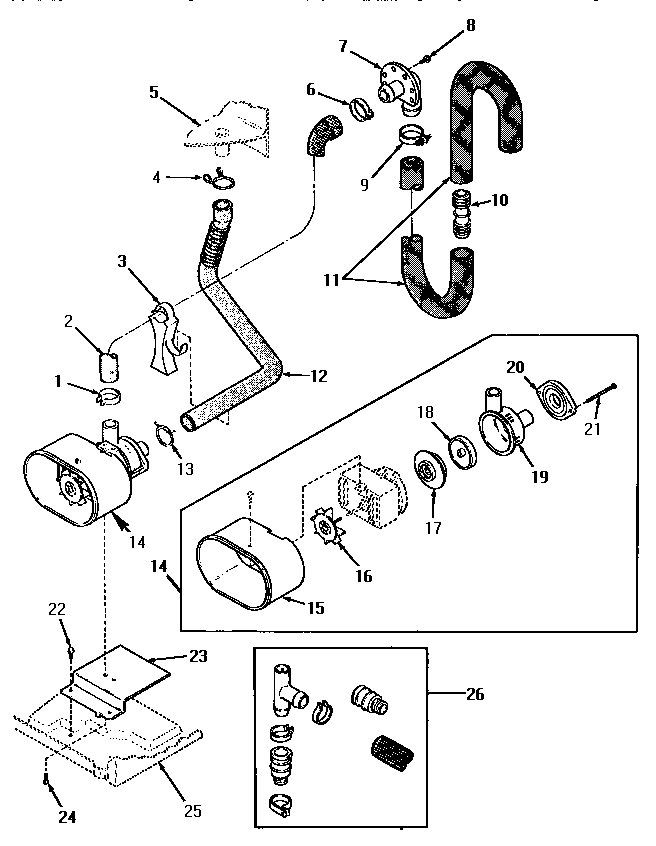

VA2013 12 – PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

VA2013 12 – PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

Written by

in

VA2013 12 – PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

Products

Position	Product
1	MAY 27151
2	MAY 30148
3	MAY 29284
4	MAY 13582
6	MAY 20391
7	MAY 23553
8	MAY 51784
9	WP285655 Whirlpool Hose Clamp
10	WP16272 Whirlpool Hose Coupling
11	MAY 28293
12	MAY 32026
13	MAY 29172
14	MAY 29715
15	MAY 29715G
16	MAY 29715F
17	MAY 29715A
18	MAY 29715B
19	MAY 29715C
20	MAY 29715D
21	MAY 29715E
22	MAY Y31645
23	MAY 32216
24	MAY 29706
25	SEE NOTE GROUND WIRE, GREEN
26	MAY 297P3
