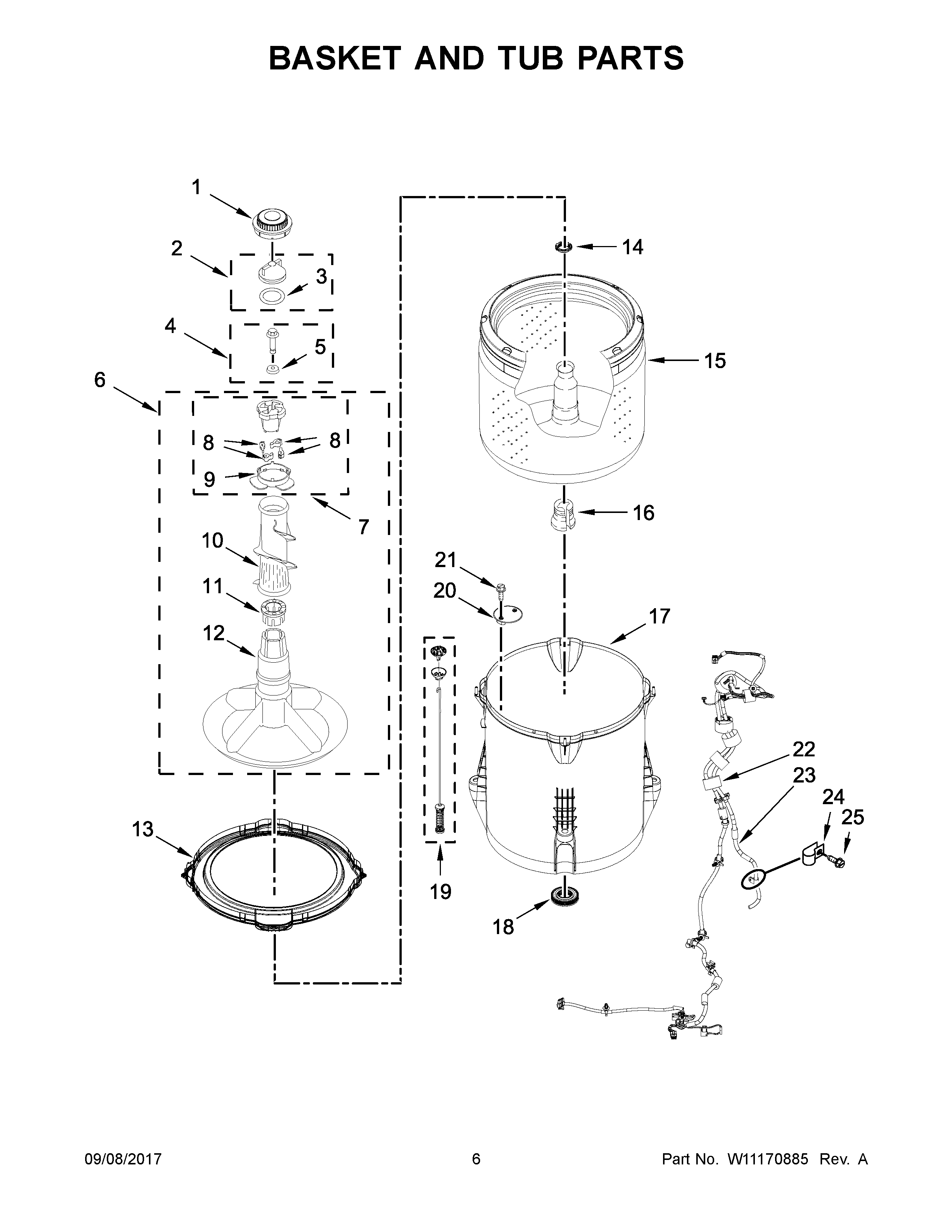

VAW3584GW1 04 – BASKET AND TUB PARTS

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WPW10074580 Whirlpool Agitator Inner Cap and Seal
3	WPW10072840 Whirlpool Seal Assembly
4	W10772621 Whirlpool Washplate Screw
5	WP3949550 Whirlpool Gasket Assembly
6	285565 Whirlpool Agitator Assembly
7	285809 Whirlpool Washer Agitator Cam Kit
8	80040 Whirlpool Washer Agitator Dog Kit
9	WP3952374 Whirlpool Bearing
10	WP3363003 Whirlpool Agitator Mover
11	WP3951608 Whirlpool Washer Agitator Thrust Spacer
12	AGITATOR
13	WPW10531289 Whirlpool Tub Ring
14	WP21366 Whirlpool Spanner Nut
15	W10554251 Whirlpool Basket
16	WP389140 Whirlpool Drive Block or Bell
17	W10371566 Whirlpool Outer Tub
18	W10324647 Whirlpool Seal Tub
19	W10780045 Whirlpool Suspension Rod
20	WPW10215093 Whirlpool Filter
21	WP8533928 Whirlpool Refrigerator Screw
22	W11448788 Whirlpool Wire Harness
23	W10846364 Whirlpool Hose
24	W10005430 Whirlpool Clamp
25	WPW10109200 Whirlpool Screw
