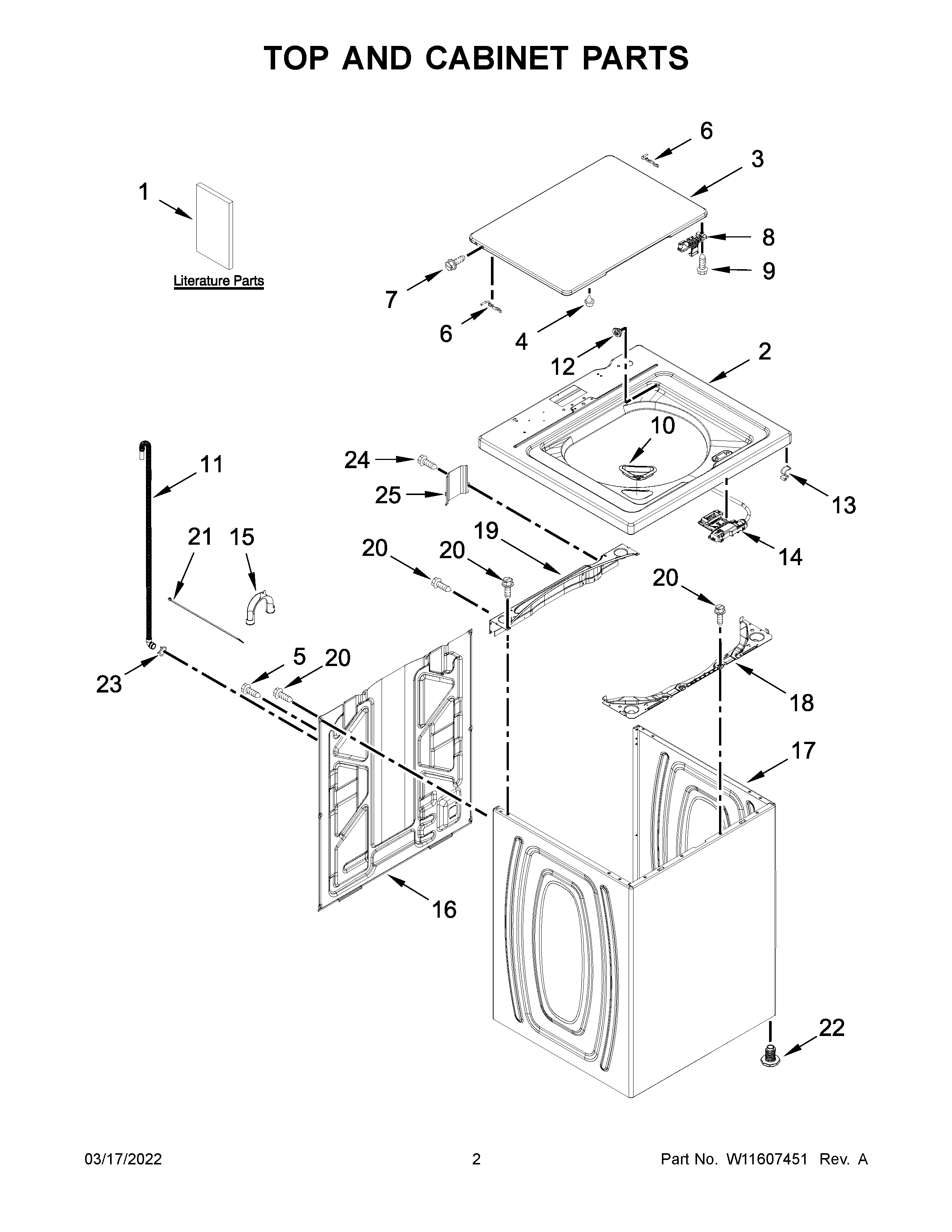

VAW3584GW2 02 – TOP AND CABINET PARTS

VAW3584GW2 02 – TOP AND CABINET PARTS

Written by

in

VAW3584GW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1DQUICK START GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
2W11026446 Whirlpool Top Assembly
3WPW10338625 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
7SCREW
8W10837741 Whirlpool Washer Lid Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11W11244231 Whirlpool Hose
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH-WASHER LID
15WPW10280024 Whirlpool Retainer
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11695476 Whirlpool Brace Support
19W11712680 Whirlpool Commercial Part Brace
20W11568617 Whirlpool Screw
21WPW10339879 Whirlpool Wire Tie
22WPW10687506 Whirlpool Washer Leveling Leg
23WP356138 Whirlpool Hose Clamp
24W10846509 Whirlpool Screw
25W10676061 Whirlpool Cover Assembly
